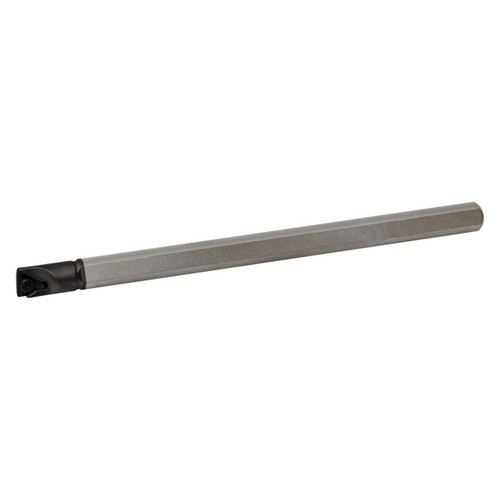

Kyocera Precision Tools THC14619 | C060XSWUBR06070EZP 0.2362" Diameter Right-Hand Steel and Carbide Indexable Boring Bar

$348.38 $289.16
(You save $59.22)
Brand:
Kyocera Precision Tools
Toolholder Style:
C...SWUB-EZP
Series:
EZB;Minimum Bore Diameter (Decimal Inch)=0.2756"
Minimum Bore Diameter (mm):
7.00mm
Hand of Holder:
Right-Hand
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (mm):
6.00mm
Through Coolant:
No
interval quantity:
1
SKU:
23230473
UPC:
Weight:
0.12 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Indexable small diameter boring bars
  • High precision solid bars with the convenience of indexable inserts for reduced machining costs
  • The EZ adjust structure features much lower mounting times compared to conventional boring bars
  • The EZ adjust structure features higher repeatability and accuracy compared with conventional boring bars
  • 0 (Axial), -13 (Radial) Rake angle EZ bar plus boring bar

Product Specifications
EDP NumberTHC14619
Shank Width (Decimal Inch)0.4724"
Connection Diameter (Decimal Inch)0.2362"
Connection Diameter (mm)6.00mm
Minimum Bore Diameter (Decimal Inch)0.2756"
Minimum Bore Diameter (mm)7.00mm
Shank Height (Decimal Inch)0.2244"
Shank Height (mm)5.70mm
Tool Entering Angle ( Degree)93 Degree
ApplicationBoring
Bar TypeCarbide Shank
HandRight Hand
Insert Holding MethodScrew
Insert Shape80 Degree Trigon
MaterialSteel/Carbide
RakePositive
