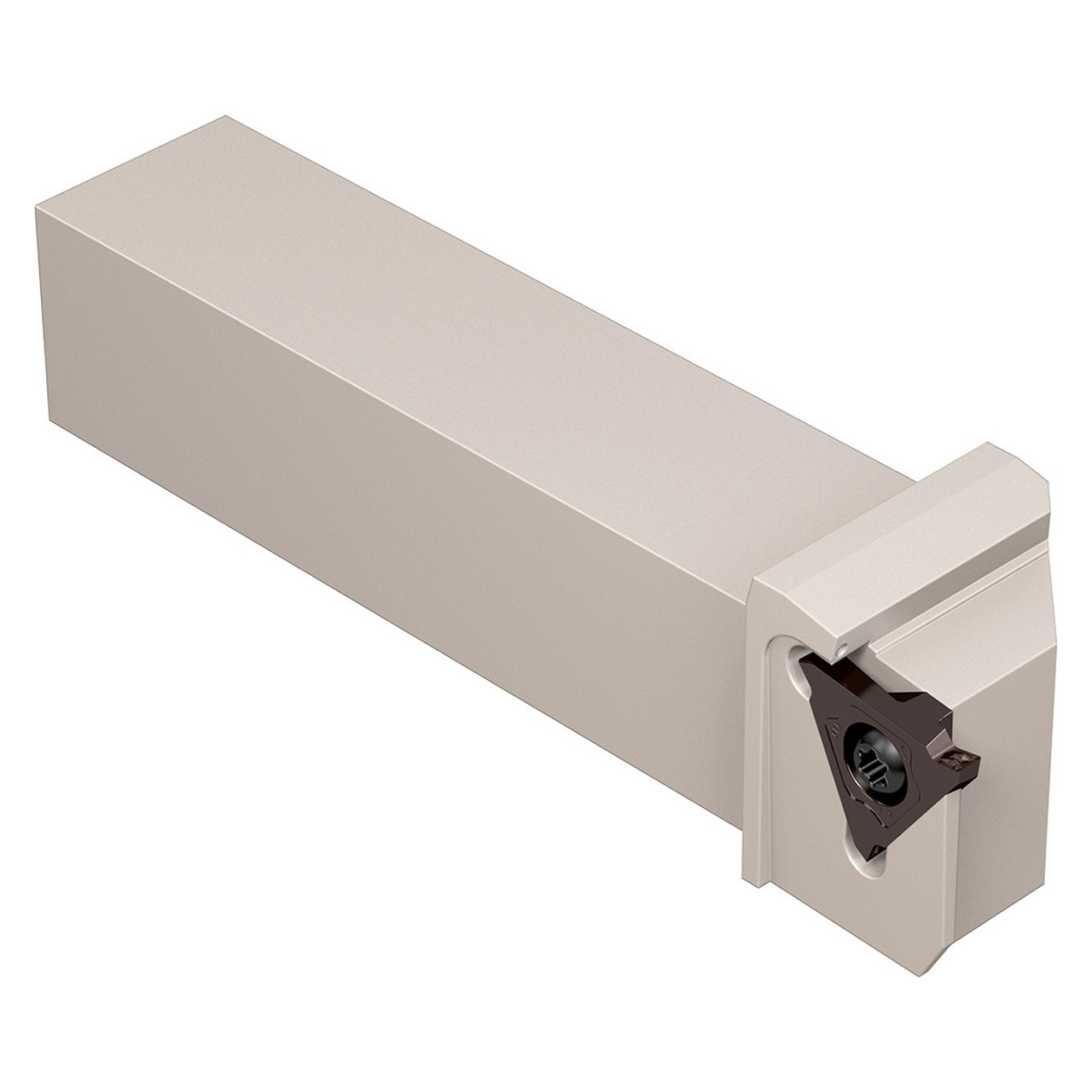

Kyocera Precision Tools THC14880 | KGBAL2020K2235JCT 0.7874" Shank Width x 0.7874" Shank Height Steel External Grooving Toolholder

$270.22 $224.28
(You save $45.94)
Brand:
Kyocera Precision Tools
Toolholder Type:
External Grooving
Hand of Holder:
Left-Hand
Maximum Depth of Cut (Decimal Inch):
0.2165"
Maximum Depth of Cut (mm):
5.50mm
Toolholder Style:
KGBA
Shank Height (Decimal Inch):
0.7874"
Shank Height (mm):
20.00mm
Shank Width/Diameter (Decimal Inch):
0.7874"
Shank Width/Diameter (mm):
20.00mm
Series:
GBAJ;Through Coolant=Yes"
interval quantity:
1
SKU:
23230713
UPC:
Weight:
0.92 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Features:

  • Coolant is discharged to the cutting edge and prevents coolant stream spreading which slows the coolant flow
  • Sufficient coolant between the chipbreaker and the chips for table chip curls and sufficient cooling of the insert
  • Internal high pressure coolant system provides better corner wear resistance
  • Compatible with GBA43L inserts

Product Specifications
EDP NumberTHC14880
Shank Width (Decimal Inch)0.7874"
Shank Width (mm)20.00mm
Max Depth of Cut (Decimal Inch)0.2165"
Max Depth of Cut (mm)5.50mm
Cutting Width (Decimal Inch)0.1378 - 0.1890"
Cutting Width (mm)3.50 - 4.80mm
Cutting Width Minimum (Decimal Inch)0.1378"
Cutting Width Minimum (mm)3.50mm
Cutting Width Maximum (Decimal Inch)0.1890"
Cutting Width Maximum (mm)4.80mm
Shank Height (Decimal Inch)0.7874"
Shank Height (mm)20.00mm
ApplicationShallow Grooving
Coolant Through (Yes/No)Yes
Grooving TypeExternal Grooving
HandLeft Hand
Insert Holding MethodScrew
MaterialSteel

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
