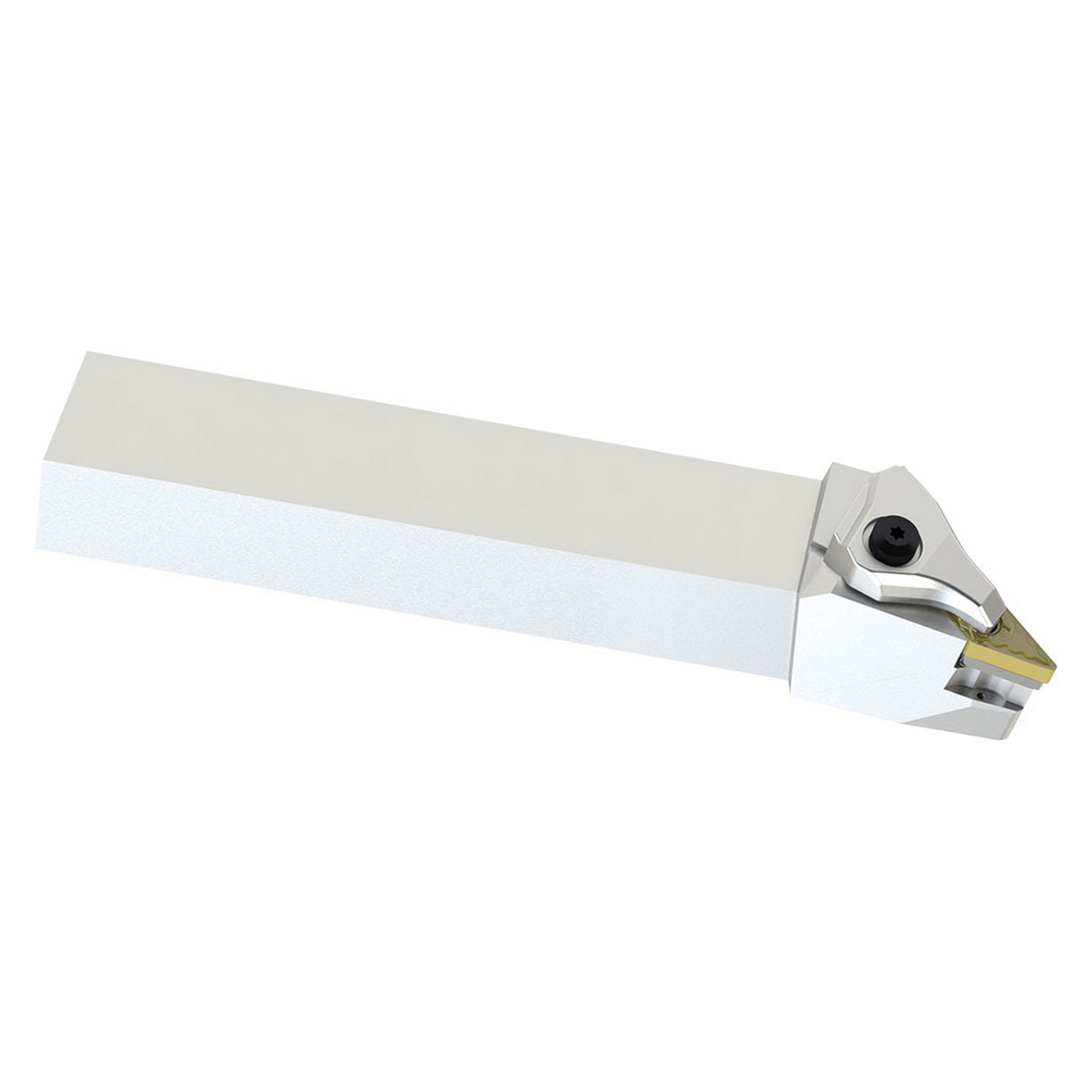

Kyocera Precision Tools THC14948 | DVLNL163DJCT 1.0000" Shank Width x 1.0000" Shank Height Steel Indexable Turning Toolholder

$280.07
Brand:
Kyocera Precision Tools
Hand of Holder:
Left-Hand
Toolholder Style:
DVLN-JCT
Rake:
Negative;Series=DBCJ
Lead Angle:
95°
Shank Width (Decimal Inch):
1.0000"
Shank Width (mm):
25.40mm
Shank Height (Decimal Inch):
1.0000"
Shank Height (mm):
25.40mm
SKU:
23230777
Weight:
1.85 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Application: External turning, copying
  • Double clamp insert holding design
  • Jet coolant-through system
  • Discharges coolant in two directions to improve chip control and lengthen tool life for a wide variety of workpieces including steel, hardened steel and difficult-to-cut material
  • Compatible with Left-Hand or neutral VN..33 style inserts
    •
    Product Specifications
    EDP NumberTHC14948
    Shank Width (mm)25.40mm
    Shank Height (Decimal Inch)1.0000"
    Shank Height (mm)25.40mm
    Tool Entering Angle ( Degree)95 Degree
    ApplicationCopying | External Turning
    Coolant Through (Yes/No)Yes
    HandLeft Hand
    Insert Holding MethodDouble Clamp
    Insert Shape35 Degree Diamond
    MaterialSteel

    Warning:

    This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

    For more information, visit www.P65Warnings.ca.gov

    Brand:
    Kyocera Precision Tools
    Hand of Holder:
    Left-Hand
    Toolholder Style:
    DVLN-JCT
    Rake:
    Negative;Series=DBCJ
    Lead Angle:
    95°
    Shank Width (Decimal Inch):
    1.0000"
    Shank Width (mm):
    25.40mm
    Shank Height (Decimal Inch):
    1.0000"
    Shank Height (mm):
    25.40mm
