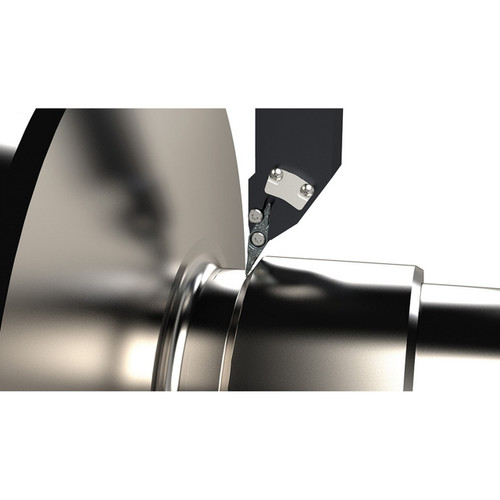

Kyocera Precision Tools THC14979 | SZVBN2525M13C 0.984" Shank Width x 0.984" Shank Height Steel Indexable Turning Toolholder

SKU: 23230802 Weight: 1.48 LBS Minimum Purchase: 1 unit
UPC:
$188.71 $156.63
(You save $32.08)
Shipping: Calculated at Checkout

About This Item

Features:

  • Newly developed self-clamping mechanism achieves a higher rigidity
  • Provides high quality and stable machining in various machining applications
  • Supplies coolant directly to the cutting edge and provides improved chip evacuation and long tool life (Fine adjustments to the coolant direction are possible)
  • Compatible with Right-Hand or Neutral ZBMT13T3 style inserts

Product Specifications
EDP NumberTHC14979
Shank Width (mm)25.00mm
Shank Height (Decimal Inch)0.9843"
Shank Height (mm)25.00mm
Tool Entering Angle ( Degree)75 Degree
ApplicationCopying | External Turning
Coolant Through (Yes/No)Yes
HandNeutral
Insert Holding MethodScrew
Insert Shape25 Degree Diamond
MaterialSteel
RakePositive
