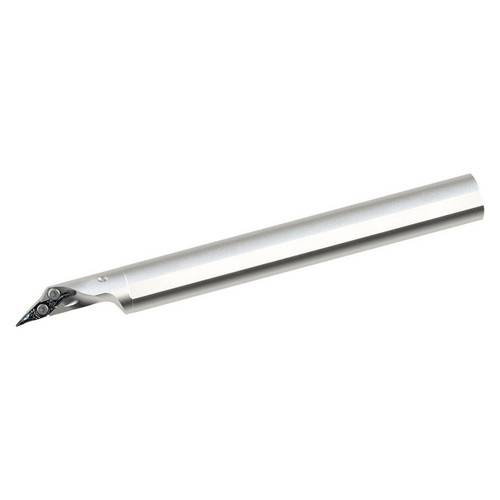

Features:
- 25 Degree insert profiling tools
- Newly developed self-clamping mechanism achieves a higher rigidity
- Provides high quality and stable machining in various machining applications
- Unique holder body design with coolant-through technology
- Unique design holds insert at 2 points
Product Specifications
| EDP Number | THC14992 |
| Connection Diameter (Decimal Inch) | 0.9843" |
| Connection Diameter (mm) | 25.00mm |
| Minimum Bore Diameter (Decimal Inch) | 1.1811" |
| Minimum Bore Diameter (mm) | 30.00mm |
| Shank Height (Decimal Inch) | 0.9449" |
| Shank Height (mm) | 24.00mm |
| Tool Entering Angle ( Degree) | 45 Degree |
| Usable Length (Decimal Inch) | 1.7795" |
| Usable Length (mm) | 45.20mm |
| Application | Copying | Internal Facing | Undercutting |
| Bar Type | Excellent Bar |
| Coolant Through (Yes/No) | Yes |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Insert Shape | 25 Degree Diamond |
| Material | Steel |
| Rake | Positive |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Toolholder Style:
A…SZXB-AE
Series:
DYNB;Minimum Bore Diameter (Decimal Inch)=1.1811"""
Minimum Bore Diameter (mm):
30.00mm
Hand of Holder:
Right-Hand
Shank Diameter (Decimal Inch):
0.9843"
Shank Diameter (mm):
25.00mm
Through Coolant:
Yes
