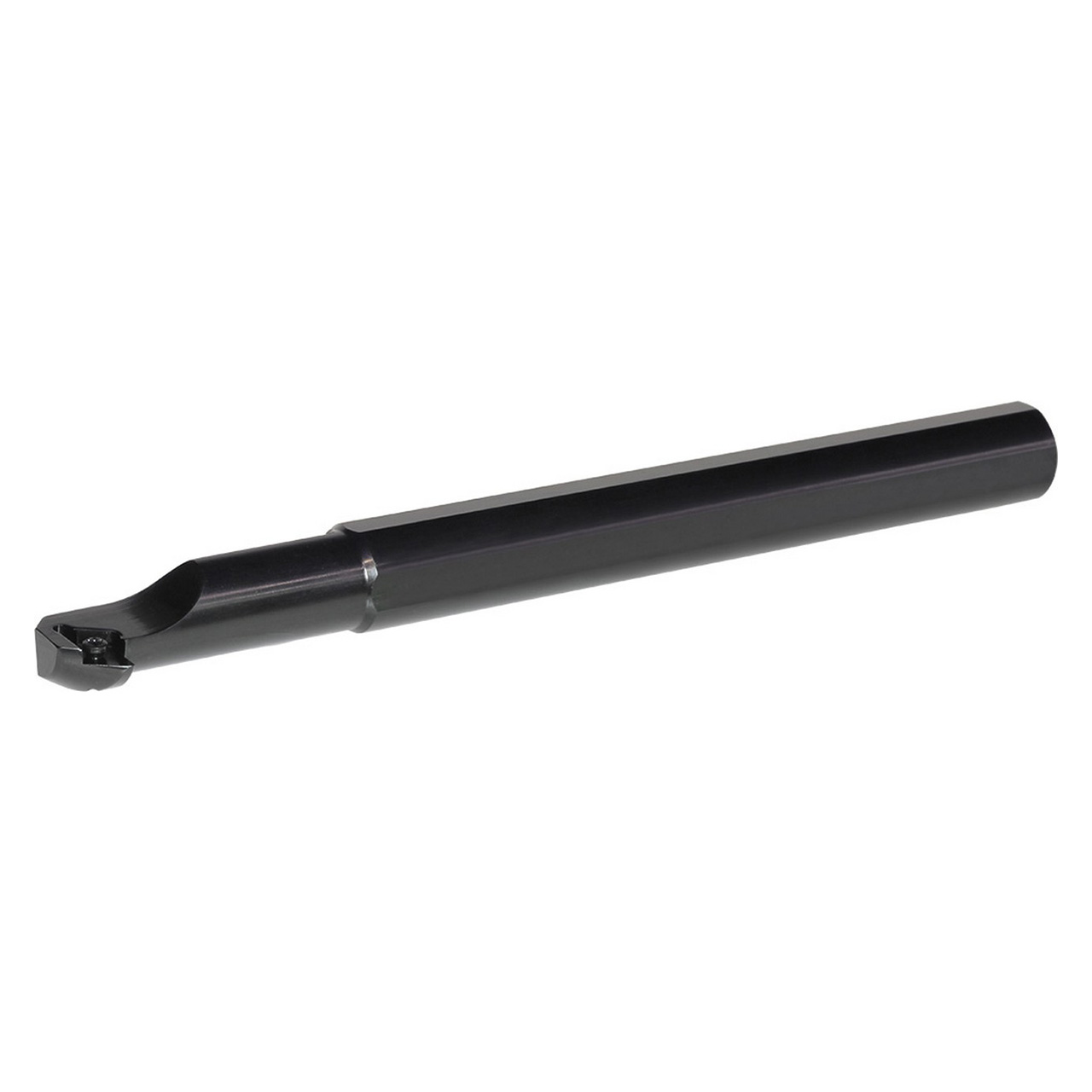

Features:
- ~3 (Axial), -5 (Radial) Rake angle general purpose boring bar
- Great for back boring applications
- Compatible with Right-Hand DCGT325, DCMX325, DCMT325, DCET325, DCMW325 inserts
Product Specifications
| EDP Number | THC89287 |
| Connection Diameter (Decimal Inch) | 1.0000" |
| Connection Diameter (mm) | 25.40mm |
| Minimum Bore Diameter (Decimal Inch) | 0.9843" |
| Minimum Bore Diameter (mm) | 25.00mm |
| Shank Height (Decimal Inch) | 0.9598" |
| Shank Height (mm) | 24.38mm |
| Tool Entering Angle ( Degree) | 93 Degree |
| Application | Back Boring |
| Bar Type | Steel Shank |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Insert Shape | 55 Degree Diamond |
| Material | Steel |
| Rake | Positive |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Toolholder Style:
S...SDZC
Series:
GPBB;Minimum Bore Diameter (Decimal Inch)=0.9843"""
Minimum Bore Diameter (mm):
25.00mm
Hand of Holder:
Right-Hand
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.40mm
Through Coolant:
No
