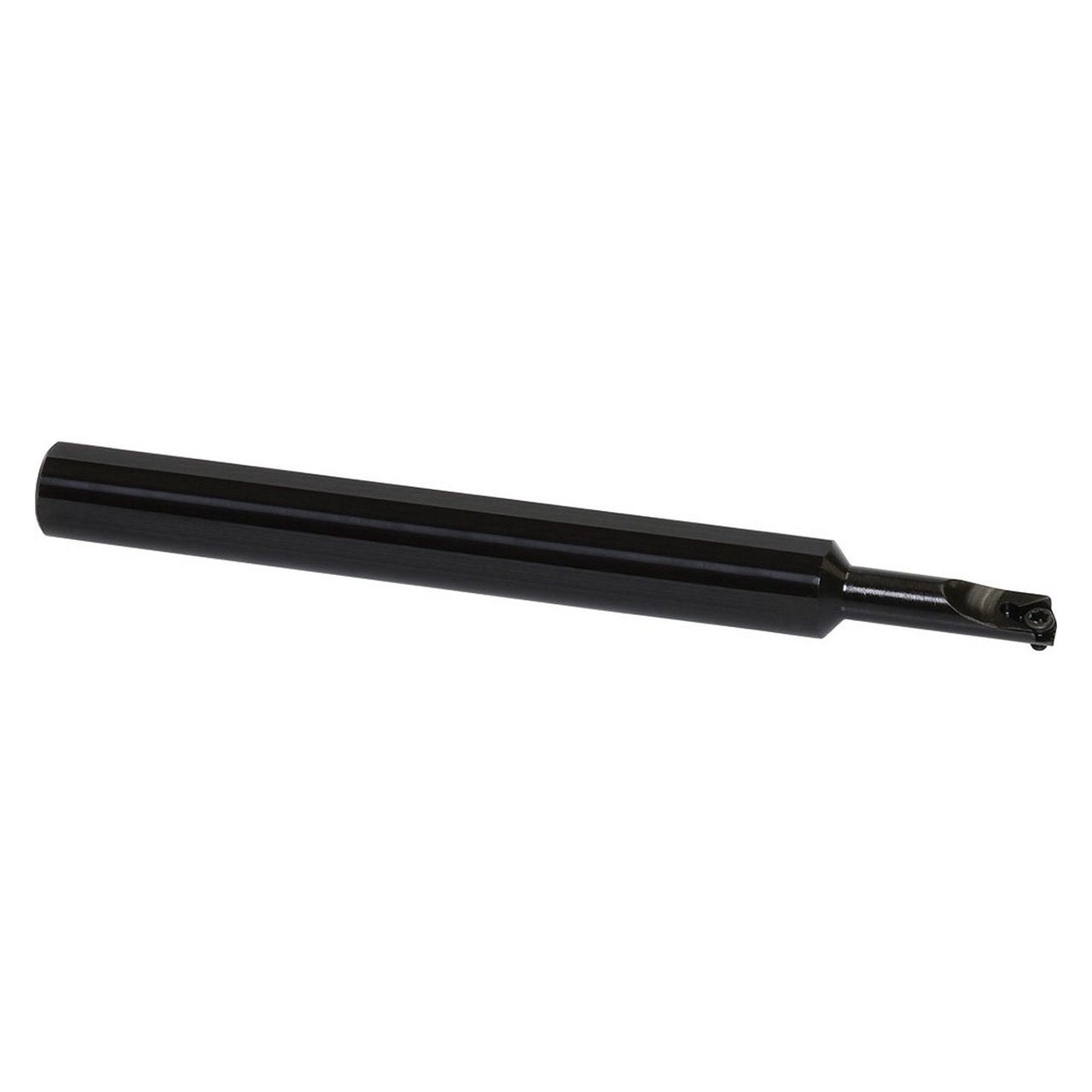

Kyocera Precision Tools THC89320 | S06HSWUBL12 0.3752" Diameter Left-Hand Steel Indexable Boring Bar

$96.45
Brand:
Kyocera Precision Tools
Toolholder Style:
S...SWUB
Series:
GPBB;Minimum Bore Diameter (Decimal Inch)=0.2402"""
Minimum Bore Diameter (mm):
6.10mm
Hand of Holder:
Left-Hand
Shank Diameter (Decimal Inch):
0.3752"
Shank Diameter (mm):
9.53mm
Through Coolant:
No
SKU:
23231014
Weight:
0.15 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • ~0 (Axial), -15 (Radial) Rake angle general purpose boring bar
  • Great for boring, internal facing applications
  • Compatible with Right-Hand WBMT121, WBGT121, WBGW121 inserts

Product Specifications
EDP NumberTHC89320
Connection Diameter (Decimal Inch)0.3752"
Connection Diameter (mm)9.53mm
Minimum Bore Diameter (Decimal Inch)0.2402"
Minimum Bore Diameter (mm)6.10mm
Shank Height (Decimal Inch)0.3559"
Shank Height (mm)9.04mm
Tool Entering Angle ( Degree)93 Degree
ApplicationBoring | Internal Facing
Bar TypeSteel Shank
HandLeft Hand
Insert Holding MethodScrew
Insert Shape80 Degree Trigon
MaterialSteel
RakePositive
