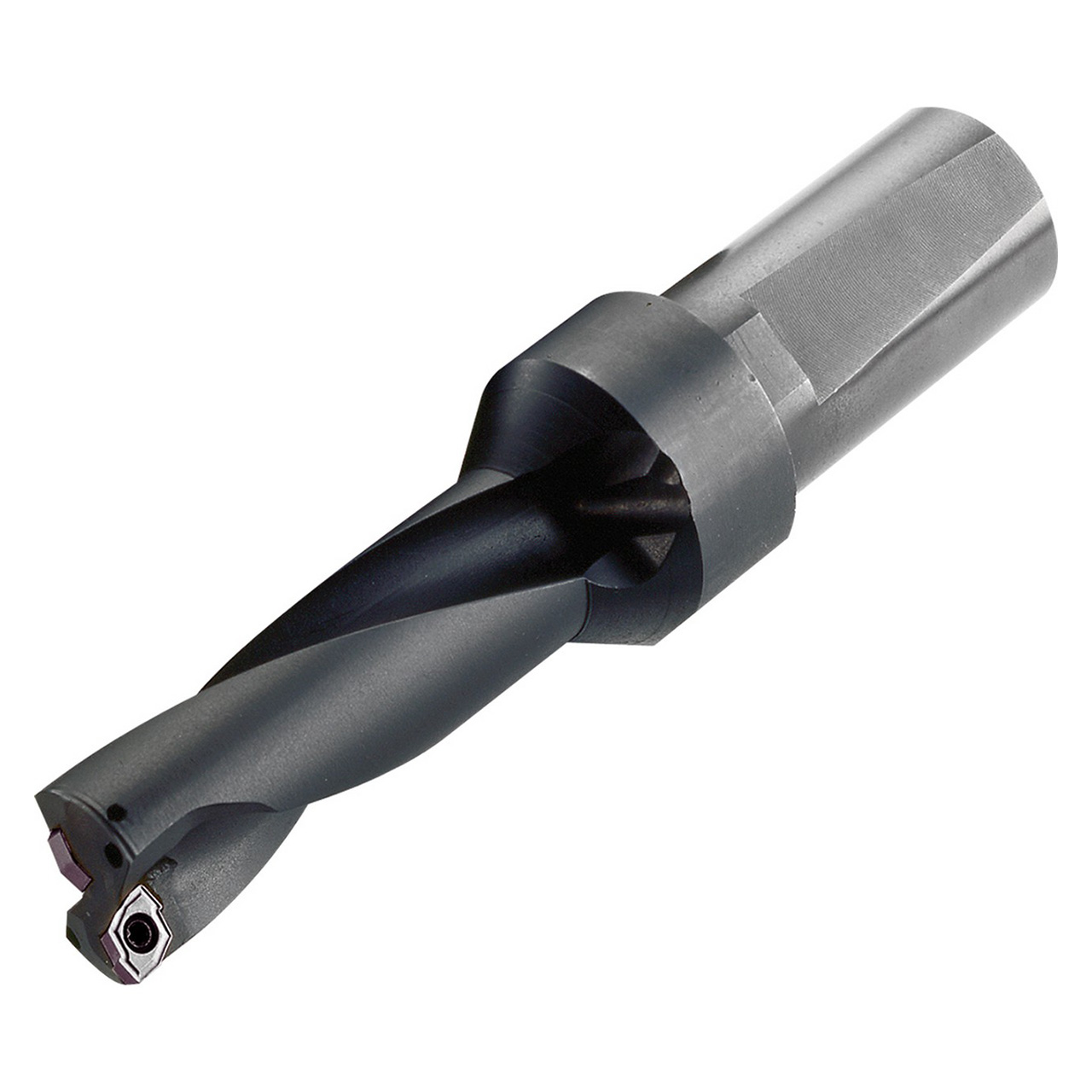

Kyocera Precision Tools THD02650 | S25DRZ255008 0.9843" Diameter x 1.9685" Usable Length 2 Flute Steel Indexable Insert Drill

SKU: 23231494 Weight: 1.10 LBS Minimum Purchase: 1 unit
UPC:
$785.32 $651.82
(You save $133.50)
Shipping: Free Shipping

About This Item

Features:

  • Cost reduction by using an insert with 4 corners
  • Suitable for various workpieces with a wide chipbreaker range
  • Special edge design to divide the chip into 3 pieces
  • Sharp cutting performance to prevent chattering
  • Good surface finish
  • Good chip evacuation, silent drilling and low cutting force design

Product Specifications
EDP NumberTHD02650
Cutting Diameter (Decimal Inch)0.9843"
Cutting Diameter (mm)25.00mm
Cutting Diameter Minimum (Decimal Inch)0.9843"
Cutting Diameter Minimum (mm)25.00mm
Cutting Diameter Maximum (Decimal Inch)0.9843"
Cutting Diameter Maximum (mm)25.00mm
Connection Diameter (Decimal Inch)0.9843"
Connection Diameter (mm)25.00mm
Contact Surface Diameter Machine Side (Decimal Inch)1.3780"
Contact Surface Diameter Machine Side (mm)35.00mm
Usable Length (Decimal Inch)1.9685"
Usable Length (mm)50.00mm
ApplicationDrilling
Coolant Through (Yes/No)Yes
Drill Depth by Diameter Ratio2xD
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes2
Number of Inserts2
Shank TypeStandard Length
Weldon FlatYes
