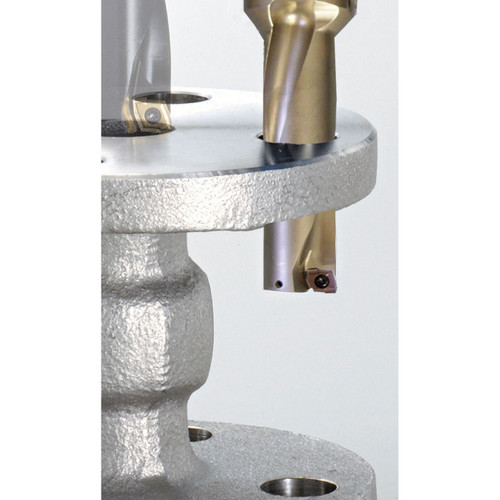

Kyocera Precision Tools THD04180 | S32DRZ2814010 1.1024" Diameter x 5.5118" Usable Length 2 Flute Steel Indexable Insert Drill

$1,040.77 $863.84
(You save $176.93)
Brand:
Kyocera Precision Tools
Drill Style:
DRZ
Drill Diameter (Decimal Inch):
1.1024
Drill Diameter (mm):
28.00
Maximum Drill Depth (Decimal Inch):
5.5118
Maximum Drill Depth (mm):
140.00
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
1.2598
Shank Diameter (mm):
32.00
Through Coolant:
Yes
Drill Depth by Diameter Ratio:
5xD
interval quantity:
1
SKU:
23231529
UPC:
Weight:
2.18 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Cost reduction by using an insert with 4 corners
  • Suitable for various workpieces with a wide chipbreaker range
  • Special edge design to divide the chip into 3 pieces
  • Sharp cutting performance to prevent chattering
  • Good surface finish
  • Good chip evacuation, silent drilling and low cutting force design

Product Specifications
EDP NumberTHD04180
Cutting Diameter (Decimal Inch)1.1024"
Cutting Diameter (mm)28.00mm
Cutting Diameter Minimum (Decimal Inch)1.1024"
Cutting Diameter Minimum (mm)28.00mm
Cutting Diameter Maximum (Decimal Inch)1.1024"
Cutting Diameter Maximum (mm)28.00mm
Connection Diameter (Decimal Inch)1.2598"
Connection Diameter (mm)32.00mm
Contact Surface Diameter Machine Side (Decimal Inch)1.6535"
Contact Surface Diameter Machine Side (mm)42.00mm
Usable Length (Decimal Inch)5.5118"
Usable Length (mm)140.00mm
ApplicationDrilling
Coolant Through (Yes/No)Yes
Drill Depth by Diameter Ratio5xD
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes2
Number of Inserts2
Shank TypeStandard Length
Weldon FlatYes
