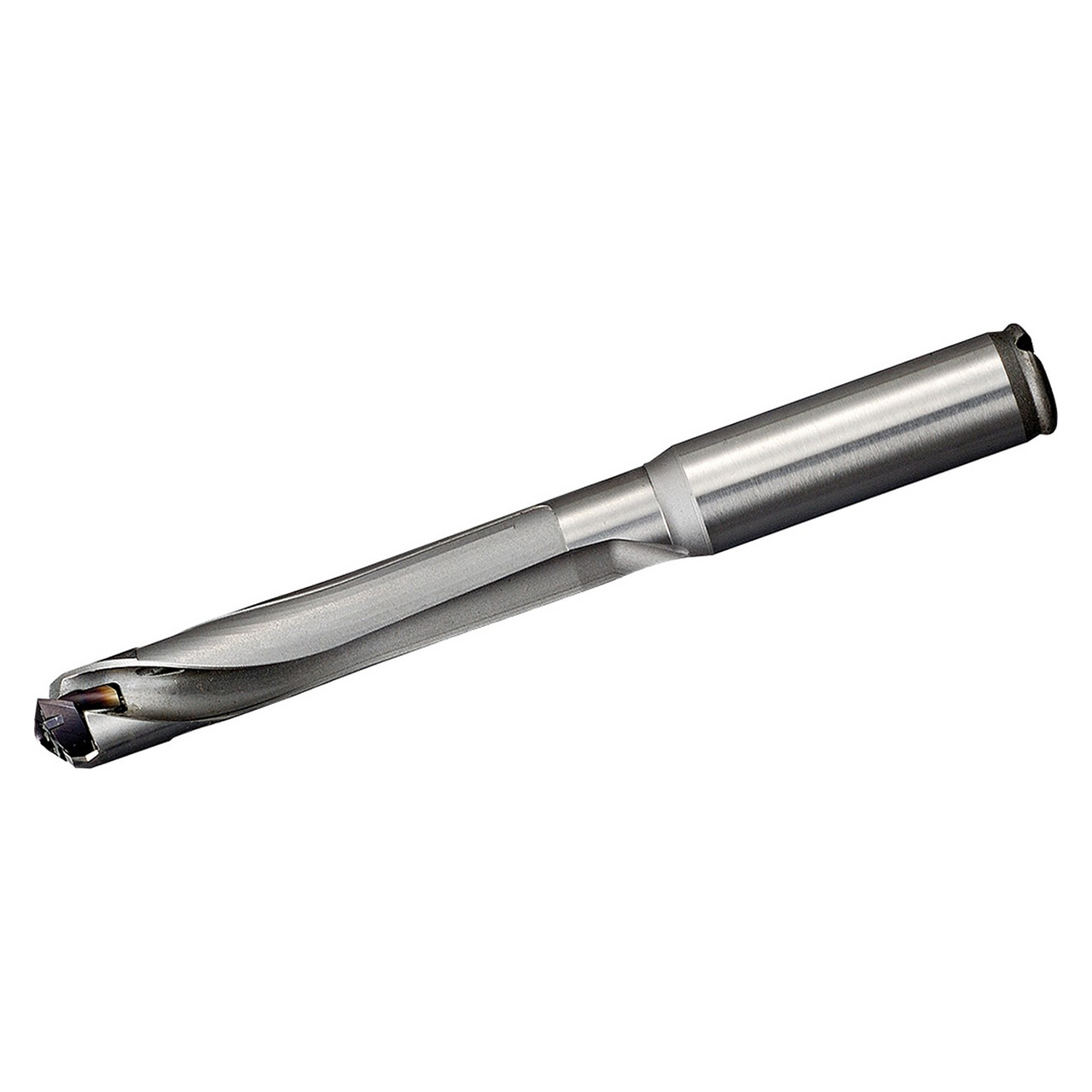

Features:
- Self-clamping design makes replacement possible on the machine
- Self-Centering Design - The S-curve top shape geometry of the insert known as the "Self-Centering Design" enables smooth drilling, lowers cutting forces and produces a high quality surface finish
- Multiple helical angle flute provide superior drill body stiffness and chip evacuation
- Direct Cooling Design - The coolant is fed directly into the inserts cutting face, cooling the top of the drill and preventing chip adhesion, which allows for quick and smooth chip evacuation
Product Specifications
| EDP Number | THD07102 |
| Cutting Diameter (Decimal Inch) | 0.3937 - 0.4130" |
| Cutting Diameter (mm) | 10.00 - 10.49mm |
| Cutting Diameter Minimum (Decimal Inch) | 0.3937" |
| Cutting Diameter Minimum (mm) | 10.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 0.4130" |
| Cutting Diameter Maximum (mm) | 10.49mm |
| Connection Diameter (Decimal Inch) | 0.4724" |
| Connection Diameter (mm) | 12.00mm |
| Usable Length (Decimal Inch) | 3.3071" |
| Usable Length (mm) | 84.00mm |
| Application | Drilling |
| Coolant Through (Yes/No) | Yes |
| Drill Depth by Diameter Ratio | 8xD |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 2 |
| Number of Inserts | 1 |
| Shank Type | Straight Shank |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Series:
DRC;Minimum Drill Diameter (Inch)=25/64"
Minimum Drill Diameter (Decimal Inch):
0.3937"
Minimum Drill Diameter (mm):
10.00mm
Maximum Drill Diameter (Inch):
13/32"
Maximum Drill Diameter (Decimal Inch):
0.4130"
Maximum Drill Diameter (mm):
10.49mm
Drill Depth by Diameter Ratio:
8xD
Maximum Drill Depth (Inch):
3-5/16"
Maximum Drill Depth (Decimal Inch):
3.3071"
Maximum Drill Depth (mm):
84.00mm
Toolholder Style:
SS DRC
Through Coolant:
Yes
