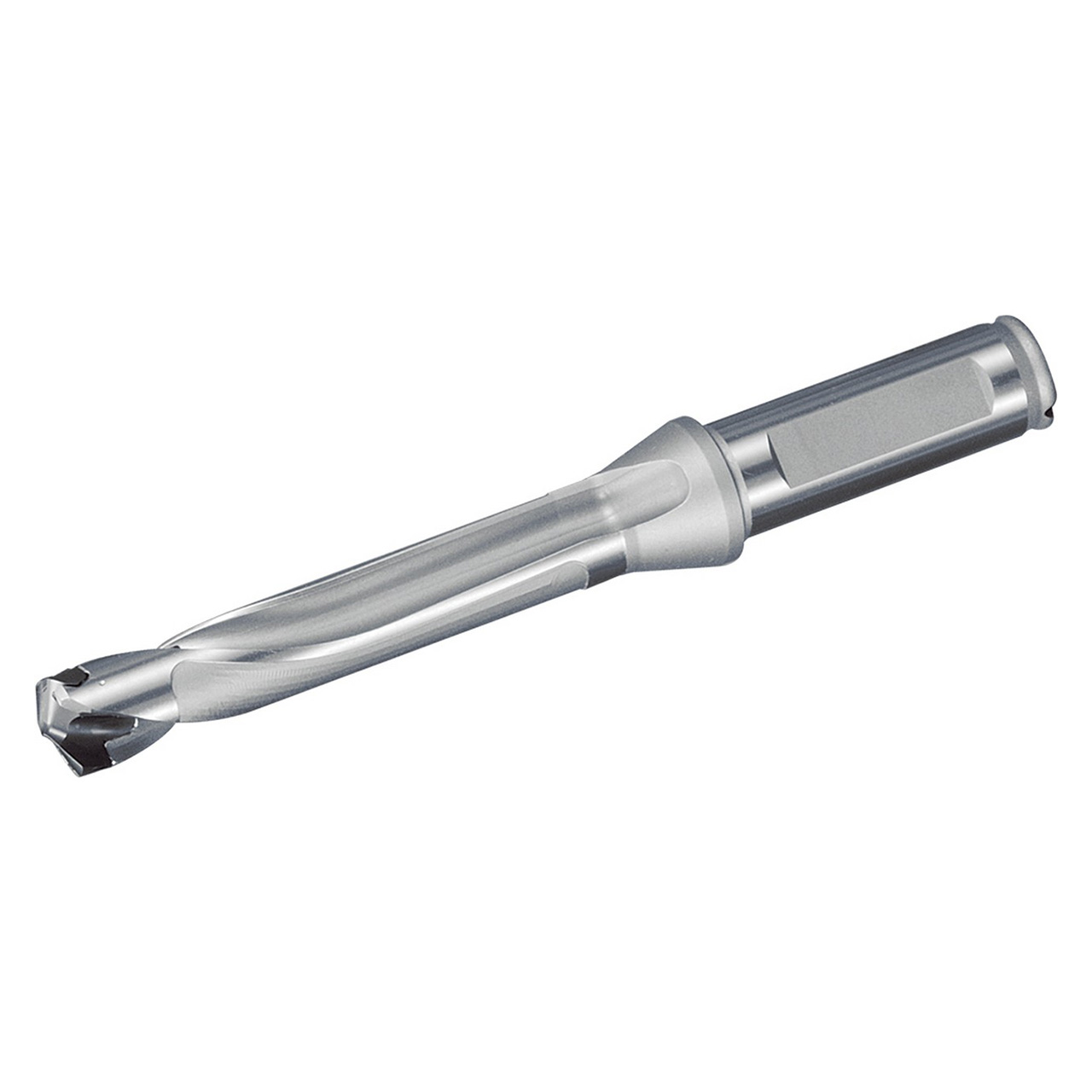

Features:
- Self-clamping design makes replacement possible on the machine
- Self-Centering Design - The S-curve top shape geometry of the insert known as the "Self-Centering Design" enables smooth drilling, lowers cutting forces and produces a high quality surface finish
- Multiple helical angle flute provide superior drill body stiffness and chip evacuation

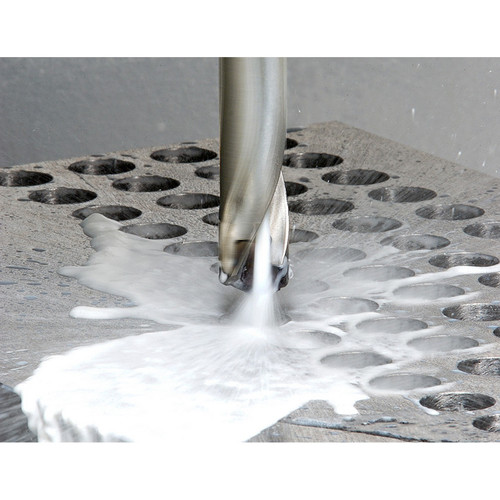

- Direct Cooling Design - The coolant is fed directly into the inserts cutting face, cooling the top of the drill and preventing chip adhesion, which allows for quick and smooth chip evacuation
Product Specifications
| EDP Number | THD07328 |
| Shank Width (Decimal Inch) | 0.6299" |
| Cutting Diameter (Decimal Inch) | 0.5906 - 0.6295" |
| Cutting Diameter (mm) | 15.00 - 15.99mm |
| Cutting Diameter Minimum (Decimal Inch) | 0.5906" |
| Cutting Diameter Minimum (mm) | 15.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 0.6295" |
| Cutting Diameter Maximum (mm) | 15.99mm |
| Connection Diameter (Decimal Inch) | 0.7874" |
| Connection Diameter (mm) | 20.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.9843" |
| Contact Surface Diameter Machine Side (mm) | 25.00mm |
| Usable Length (Decimal Inch) | 1.8898" |
| Usable Length (mm) | 48.00mm |
| Application | Drilling |
| Coolant Through (Yes/No) | Yes |
| Drill Depth by Diameter Ratio | 3xD |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 2 |
| Number of Inserts | 1 |
| Shank Type | Flange Shank |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
