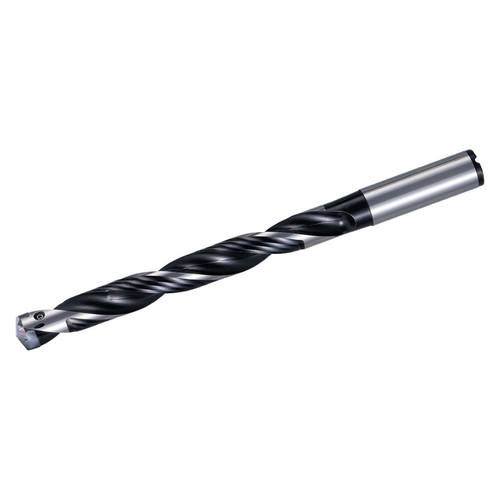

Features:
- Low cutting force design improves hole accuracy
- Optimal web thickness limits deflection
- Fine chip breaking even in deep hole drilling applications
- Easy insert replacement
- Long tool life and stable machining of various workpieces
Product Specifications
| EDP Number | THD08627 |
| Shank Width (Decimal Inch) | 1.0000" |
| Cutting Diameter (Decimal Inch) | 0.4921 - 0.5114" |
| Cutting Diameter (mm) | 12.50 - 12.99mm |
| Cutting Diameter Minimum (Decimal Inch) | 0.4921" |
| Cutting Diameter Minimum (mm) | 12.50mm |
| Cutting Diameter Maximum (Decimal Inch) | 0.5114" |
| Cutting Diameter Maximum (mm) | 12.99mm |
| Connection Diameter (Decimal Inch) | 0.6299" |
| Connection Diameter (mm) | 16.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.7874" |
| Contact Surface Diameter Machine Side (mm) | 20.00mm |
| Usable Length (Decimal Inch) | 4.0945" |
| Usable Length (mm) | 104.00mm |
| Application | Drilling |
| Coolant Through (Yes/No) | Yes |
| Drill Depth by Diameter Ratio | 8xD |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 2 |
| Number of Inserts | 1 |
| Shank Type | Flange Shank |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Series:
DRA;Minimum Drill Diameter (Inch)=31/64"""
Minimum Drill Diameter (Decimal Inch):
0.4921"
Minimum Drill Diameter (mm):
12.50mm
Maximum Drill Diameter (Inch):
33/64"
Maximum Drill Diameter (Decimal Inch):
0.5114"
Maximum Drill Diameter (mm):
12.99mm
Drill Depth by Diameter Ratio:
8xD
Maximum Drill Depth (Inch):
4-3/32"
Maximum Drill Depth (Decimal Inch):
4.0945"
Maximum Drill Depth (mm):
104.00mm
Toolholder Style:
SF…DRA
Through Coolant:
Yes
