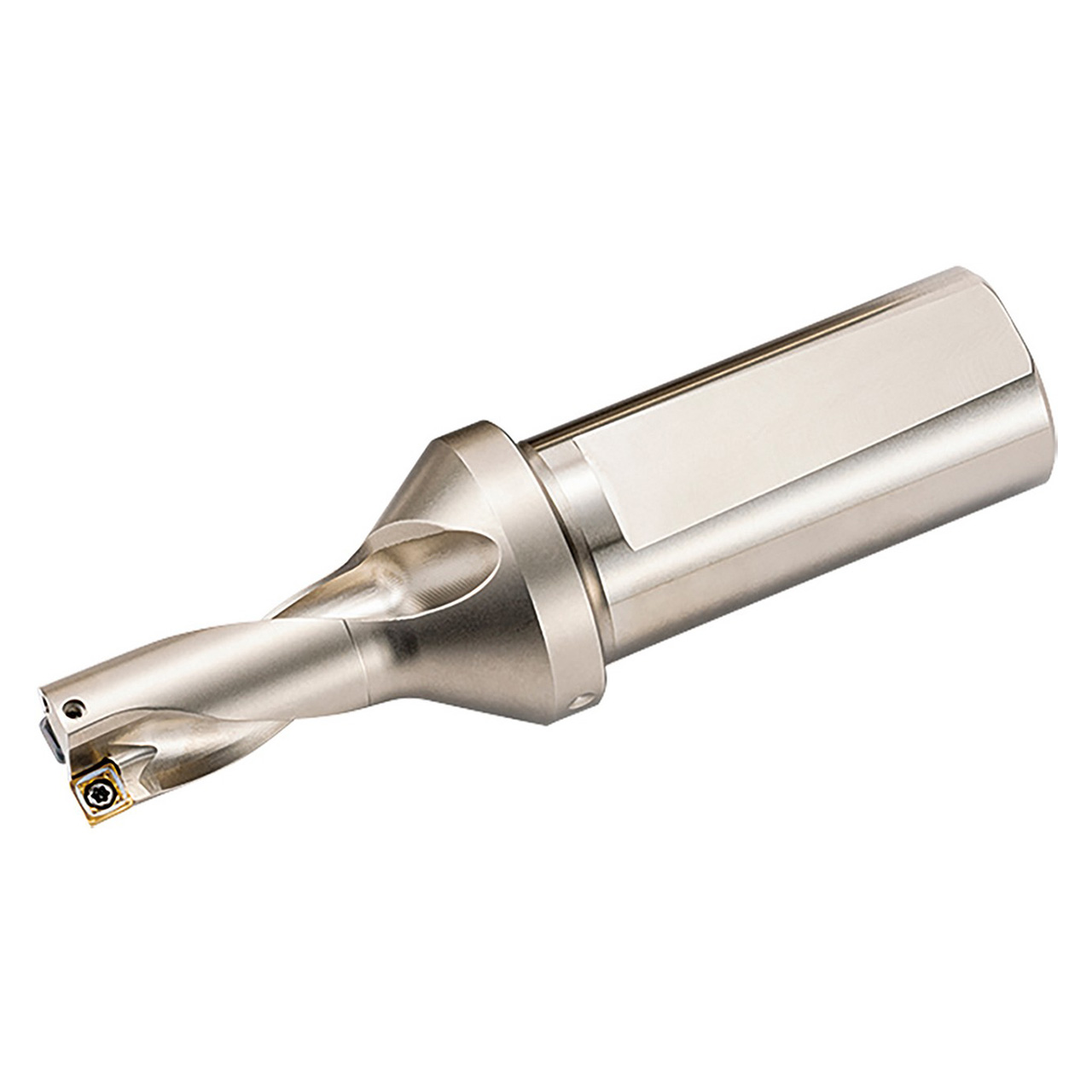

Features:
- Excellent drilling precision with less vibration in cutting diameter
- Economical inserts with 4 cutting edges
- Excellent chip evacuation with 6D maximum deep-hole drilling
- High speed and highly efficient machining with the combination of CVD (Outer edge) and PVD (Inner edge) inserts
Product Specifications
| EDP Number | THD11962 |
| Cutting Diameter (Decimal Inch) | 2.2047" |
| Cutting Diameter (mm) | 56.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 2.2047" |
| Cutting Diameter Minimum (mm) | 56.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 2.2047" |
| Cutting Diameter Maximum (mm) | 56.00mm |
| Connection Diameter (Decimal Inch) | 1.5748" |
| Connection Diameter (mm) | 40.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.3228" |
| Contact Surface Diameter Machine Side (mm) | 59.00mm |
| Usable Length (Decimal Inch) | 4.4095" |
| Usable Length (mm) | 112.00mm |
| Application | Drilling |
| Coolant Through (Yes/No) | Yes |
| Drill Depth by Diameter Ratio | 2xD |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 2 |
| Number of Inserts | 2 |
| Shank Type | Standard Length |
| Weldon Flat | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Drill Style:
DRV
Drill Diameter (Decimal Inch):
2.2047
Drill Diameter (mm):
56.00
Maximum Drill Depth (Decimal Inch):
4.4095
Maximum Drill Depth (mm):
112.00
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
1.5748
Shank Diameter (mm):
40.00
Through Coolant:
Yes
Drill Depth by Diameter Ratio:
2xD
