Features:

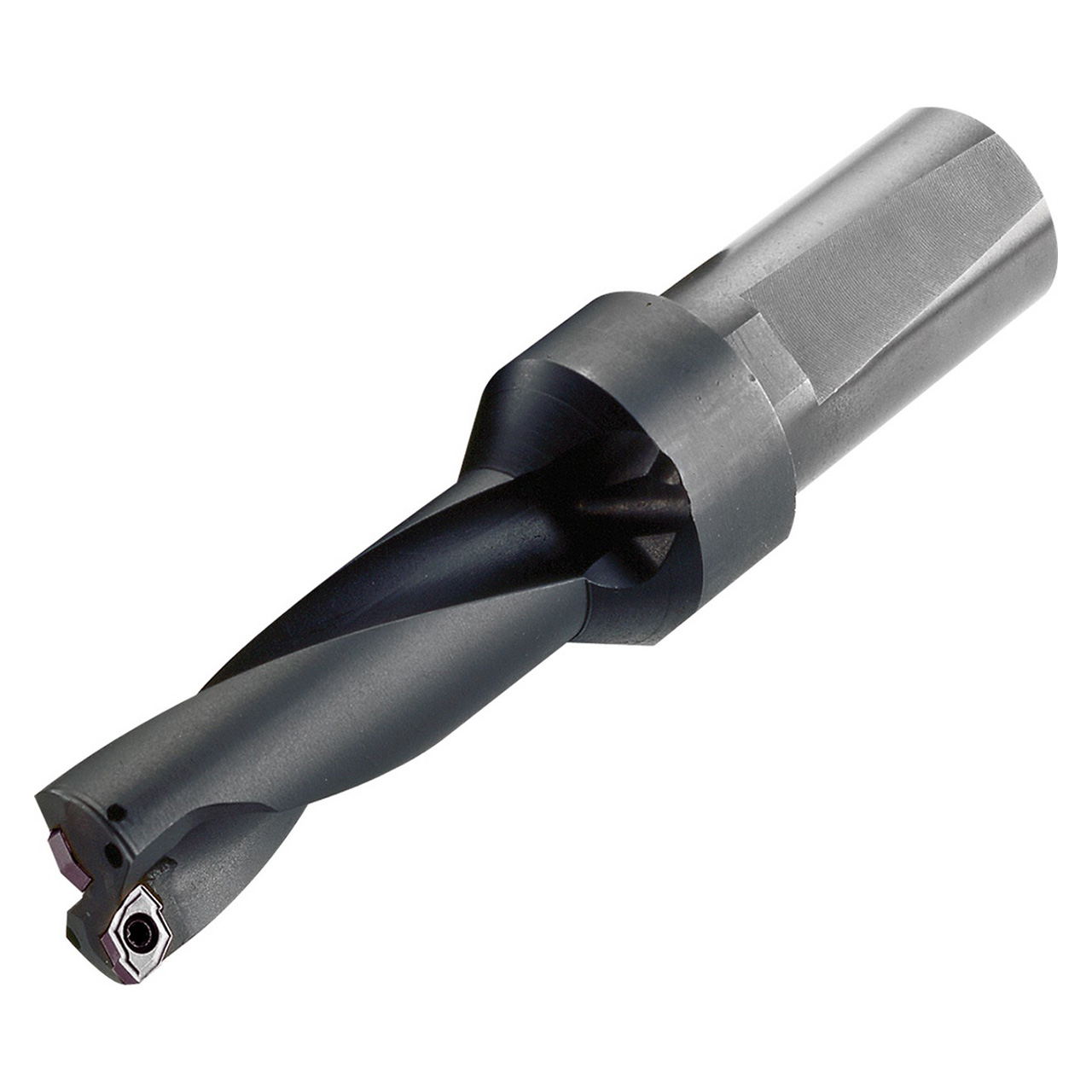

| EDP Number | THD89156 |
| Cutting Diameter (Decimal Inch) | 1.7500" |
| Cutting Diameter (mm) | 44.45mm |
| Cutting Diameter Minimum (Decimal Inch) | 1.7500" |
| Cutting Diameter Minimum (mm) | 44.45mm |
| Cutting Diameter Maximum (Decimal Inch) | 1.7500" |
| Cutting Diameter Maximum (mm) | 44.45mm |
| Connection Diameter (Decimal Inch) | 1.5000" |
| Connection Diameter (mm) | 38.10mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.1701" |
| Contact Surface Diameter Machine Side (mm) | 55.12mm |
| Tool Entering Angle ( Degree) | 2.9921 Degree |
| Usable Length (Decimal Inch) | 7.0000" |
| Usable Length (mm) | 177.80mm |
| Application | Drilling |
| Coolant Through (Yes/No) | Yes |
| Drill Depth by Diameter Ratio | 4xD |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 2 |
| Number of Inserts | 2 |
| Shank Type | Standard Length |
| Weldon Flat | Yes |
