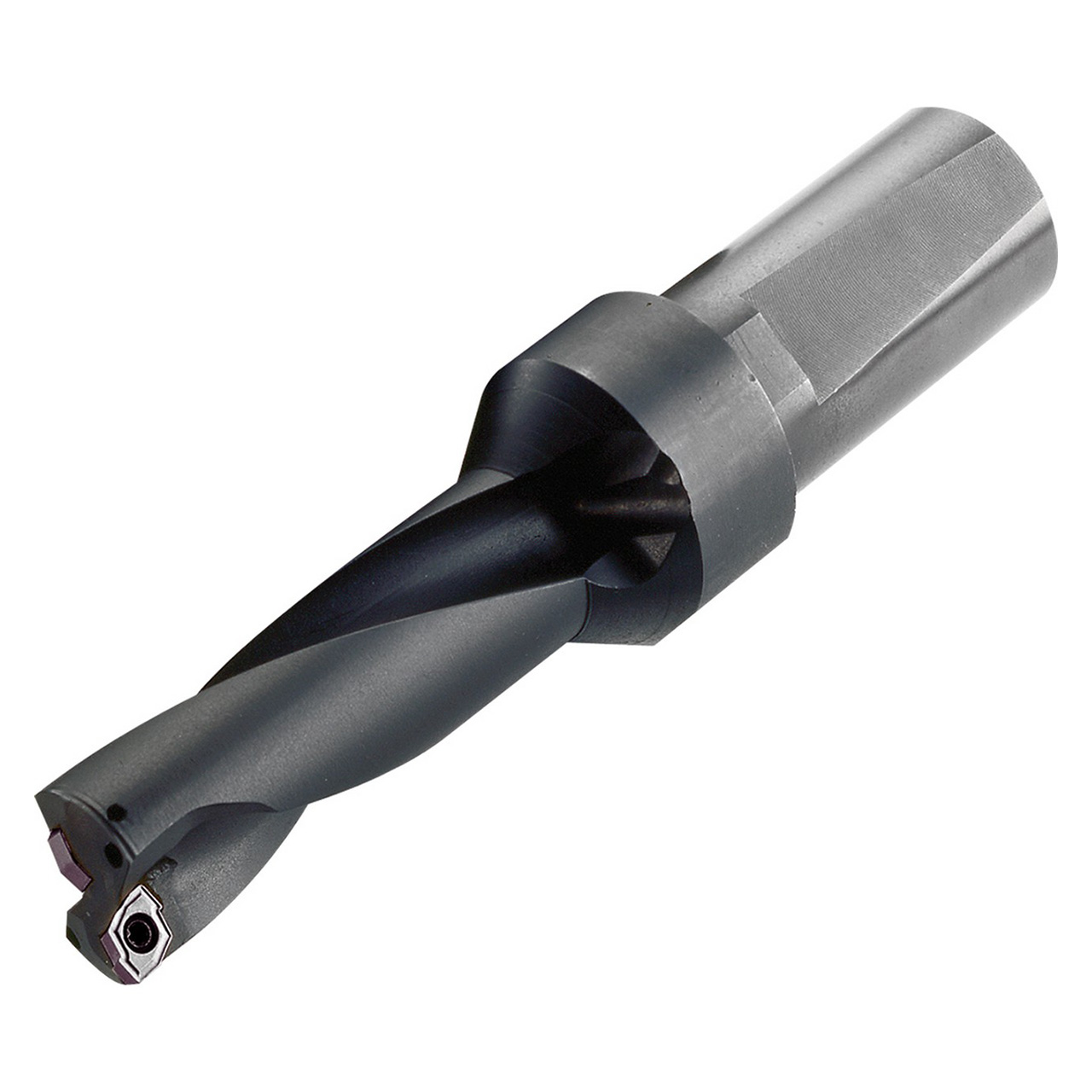

Kyocera Precision Tools THD89222 | S75DRZ562112505G 0.563" Diameter x 1.125" Usable Length 2 Flute Steel Indexable Insert Drill

SKU: 23232761 Weight: 0.40 LBS Minimum Purchase: 1 unit
UPC:
$665.39 $552.27
(You save $113.12)
Shipping: Calculated at Checkout

About This Item

Features:

  • Cost reduction by using an insert with 4 corners
  • Suitable for various workpieces with a wide chipbreaker range
  • Special edge design to divide the chip into 3 pieces
  • Sharp cutting performance to prevent chattering
  • Good surface finish
  • Good chip evacuation, silent drilling and low cutting force design

Product Specifications
EDP NumberTHD89222
Cutting Diameter (Decimal Inch)0.5626"
Cutting Diameter (mm)14.29mm
Cutting Diameter Minimum (Decimal Inch)0.5626"
Cutting Diameter Minimum (mm)14.29mm
Cutting Diameter Maximum (Decimal Inch)0.5626"
Cutting Diameter Maximum (mm)14.29mm
Connection Diameter (Decimal Inch)0.7500"
Connection Diameter (mm)19.05mm
Contact Surface Diameter Machine Side (Decimal Inch)1.0598"
Contact Surface Diameter Machine Side (mm)26.92mm
Tool Entering Angle ( Degree)5.1181 Degree
Usable Length (Decimal Inch)1.1252"
Usable Length (mm)28.58mm
ApplicationDrilling
Coolant Through (Yes/No)Yes
Drill Depth by Diameter Ratio2xD
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes2
Number of Inserts2
Shank TypeStandard Length
Weldon FlatYes
