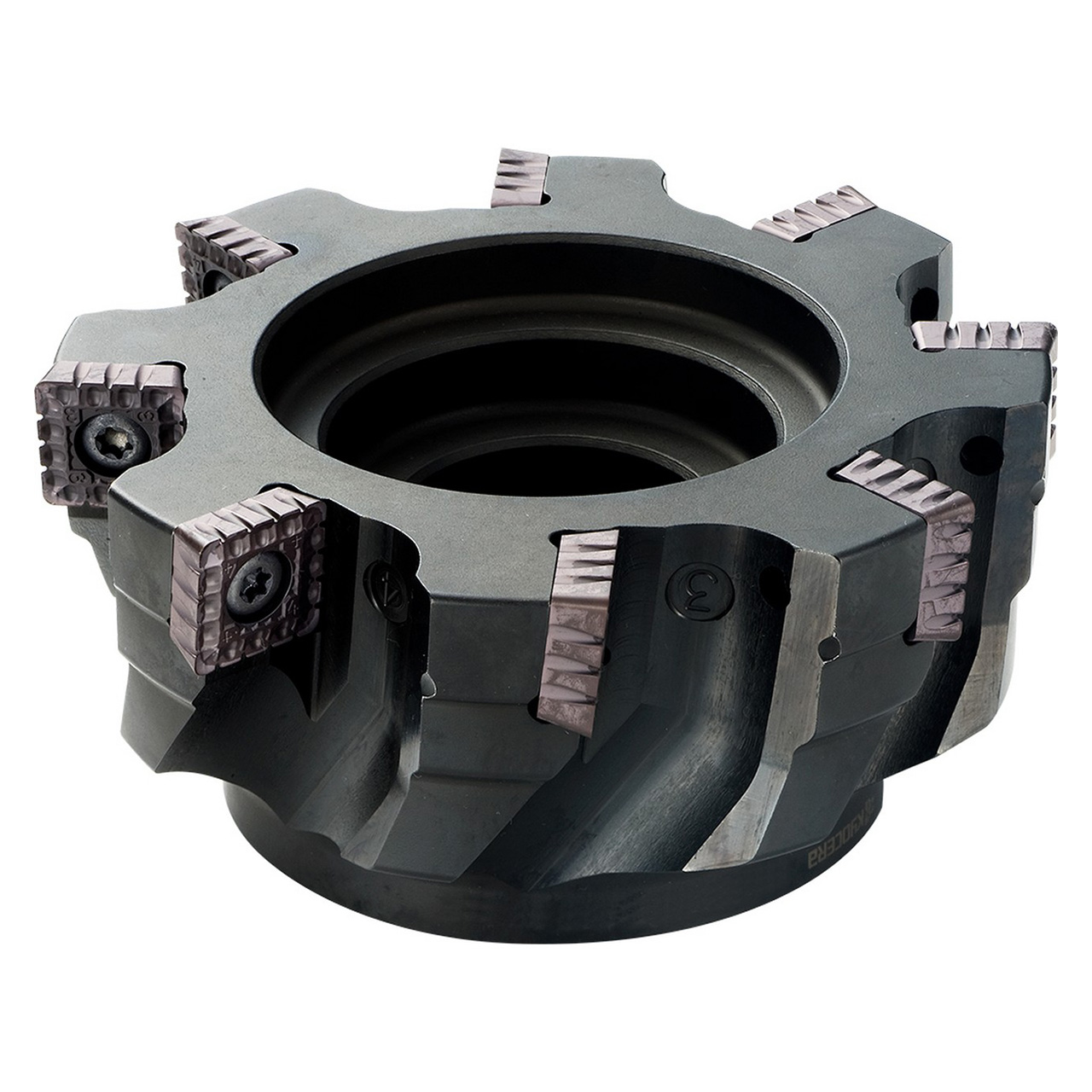

Features:
- 90 Degree Lead angle face mill
- Application: facing, shouldering, slotting, heavy milling
- Large depths of cut and high feed rates
- Notched inserts reduce cutting forces when entering the workpiece
- Stable machining without chattering
Product Specifications
| EDP Number | THN01513 |
| Maximum Depth of Cut (Decimal Inch) | 0.6496" |
| Cutting Diameter (Decimal Inch) | 4.0000" |
| Cutting Diameter (mm) | 101.60mm |
| Cutting Diameter Minimum (Decimal Inch) | 4.0000" |
| Cutting Diameter Minimum (mm) | 101.60mm |
| Cutting Diameter Maximum (Decimal Inch) | 4.0000" |
| Cutting Diameter Maximum (mm) | 101.60mm |
| Cutting Diameter Maximum (mm) | 1.5000" |
| Connection Bore Diameter (mm) | 38.10mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 3.3465" |
| Contact Surface Diameter Machine Side (mm) | 85.00mm |
| Tool Entering Angle ( Degree) | 2.8539 Degree |
| Application | Facing, Heavy Milling, Shouldering, Slotting |
| Cutter Pitch | Standard Pitch |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 6 |
| Number of Inserts | 6 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
4"
Cutting Diameter (Decimal Inch):
4.0000"
Cutting Diameter (mm):
101.60mm
Maximum Depth of Cut (Inch):
21/32"
Maximum Depth of Cut (Decimal Inch):
0.6496"
Maximum Depth of Cut (mm):
16.5mm
Arbor Hole Diameter (Inch):
1-1/2"
Arbor Hole Diameter (Decimal Inch):
1.5000"
Arbor Hole Diameter (mm):
38.10mm
Series:
MSRS;Cutter Style=MSRS"
Number of Cutter Inserts:
6
