Features:

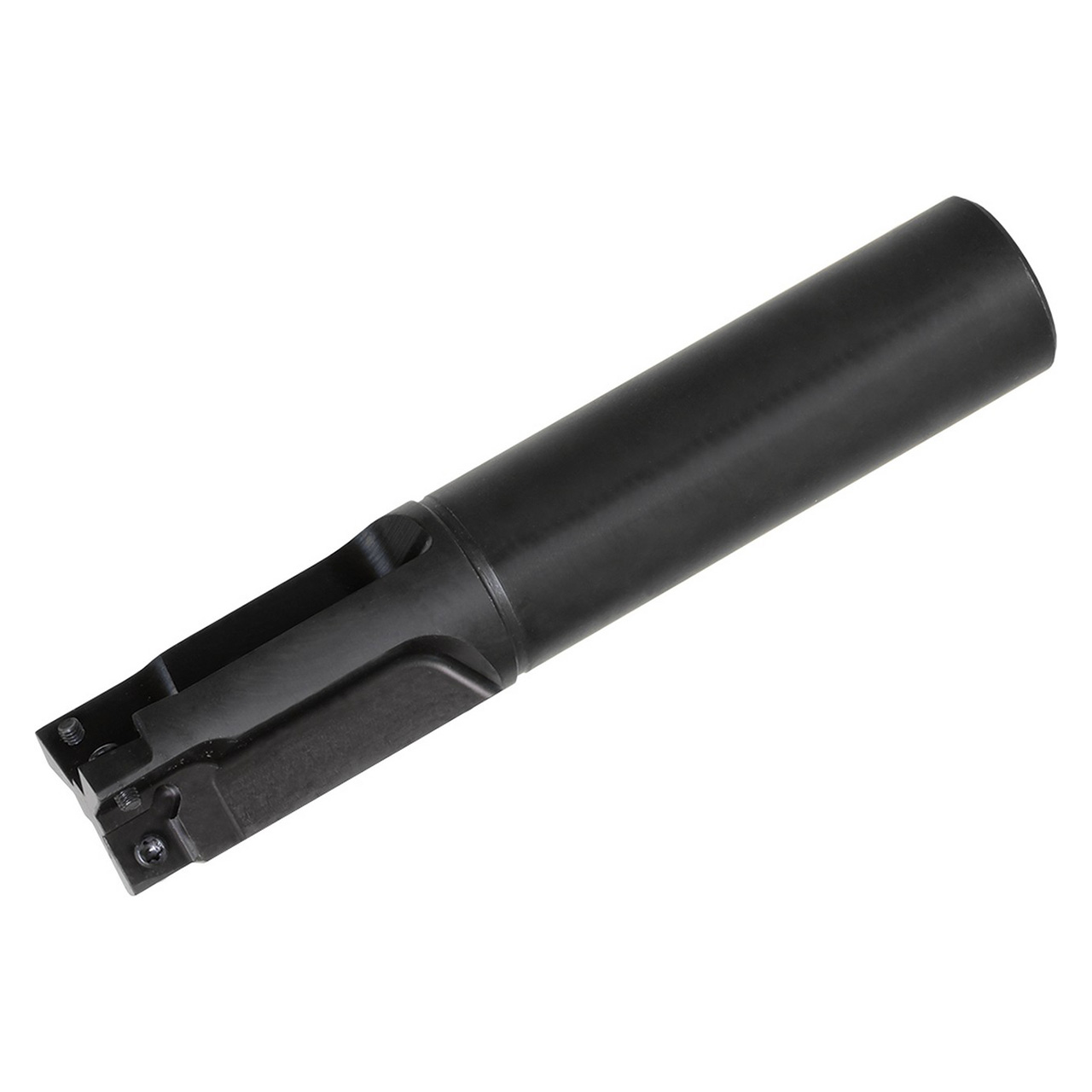

- Right-Hand, standard length, 89 Degree lead angle end mill
- Bolt countersinking (M8), shouldering, facing applications
- Compatible with SPMT060204E-Z, SPMT060208E-Z inserts
Product Specifications
| EDP Number | THN02000 |
| Cutting Diameter (Decimal Inch) | 0.1772 - 0.5512" |
| Cutting Diameter (mm) | 4.50 - 14.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 0.1772" |
| Cutting Diameter Minimum (mm) | 4.50mm |
| Cutting Diameter Maximum (Decimal Inch) | 0.5512" |
| Cutting Diameter Maximum (mm) | 14.00mm |
| Connection Diameter (Decimal Inch) | 0.4724" |
| Connection Diameter (mm) | 12.00mm |
| Tool Entering Angle ( Degree) | 4.7240 Degree |
| Application | Bolt Countersinking | Facing | Shouldering |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 1 |
| Number of Inserts | 1 |
| Shank Type | Standard Length |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
11/64 - 35/64"
Cutting Diameter (Decimal Inch):
0.1772 - 0.5512"
Cutting Diameter (mm):
4.50 - 14.00mm
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
0.4724"
Shank Diameter (mm):
12.00mm
Number of Cutter Inserts:
1
Toolholder Style:
MEF
