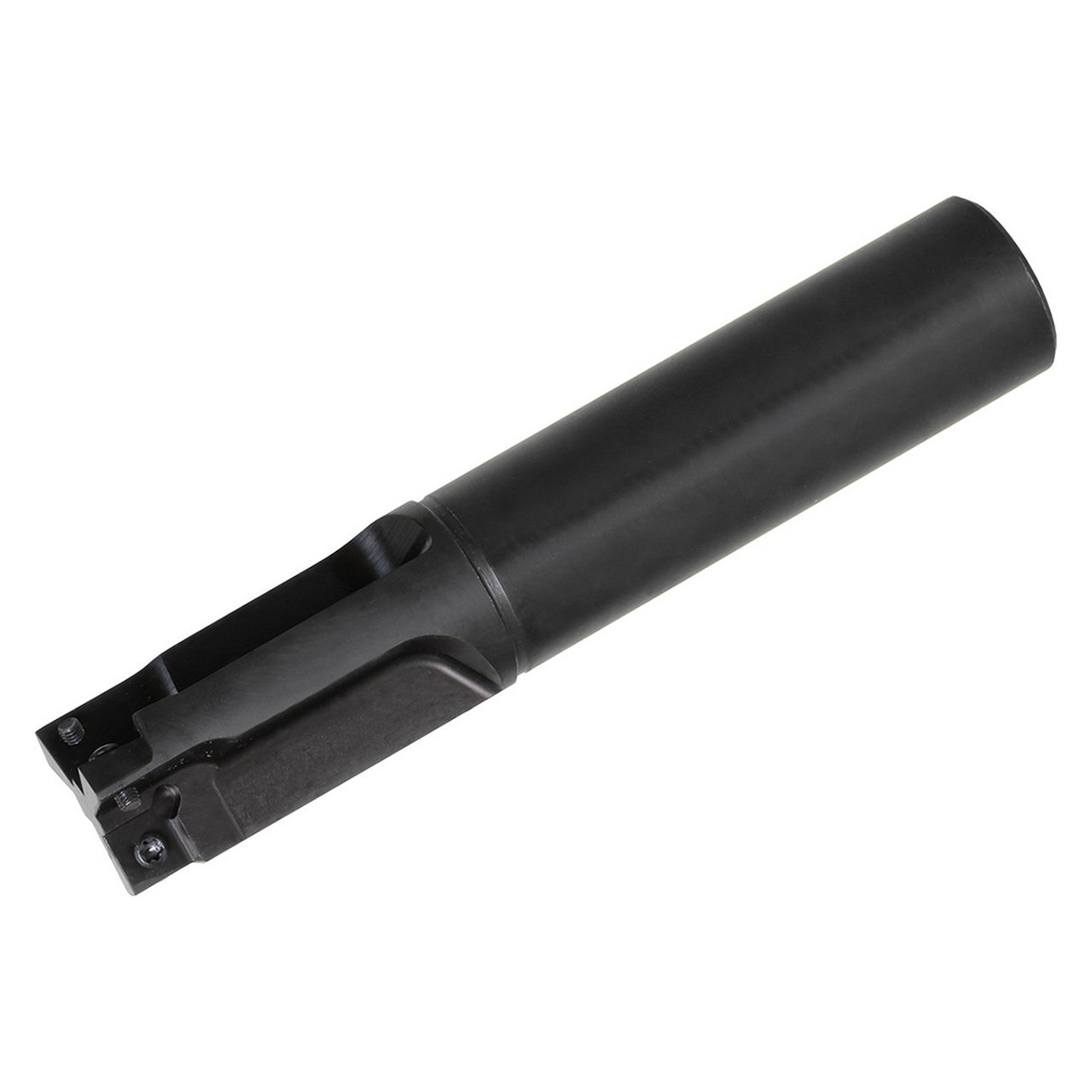

Kyocera Precision Tools THN02026 | MEF28S25 0.4528-1.1024" Diameter x 89 Degree Angle 3 Flute Steel Indexable End Mill

$293.94
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
29/64" - 1-7/64"
Cutting Diameter (Decimal Inch):
0.4528 - 1.1024"
Cutting Diameter (mm):
11.50 - 28.00mm
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
0.9843"
Shank Diameter (mm):
25.00mm
Number of Cutter Inserts:
3
Toolholder Style:
MEF
SKU:
23233023
Weight:
1.16 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Right-Hand, standard length, 89 Degree lead angle end mill
  • Bolt countersinking, shouldering, facing applications
  • Compatible with SPMT090304E-Z, SPMT090308E-Z inserts

Product Specifications
EDP NumberTHN02026
Cutting Diameter (Decimal Inch)0.4528 - 1.1024"
Cutting Diameter (mm)11.50 - 28.00mm
Cutting Diameter Minimum (Decimal Inch)0.4528"
Cutting Diameter Minimum (mm)11.50mm
Cutting Diameter Maximum (Decimal Inch)1.1024"
Cutting Diameter Maximum (mm)28.00mm
Connection Diameter (Decimal Inch)0.9843"
Connection Diameter (mm)25.00mm
Tool Entering Angle ( Degree)3.3071 Degree
ApplicationBolt Countersinking | Facing | Shouldering
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes3
Number of Inserts3
Shank TypeStandard Length
