Features:

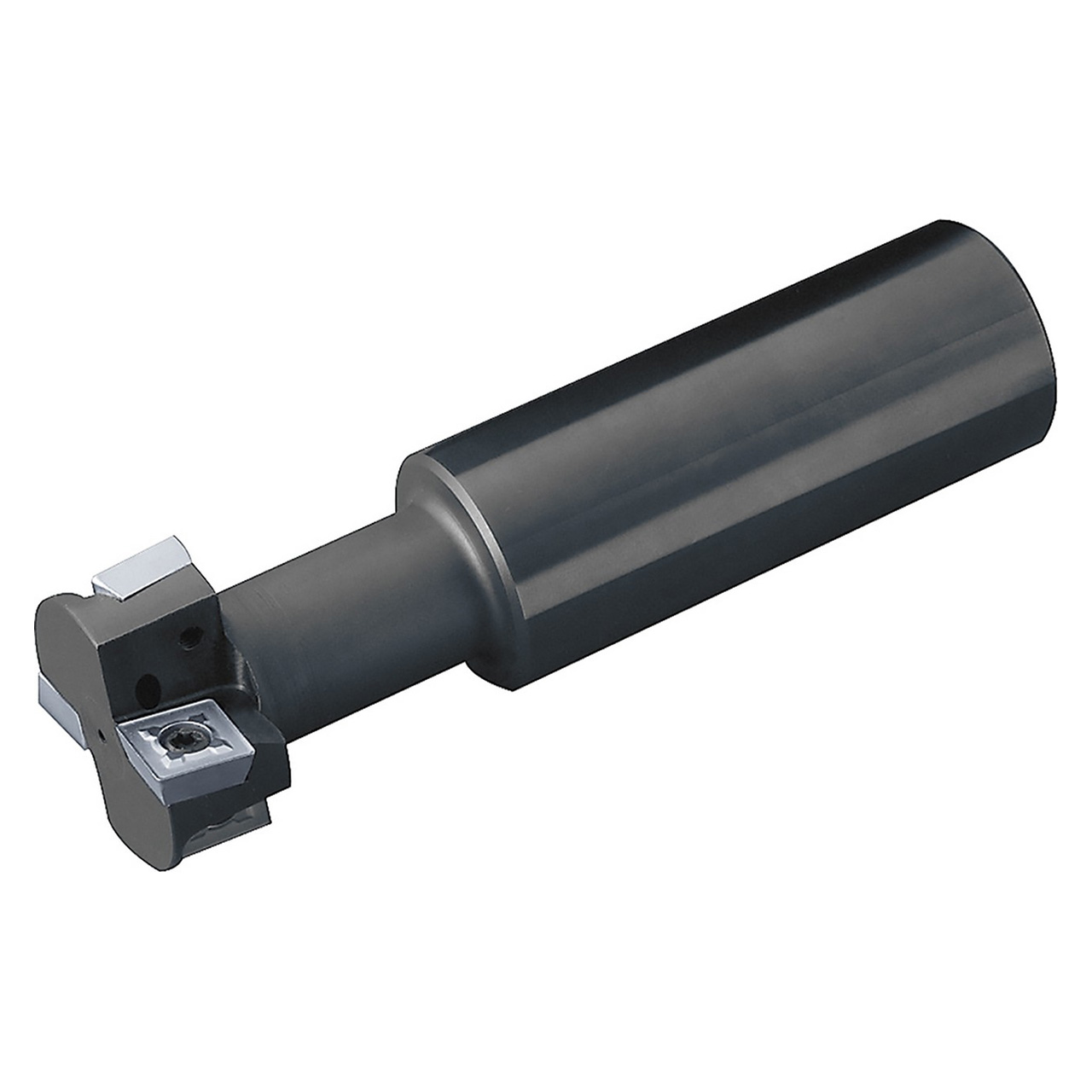

- Right-Handed METS series T-Slot end mill
- 25mm Cutting diameter
- Compatible with SDMT221E-K inserts
Product Specifications
| EDP Number | THN02306 |
| Cutting Width (Decimal Inch) | 0.4331" |
| Cutting Width (mm) | 11.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.4331" |
| Cutting Width Minimum (mm) | 11.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.4331" |
| Cutting Width Maximum (mm) | 11.00mm |
| Cutting Diameter (Decimal Inch) | 0.9843" |
| Cutting Diameter (mm) | 25.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 0.9843" |
| Cutting Diameter Minimum (mm) | 25.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 0.9843" |
| Cutting Diameter Maximum (mm) | 25.00mm |
| Connection Diameter (Decimal Inch) | 0.9843" |
| Connection Diameter (mm) | 25.00mm |
| Tool Entering Angle ( Degree) | 4.0941 Degree |
| Usable Length (Decimal Inch) | 1.2598" |
| Usable Length (mm) | 32.00mm |
| Application | Back Side Milling | T-Slotting |
| Coolant Through (Yes/No) | Yes |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 1 |
| Number of Inserts | 2 |
| Shank Type | Standard Length |
| Weldon Flat | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
63/64"
Cutting Diameter (Decimal Inch):
0.9843"
Cutting Diameter (mm):
25.00mm
Cutting Width (Inch):
7/16"
Cutting Width (Decimal Inch):
0.4331"
Cutting Width (mm):
11.00mm
Shank Diameter (Inch):
63/64"
Shank Diameter (Decimal Inch):
0.9843"
Shank Diameter (mm):
25.00mm
Toolholder Style:
METS
Number of Cutter Inserts:
2
interval quantity:
1
