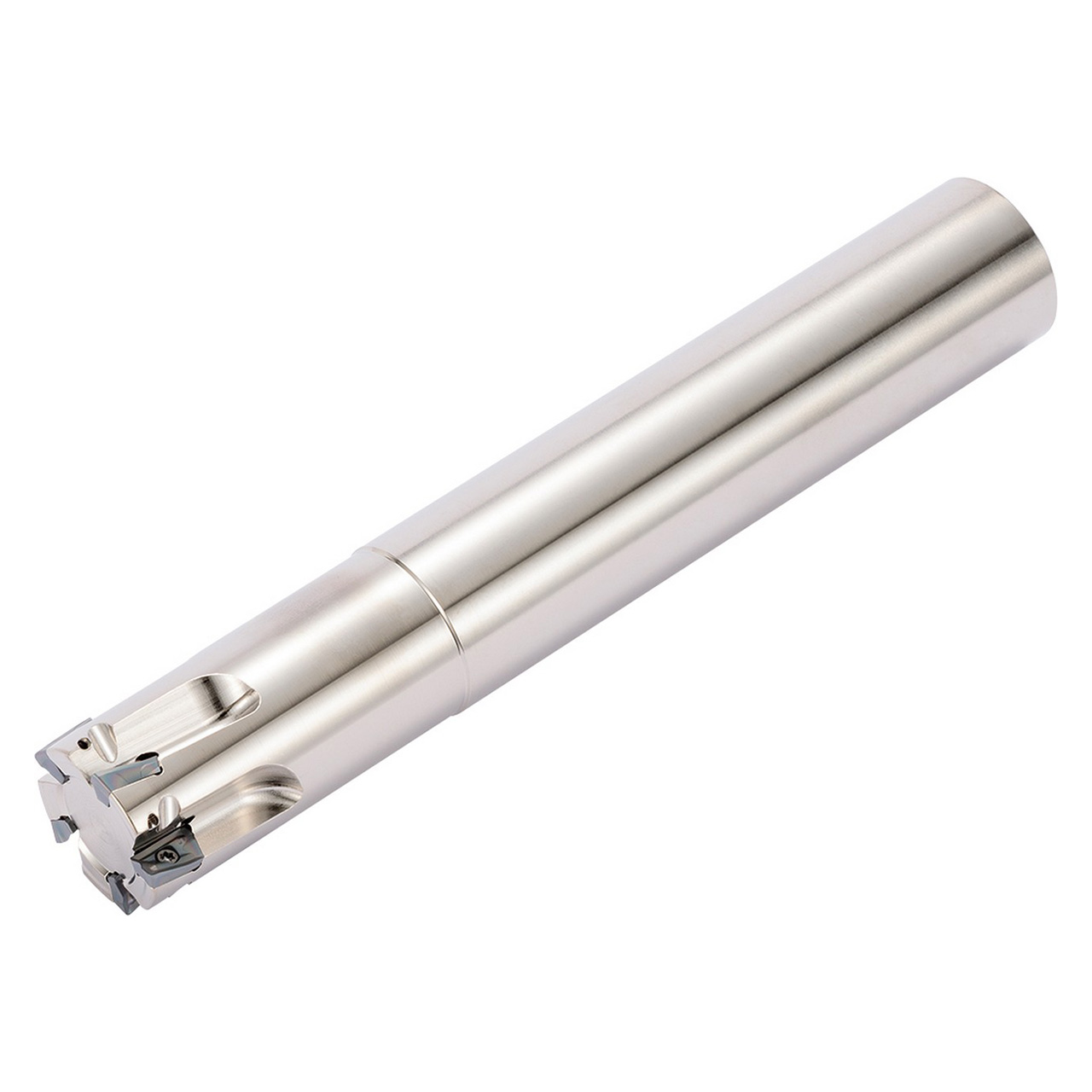

Features:
- Right-Hand, standard length, 90 Degree lead angle end mill
- Shouldering, facing, slotting, ramping, helical milling, plunging applications
- Compatible with BDMT1103ER-JT, BDMT1103ER-JS inserts
Product Specifications
| EDP Number | THN03110 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937" |
| Cutting Diameter (Decimal Inch) | 0.4724" |
| Cutting Diameter (mm) | 12.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 0.4724" |
| Cutting Diameter Minimum (mm) | 12.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 0.4724" |
| Cutting Diameter Maximum (mm) | 12.00mm |
| Connection Diameter (Decimal Inch) | 0.4724" |
| Connection Diameter (mm) | 12.00mm |
| Tool Entering Angle ( Degree) | 2.1260 Degree |
| Application | Facing | Shouldering | Slotting |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 1 |
| Number of Inserts | 1 |
| Shank Type | Standard Length |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
15/32"
Cutting Diameter (Decimal Inch):
0.4724"
Cutting Diameter (mm):
12.00mm
Maximum Depth of Cut (Inch):
25/64"
Maximum Depth of Cut (Decimal Inch):
0.3937"
Maximum Depth of Cut (mm):
10mm
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
0.4724"
Shank Diameter (mm):
12.00mm
Number of Cutter Inserts:
1
Toolholder Style:
MEC
interval quantity:
1
