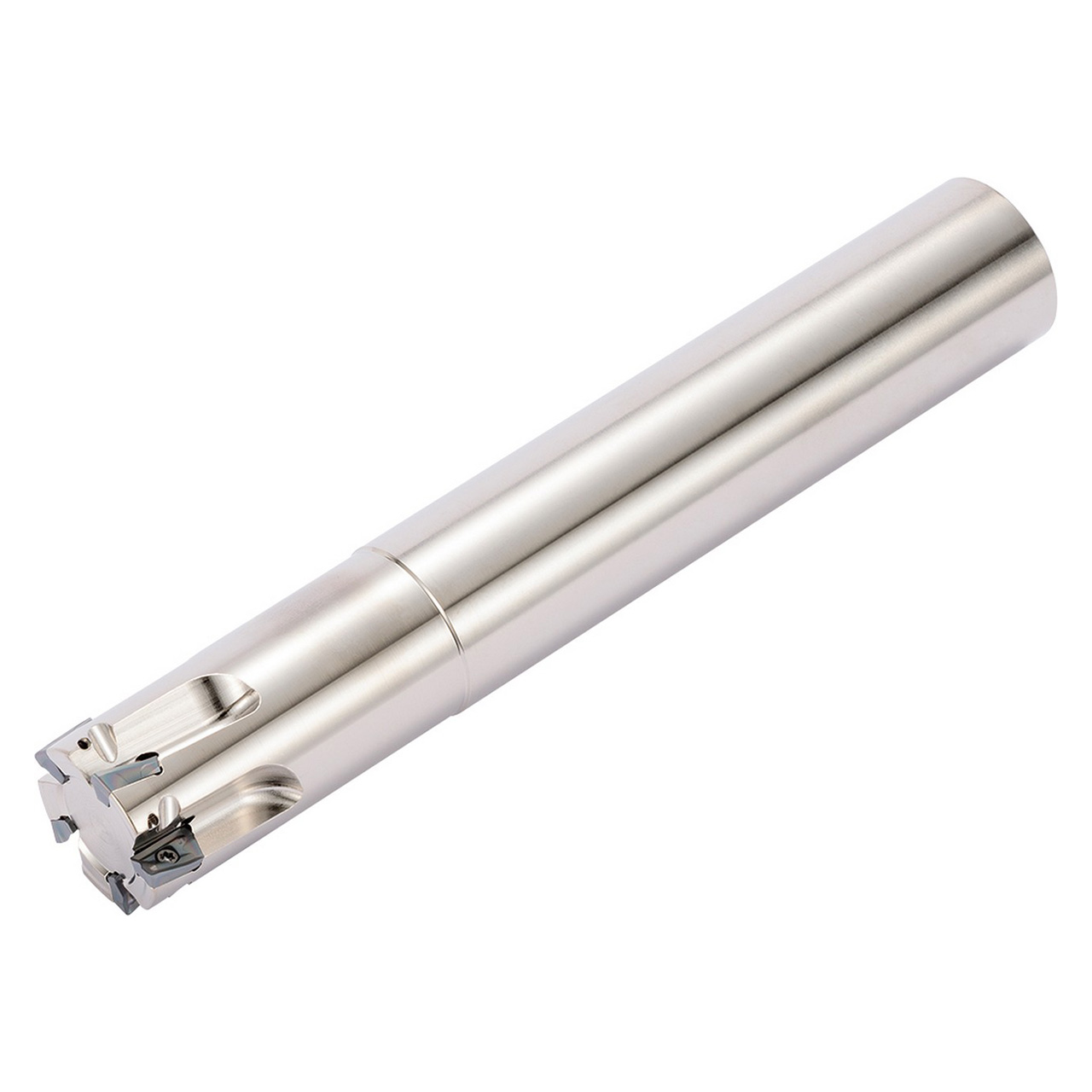

Kyocera Precision Tools THN03174 | MEC22S2011T 0.866" Diameter x 90 Degree Angle 3 Flute Steel Indexable End Mill

SKU: 23233081 Weight: 0.77 LBS Minimum Purchase: 1 unit
UPC:
$490.46 $407.08
(You save $83.38)
Shipping: Free Shipping

About This Item

Features:

  • Right-Hand, standard length, 90 Degree lead angle end mill

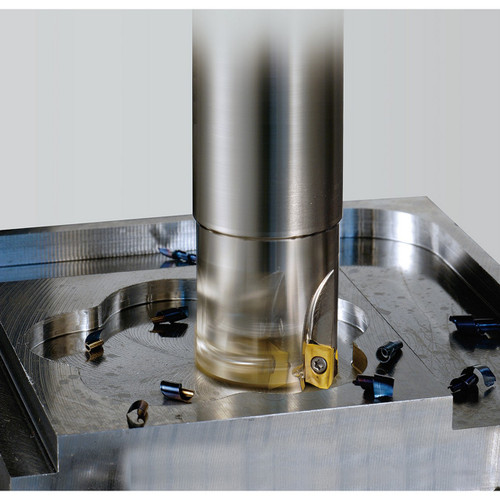

  • Shouldering, facing, slotting, ramping, helical milling, plunging applications
  • Compatible with BDMT11T3ER-JT, BDMT11T3ER-JS, BDGT11T3FR-JA BDGT11T3FR, BDMT11T3FR inserts

Product Specifications
EDP NumberTHN03174
Maximum Depth of Cut (Decimal Inch)0.3937"
Cutting Diameter (Decimal Inch)0.8661"
Cutting Diameter (mm)22.00mm
Cutting Diameter Minimum (Decimal Inch)0.8661"
Cutting Diameter Minimum (mm)22.00mm
Cutting Diameter Maximum (Decimal Inch)0.8661"
Cutting Diameter Maximum (mm)22.00mm
Connection Diameter (Decimal Inch)0.7874"
Connection Diameter (mm)20.00mm
Tool Entering Angle ( Degree)2.0669 Degree
ApplicationFacing | Helical Milling | Plunging | Ramping | Shouldering | Slotting
Coolant Through (Yes/No)Yes
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes3
Number of Inserts3
Shank TypeStandard Length
