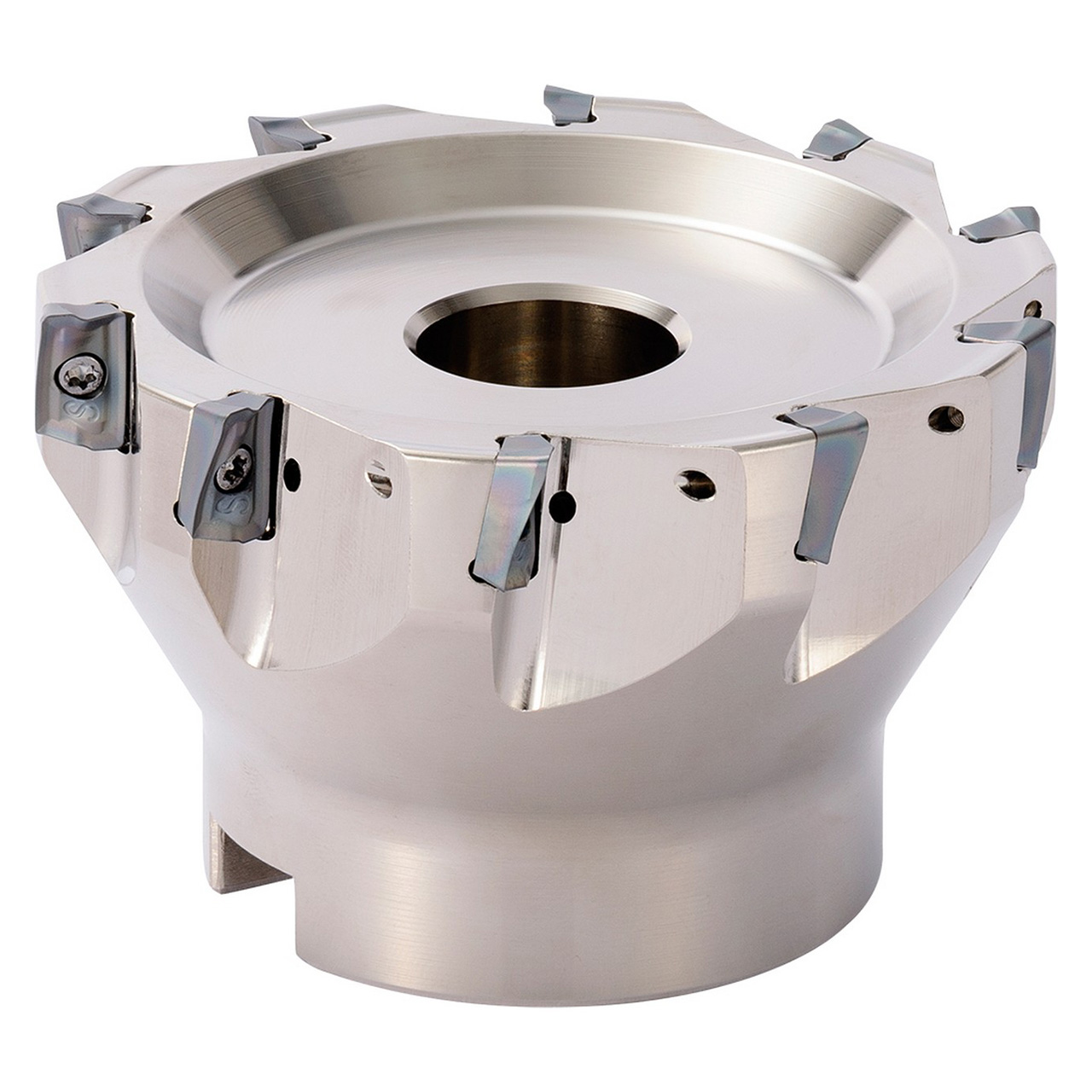

Kyocera Precision Tools THN03425 | MEC063R176TM 2.4803" Diameter x 90 Degree Angle 6 Flute Steel Indexable Face Mill

$806.77 $669.62
(You save $137.15)
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
2-31/64"
Cutting Diameter (Decimal Inch):
2.4803"
Cutting Diameter (mm):
63.00mm
Maximum Depth of Cut (Inch):
5/8"
Maximum Depth of Cut (Decimal Inch):
0.6181"
Maximum Depth of Cut (mm):
15.7mm
Arbor Hole Diameter (Inch):
55/64"
Arbor Hole Diameter (Decimal Inch):
0.8661"
Arbor Hole Diameter (mm):
22.00mm
Series:
MEC;Cutter Style=MEC"
Number of Cutter Inserts:
6
interval quantity:
1
SKU:
23233143
UPC:
Weight:
1.49 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • 90 Degree Lead angle face mill
  • Application: shouldering, facing, slotting, helical milling, plunging
  • Low cutting force and reduced chattering for high-efficiency milling
  • Great for various milling applications
  • CA6535 and PR1535 insert grades for difficult-to-cut material

Product Specifications
EDP NumberTHN03425
Maximum Depth of Cut (Decimal Inch)0.6181"
Cutting Diameter (Decimal Inch)2.4803"
Cutting Diameter (mm)63.00mm
Cutting Diameter Minimum (Decimal Inch)2.4803"
Cutting Diameter Minimum (mm)63.00mm
Cutting Diameter Maximum (Decimal Inch)2.4803"
Cutting Diameter Maximum (mm)63.00mm
Cutting Diameter Maximum (mm)0.8661"
Connection Bore Diameter (mm)22.00mm
Contact Surface Diameter Machine Side (Decimal Inch)1.5748"
Contact Surface Diameter Machine Side (mm)40.00mm
Tool Entering Angle ( Degree)1.3583 Degree
ApplicationFacing, Helical Milling, Plunging, Shouldering, Slotting
Coolant Through (Yes/No)Yes
Cutter PitchFine Pitch
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes6
Number of Inserts6
