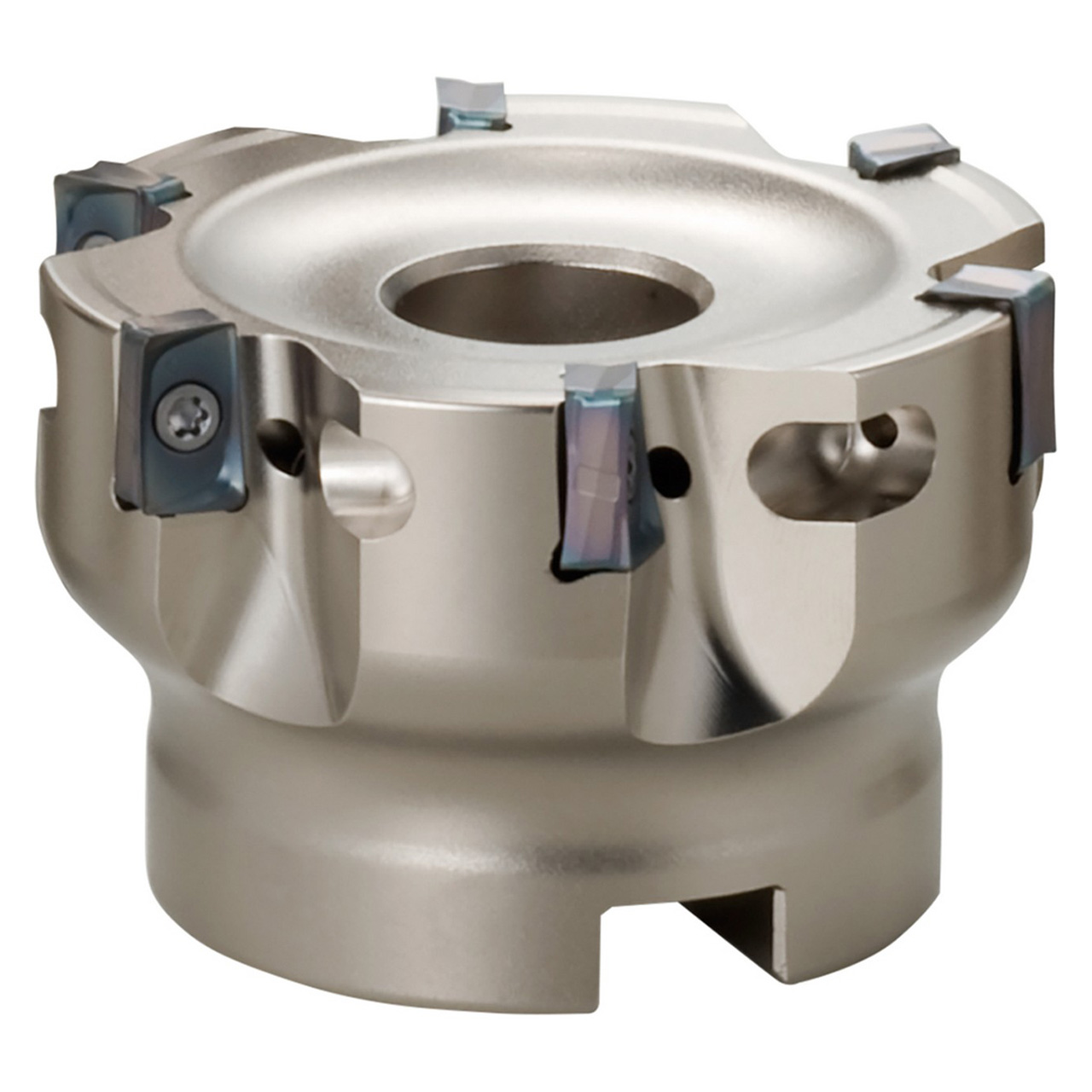

Kyocera Precision Tools THN05174 | MEW063R106TM 2.480" Diameter x 90 Degree Angle 6 Flute Steel Indexable Face Mill

SKU: 23233428 Weight: 1.61 LBS Minimum Purchase: 1 unit
UPC:
$1,082.88 $898.79
(You save $184.09)
Shipping: Free Shipping

About This Item

Features:

  • 90 Degree Lead angle face mill
  • Application: shouldering, facing, slotting, plunging
  • 90 Degree milling with economical, double-sided 4-edge inserts
  • Improved toolholder durability and insert installation accuracy
  • CA6535 and PR1535 insert grades for difficult-to-cut material

Product Specifications
EDP NumberTHN05174
Maximum Depth of Cut (Decimal Inch)0.3937"
Cutting Diameter (Decimal Inch)2.4803"
Cutting Diameter (mm)63.00mm
Cutting Diameter Minimum (Decimal Inch)2.4803"
Cutting Diameter Minimum (mm)63.00mm
Cutting Diameter Maximum (Decimal Inch)2.4803"
Cutting Diameter Maximum (mm)63.00mm
Cutting Diameter Maximum (mm)0.8661"
Connection Bore Diameter (mm)22.00mm
Contact Surface Diameter Machine Side (Decimal Inch)1.8504"
Contact Surface Diameter Machine Side (mm)47.00mm
Tool Entering Angle ( Degree)90 Degree
ApplicationFacing, Plunging, Shouldering, Slotting
Coolant Through (Yes/No)Yes
Cutter PitchStandard Pitch
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes6
Number of Inserts6
