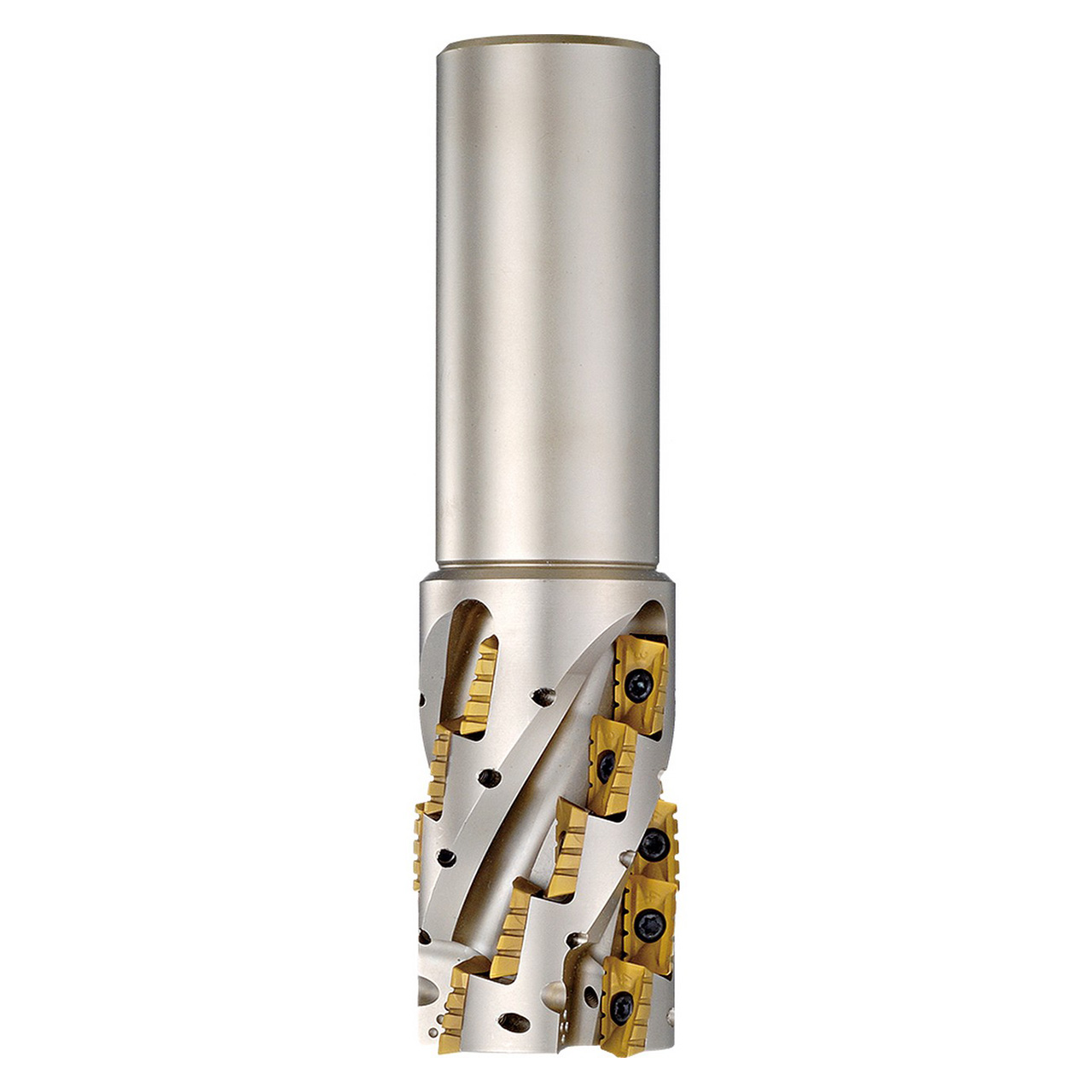

Kyocera Precision Tools THN03861 | MECH1250W1251152T 1.2500" Diameter x 1.8110" Max Depth of Cut 2 Flute Steel Helical End Mill

$706.65 $586.52
(You save $120.13)
Brand:
Kyocera Precision Tools
Shank Type:
Standard Length
Lead Angle:
90 Degree
Series:
MEC;Through Coolant=No"
interval quantity:
1
SKU:
23233197
UPC:
Weight:
1.87 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Related Products

Features:

  • Low cutting force and reduced chattering for high-efficiency milling
  • Great for various milling applications
  • Compatible with: BDMT11T308ER-N2, BDMT11T308ER-N3 style inserts

Product Specifications
EDP NumberTHN03861
Maximum Depth of Cut (Decimal Inch)1.8110"
Cutting Diameter (Decimal Inch)1.2500"
Cutting Diameter (mm)31.75mm
Cutting Diameter Minimum (Decimal Inch)1.2500"
Cutting Diameter Minimum (mm)31.75mm
Cutting Diameter Maximum (Decimal Inch)1.2500"
Cutting Diameter Maximum (mm)31.75mm
Connection Diameter (Decimal Inch)1.2500"
Connection Diameter (mm)31.75mm
Tool Entering Angle ( Degree)0.6221 Degree
ApplicationFacing | Shouldering | Slotting
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes2
Number of Inserts10
Shank TypeStandard Length
Weldon FlatYes
