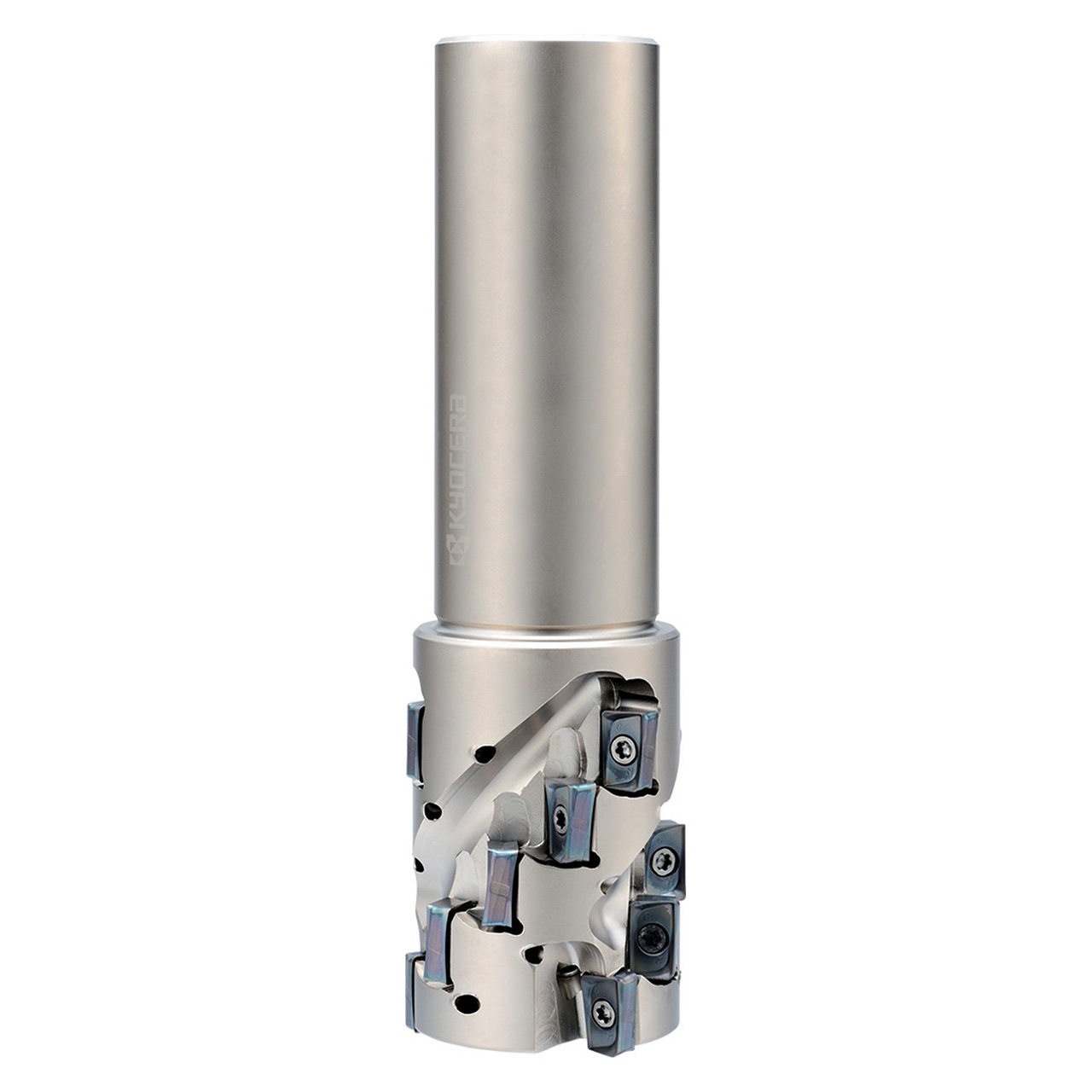

Features:

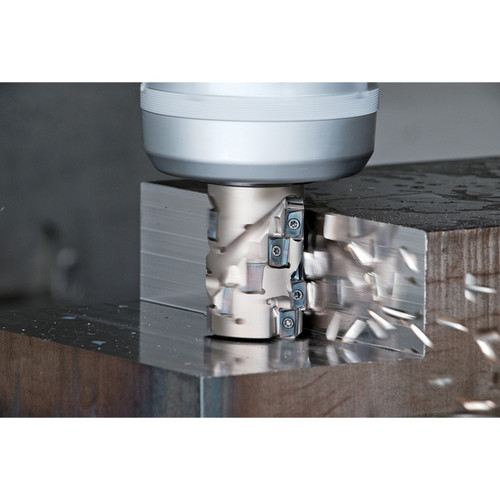

- 90 Degree Milling with double-sided 4-edge inserts
- Low cutting forces with chatter resistance for excellent surface finish
- Excellent surface finish and stable machining due to innovative toolholder design
- Excellent chip evacuation
- Compatible with: LOMU1505 style inserts
Product Specifications
| EDP Number | THN04094 |
| Maximum Depth of Cut (Decimal Inch) | 2.0866" |
| Cutting Diameter (Decimal Inch) | 1.5000" |
| Cutting Diameter (mm) | 38.10mm |
| Cutting Diameter Minimum (Decimal Inch) | 1.5000" |
| Cutting Diameter Minimum (mm) | 38.10mm |
| Cutting Diameter Maximum (Decimal Inch) | 1.5000" |
| Cutting Diameter Maximum (mm) | 38.10mm |
| Connection Diameter (Decimal Inch) | 1.2500" |
| Connection Diameter (mm) | 31.75mm |
| Tool Entering Angle ( Degree) | 9.4488 Degree |
| Application | Facing | Shouldering | Slotting |
| Coolant Through (Yes/No) | Yes |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 2 |
| Number of Inserts | 8 |
| Shank Type | Standard Length |
| Weldon Flat | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Decimal Inch):
1.5000"
Cutting Diameter (Decimal Inch):
38.10mm
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
1.2500"
Shank Diameter (mm):
31.75mm
Lead Angle:
90°
Series:
MEW;Through Coolant=Yes"
