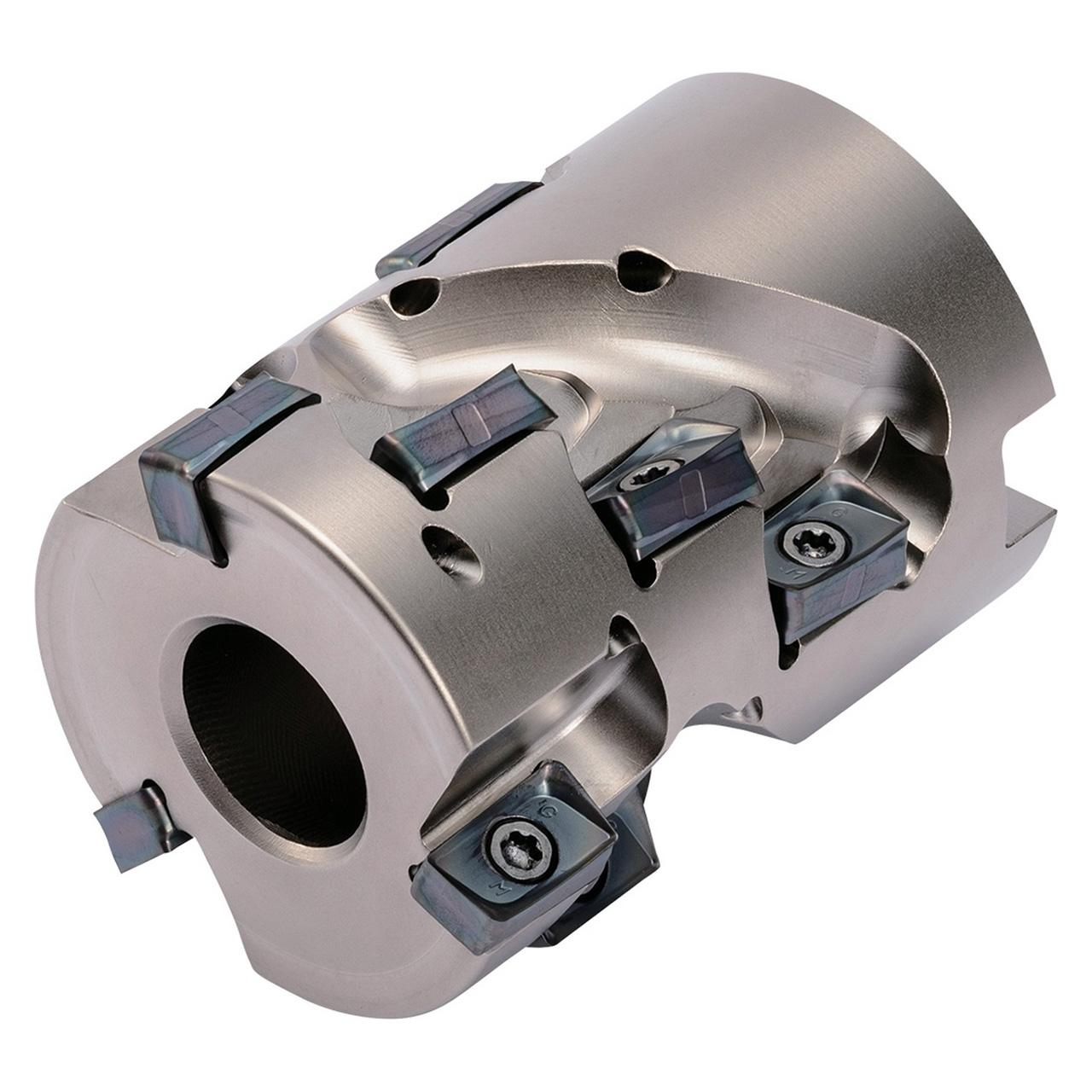

Kyocera Precision Tools THN04254 | MEWH080R1544TM 3.150" Diameter x 2.087" Max Depth of Cut 4 Flute Steel Helical Shell Mill

SKU: 23233243 Weight: 4.71 LBS Minimum Purchase: 1 unit
UPC:
$2,571.92 $2,134.69
(You save $437.23)
Shipping: Free Shipping

About This Item

Features:

  • 90 Degree Milling with double-sided 4-edge inserts
  • Low cutting forces with chatter resistance for excellent surface finish
  • Excellent surface finish and stable machining due to innovative toolholder design
  • Excellent chip evacuation
  • Compatible with: LOMU1505 style inserts

Product Specifications
EDP NumberTHN04254
Maximum Depth of Cut (Decimal Inch)2.0866"
Cutting Diameter (Decimal Inch)3.1496"
Cutting Diameter (mm)80.00mm
Cutting Diameter Minimum (Decimal Inch)3.1496"
Cutting Diameter Minimum (mm)80.00mm
Cutting Diameter Maximum (Decimal Inch)3.1496"
Cutting Diameter Maximum (mm)80.00mm
Cutting Diameter Maximum (mm)1.2598"
Connection Bore Diameter (mm)32.00mm
Tool Entering Angle ( Degree)6.1024 Degree
ApplicationFacing | Shouldering
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes4
Number of Inserts16
