Features:

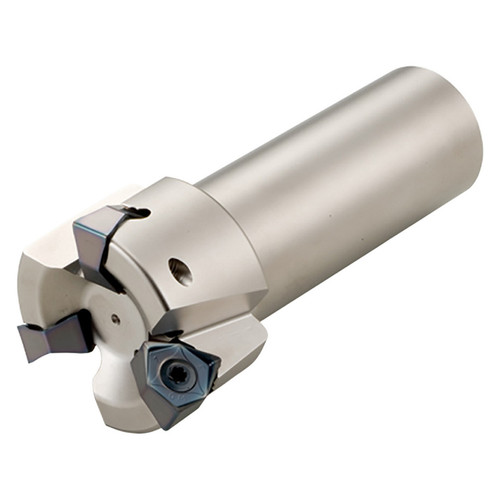

- Right-Hand, standard length, 45 Degree lead angle end mill
- Facing, chamfering applications
- Compatible with PNMU1205, PNEU1205 inserts
Product Specifications
| EDP Number | THN04446 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362" |
| Cutting Diameter (Decimal Inch) | 3.1496 - 3.6614" |
| Cutting Diameter (mm) | 80.00 - 93.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 3.1496" |
| Cutting Diameter Minimum (mm) | 80.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 3.6614" |
| Cutting Diameter Maximum (mm) | 93.00mm |
| Connection Diameter (Decimal Inch) | 1.2598" |
| Connection Diameter (mm) | 32.00mm |
| Tool Entering Angle ( Degree) | 8.8189 Degree |
| Application | Chamfering | Facing |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 5 |
| Number of Inserts | 5 |
| Shank Type | Standard Length |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
3-5/32 - 3-21/32"
Cutting Diameter (Decimal Inch):
3.1496 - 3.6614"
Cutting Diameter (mm):
80.00 - 93.00mm
Maximum Depth of Cut (Inch):
15/64"
Maximum Depth of Cut (Decimal Inch):
0.2362"
Maximum Depth of Cut (mm):
6mm
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
1.2598"
Shank Diameter (mm):
32.00mm
Number of Cutter Inserts:
5
Toolholder Style:
MFPN
