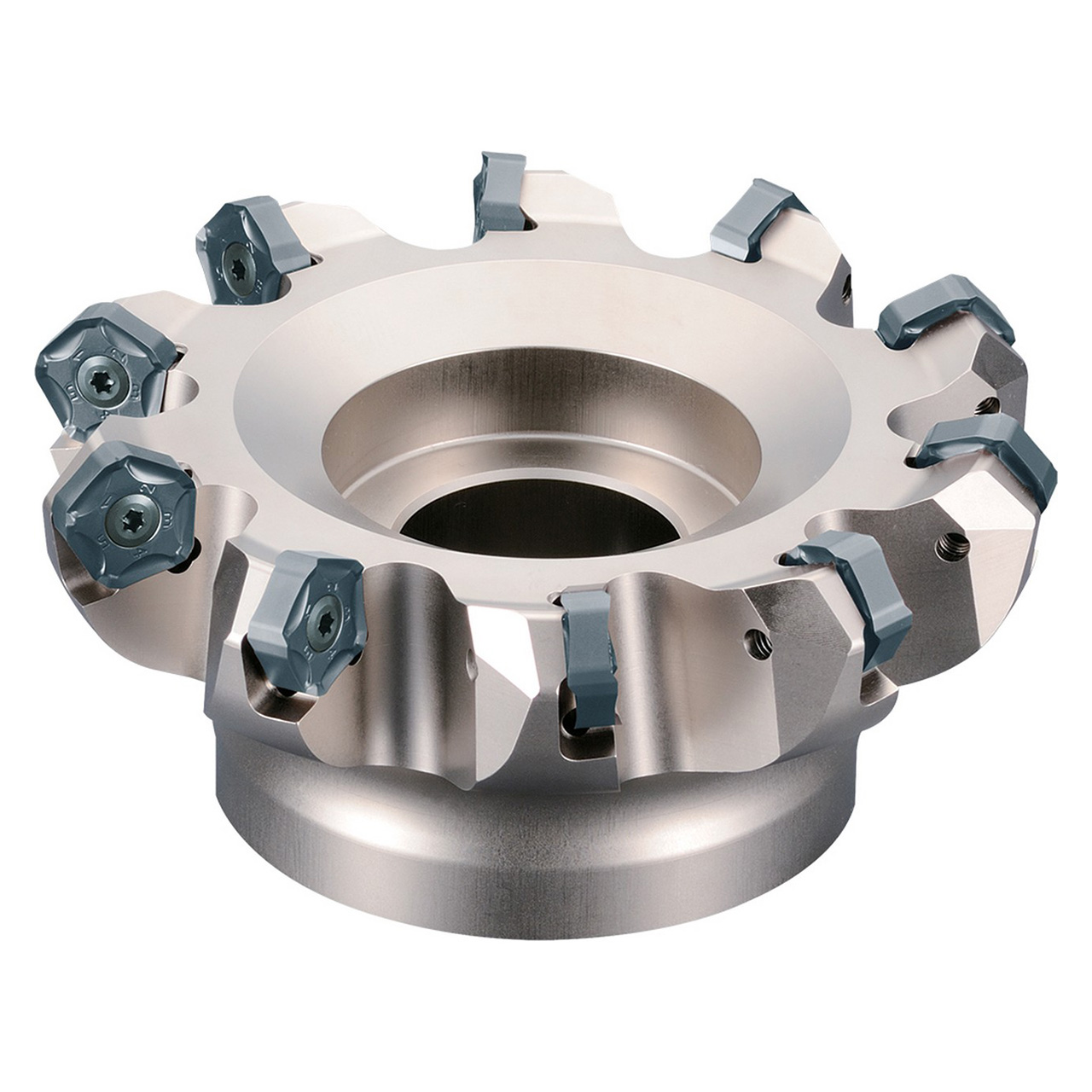

Features:
| EDP Number | THN04471 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362" |
| Cutting Diameter (Decimal Inch) | 3.9370 - 4.4488" |
| Cutting Diameter (mm) | 100.00 - 113.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 3.9370" |
| Cutting Diameter Minimum (mm) | 100.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 4.4488" |
| Cutting Diameter Maximum (mm) | 113.00mm |
| Cutting Diameter Maximum (mm) | 1.2500" |
| Connection Bore Diameter (mm) | 31.75mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.7559" |
| Contact Surface Diameter Machine Side (mm) | 70.00mm |
| Tool Entering Angle ( Degree) | 45 Degree |

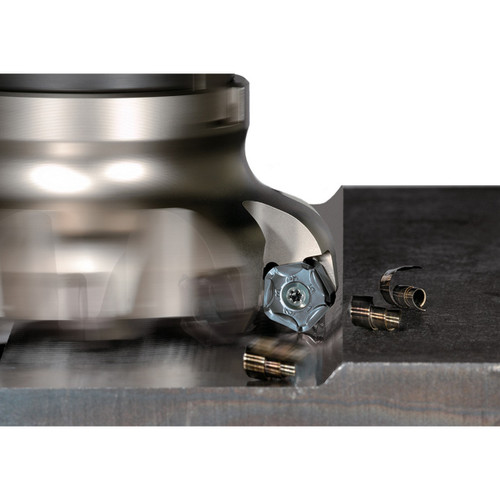

| Application | Chamfering, Facing |
| Cutter Pitch | Extra Fine Pitch |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 10 |
| Number of Inserts | 10 |
