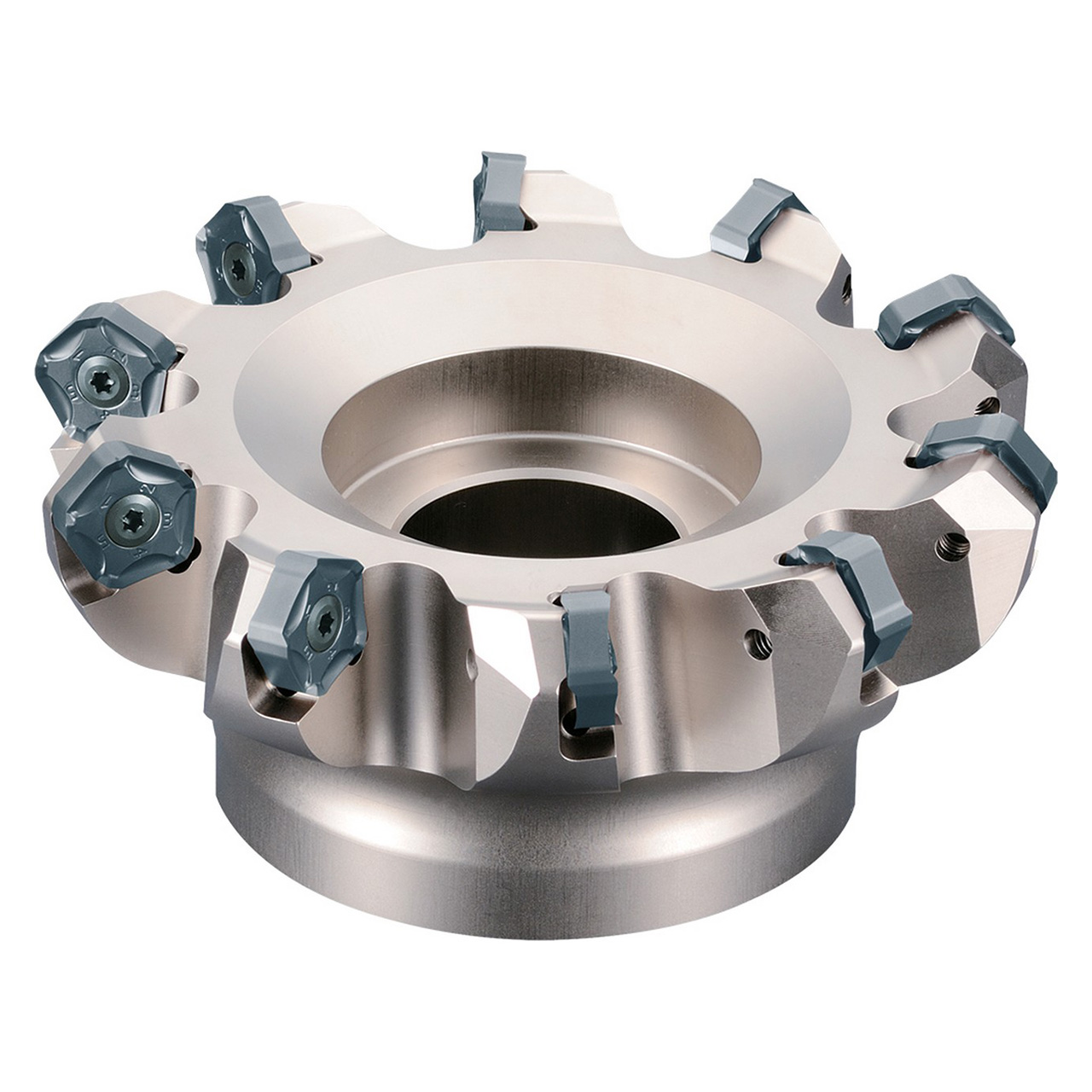

Features:
- 45 Degree Lead angle face mill
- Application: facing, chamfering
- Economical double-sided 10-edge inserts
- Reduced chattering with low cutting forces due to curved cutting edge design
- Suppresses fracturing with dual angle edge design
Product Specifications
| EDP Number | THN04503 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362" |
| Cutting Diameter (Decimal Inch) | 4.9213 - 5.4331" |
| Cutting Diameter (mm) | 125.00 - 138.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 4.9213" |
| Cutting Diameter Minimum (mm) | 125.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 5.4331" |
| Cutting Diameter Maximum (mm) | 138.00mm |
| Cutting Diameter Maximum (mm) | 1.5748" |
| Connection Bore Diameter (mm) | 40.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 3.4252" |
| Contact Surface Diameter Machine Side (mm) | 87.00mm |
| Tool Entering Angle ( Degree) | 45 Degree |
| Application | Chamfering, Facing |
| Cutter Pitch | Extra Fine Pitch |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 13 |
| Number of Inserts | 13 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
5-7/16"
Cutting Diameter (Decimal Inch):
5.4331"
Cutting Diameter (mm):
138.00mm
Maximum Depth of Cut (Inch):
15/64"
Maximum Depth of Cut (Decimal Inch):
0.2362"
Maximum Depth of Cut (mm):
6mm
Arbor Hole Diameter (Inch):
1-37/64"
Arbor Hole Diameter (Decimal Inch):
1.5748"
Arbor Hole Diameter (mm):
40.00mm
Series:
MFPN;Cutter Style=MFPN"
Number of Cutter Inserts:
13
