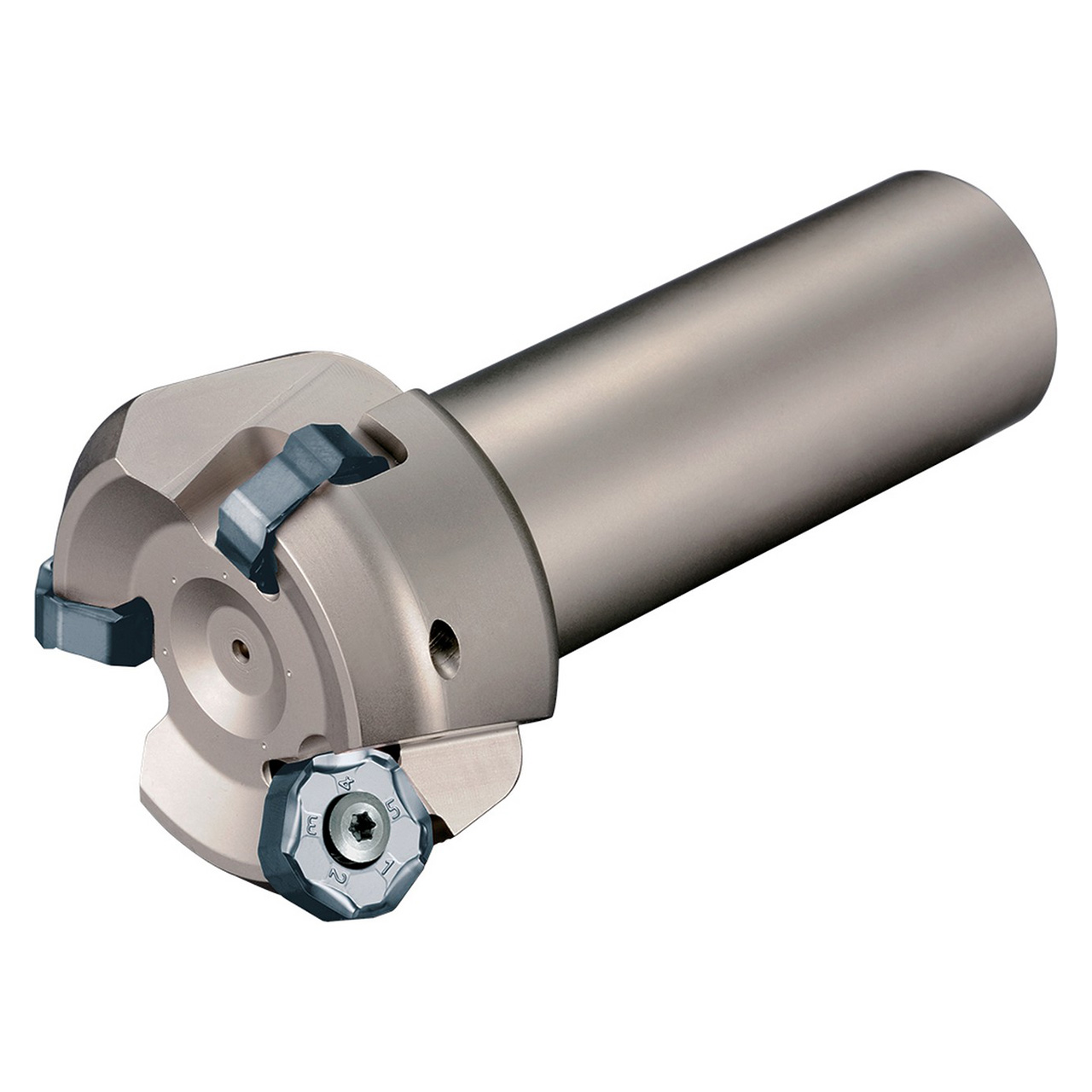

Features:
- Right-Hand, standard length, 45 Degree lead angle end mill
- Facing, chamfering applications
- Compatible with PNMU1205, PNEU1205 inserts
Product Specifications
| EDP Number | THN04541 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362" |
| Cutting Diameter (Decimal Inch) | 2.5000 - 2.8098" |
| Cutting Diameter (mm) | 63.50 - 71.37mm |
| Cutting Diameter Minimum (Decimal Inch) | 2.5000" |
| Cutting Diameter Minimum (mm) | 63.50mm |
| Cutting Diameter Maximum (Decimal Inch) | 2.8098" |
| Cutting Diameter Maximum (mm) | 71.37mm |
| Connection Diameter (Decimal Inch) | 1.2500" |
| Connection Diameter (mm) | 31.75mm |
| Tool Entering Angle ( Degree) | 45 Degree |
| Application | Chamfering | Facing |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 4 |
| Number of Inserts | 4 |
| Shank Type | Standard Length |
| Weldon Flat | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
2-1/2 - 2-13/16"
Cutting Diameter (Decimal Inch):
2.5000 - 2.8098"
Cutting Diameter (mm):
63.50 - 71.37mm
Maximum Depth of Cut (Inch):
15/64"
Maximum Depth of Cut (Decimal Inch):
0.2362"
Maximum Depth of Cut (mm):
6mm
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
1.2500"
Shank Diameter (mm):
31.75mm
Number of Cutter Inserts:
4
Toolholder Style:
MFPN
interval quantity:
1
