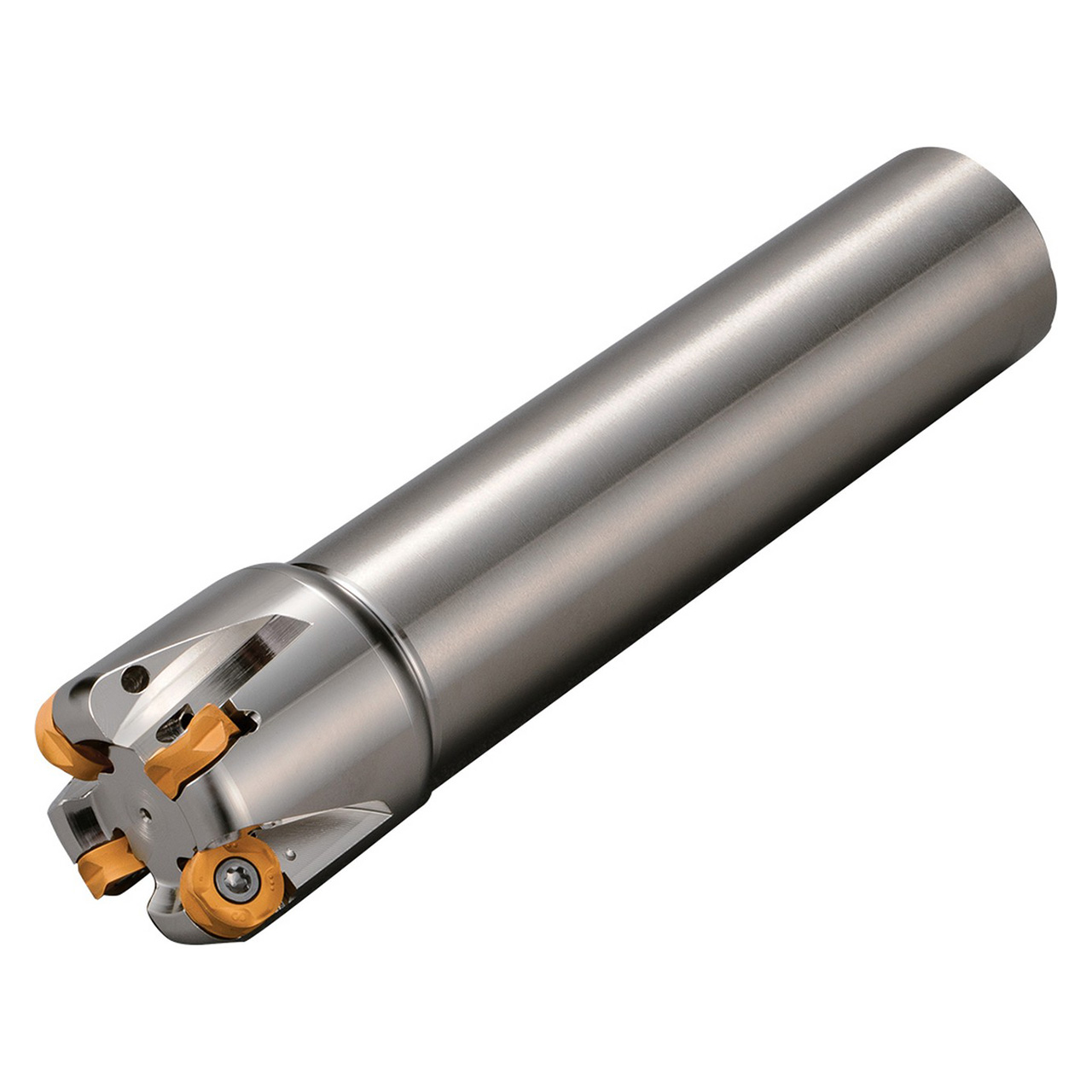

Kyocera Precision Tools THN06162 | MRW40S32162T200 1.5748" Diameter x 0.3150" Max Depth of Cut 2 Flute Steel Radius End Mill

$680.79 $565.06
(You save $115.73)
Brand:
Kyocera Precision Tools
Toolholder Style:
MRW
Number of Cutter Inserts:
2
Maximum Depth of Cut (Inch):
5/16"
Maximum Depth of Cut (Decimal Inch):
0.3150"
Maximum Depth of Cut (mm):
8.00mm
interval quantity:
1
SKU:
23233467
UPC:
Weight:
3.78 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Related Products

Features:

  • Economical double-sided 8-edge inserts
  • Combined sharpness and strength with improved edge strength due to obtuse edge shape
  • Lower cutting forces equivalent to positive inserts
  • Flat lock structure prevents insert rotation during machining to provide stable cutting
  • CA6535 and PR1535 insert grades for difficult-to-cut material

Product Specifications
EDP NumberTHN06162
Maximum Depth of Cut (Decimal Inch)0.3150"
Cutting Diameter (Decimal Inch)1.5748"
Cutting Diameter (mm)40.00mm
Cutting Diameter Minimum (Decimal Inch)1.5748"
Cutting Diameter Minimum (mm)40.00mm
Cutting Diameter Maximum (Decimal Inch)1.5748"
Cutting Diameter Maximum (mm)40.00mm
Connection Diameter (Decimal Inch)1.2598"
Connection Diameter (mm)32.00mm
ApplicationContouring | Facing | Plunging | Profiling | Shouldering
Coolant Through (Yes/No)Yes
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes2
Number of Inserts2
Shank TypeLong Length
