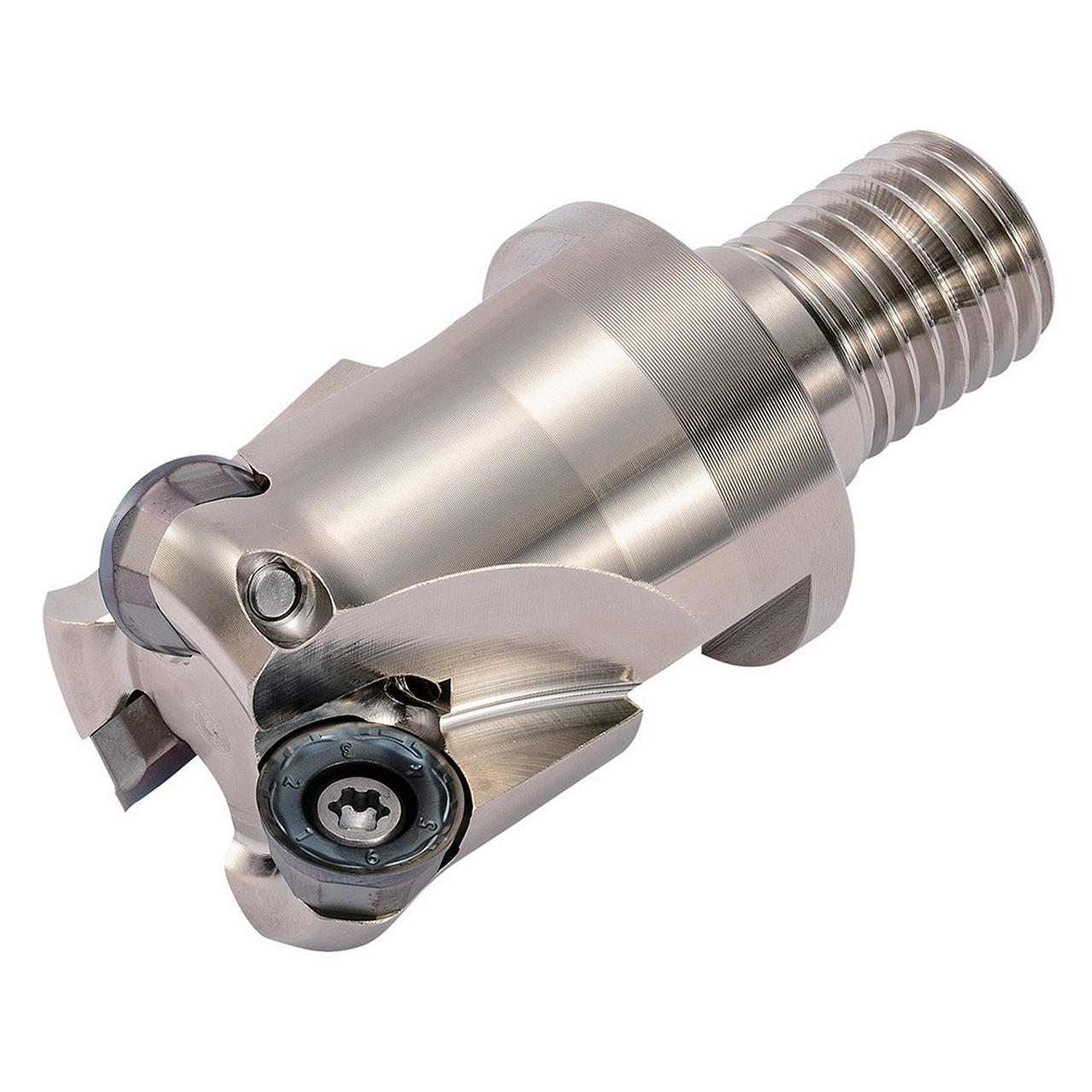

Kyocera Precision Tools THN07053 | MRX20M10102T 0.787" Diameter x 0.158" Max Depth of Cut x 0.591" Shank Height 2 Flute Steel Radius End Mill

SKU: 23233521 Weight: 0.39 LBS Minimum Purchase: 1 unit
UPC:
$407.28 $338.04
(You save $69.24)
Shipping: Free Shipping

About This Item

Features:

  • Economical positive round inserts with 6 usable cutting edges
  • Low cutting force with Kyocera's helical cutting edge design
  • CA6535 and PR1535 insert grades for difficult-to-cut material
  • R4, R5, R6 and R8 radius sizes
  • Flat lock structure to hold insert firmly in place

Product Specifications
EDP NumberTHN07053
Maximum Depth of Cut (Decimal Inch)0.1575"
Cutting Diameter (Decimal Inch)0.7874"
Cutting Diameter (mm)20.00mm
Cutting Diameter Minimum (Decimal Inch)0.7874"
Cutting Diameter Minimum (mm)20.00mm
Cutting Diameter Maximum (Decimal Inch)0.7874"
Cutting Diameter Maximum (mm)20.00mm
Connection Diameter (Decimal Inch)0.4134"
Connection Diameter (mm)10.50mm
Contact Surface Diameter Machine Side (Decimal Inch)0.7362"
Contact Surface Diameter Machine Side (mm)18.70mm
Shank Height (Decimal Inch)0.5906"
Shank Height (mm)15.00mm
ApplicationFacing | Pocketing | Profiling | Ramping | Shouldering | Slotting
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes2
Number of Inserts2
Shank TypeModular Connection
