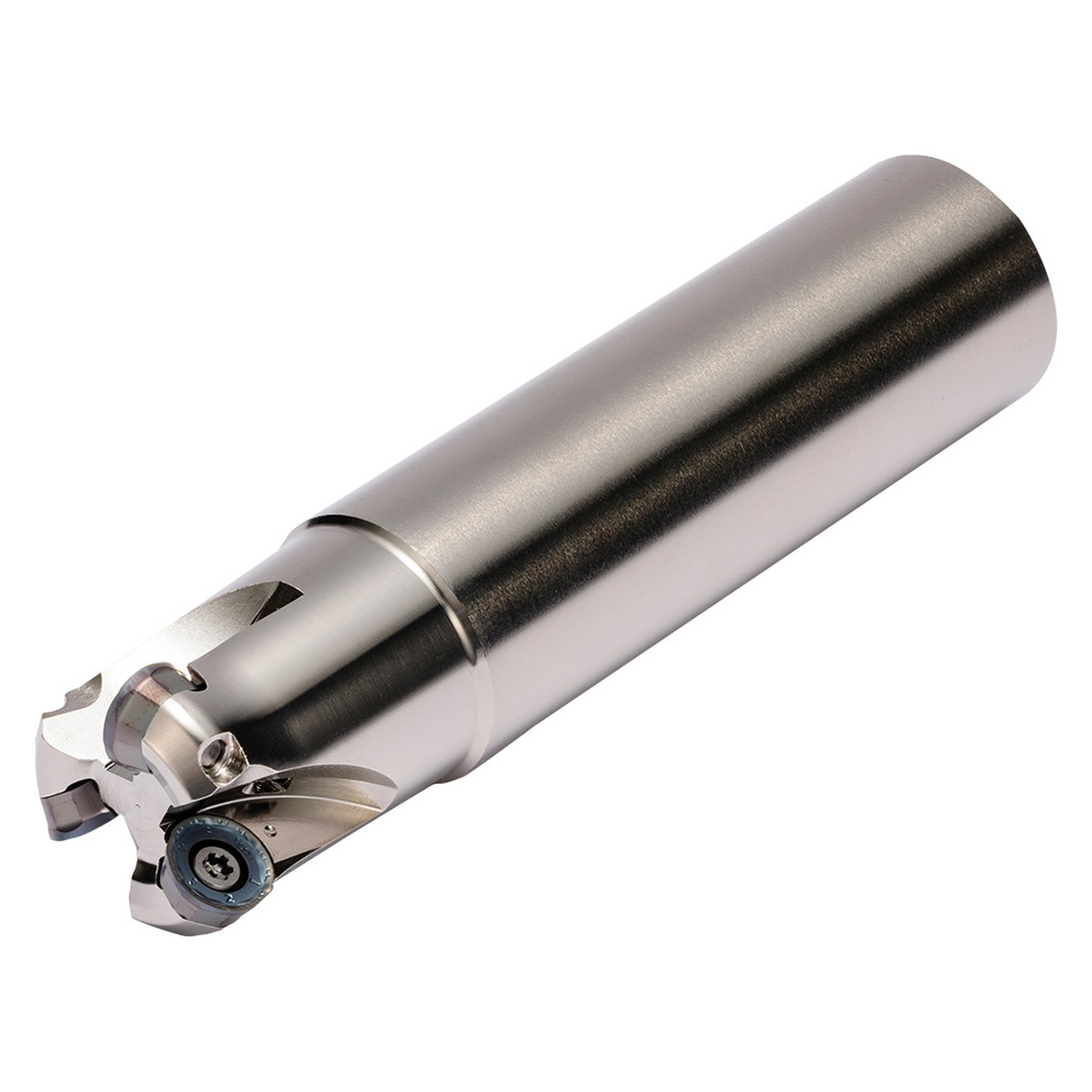

Features:
- Economical positive round inserts with 6 usable cutting edges
- Low cutting force with Kyocera's helical cutting edge design
- CA6535 and PR1535 insert grades for difficult-to-cut material
- R4, R5, R6 and R8 radius sizes
- Flat lock structure to hold insert firmly in place
Product Specifications
| EDP Number | THN07120 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575" |
| Cutting Diameter (Decimal Inch) | 0.6299" |
| Cutting Diameter (mm) | 16.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 0.6299" |
| Cutting Diameter Minimum (mm) | 16.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 0.6299" |
| Cutting Diameter Maximum (mm) | 16.00mm |
| Connection Diameter (Decimal Inch) | 0.6299" |
| Connection Diameter (mm) | 16.00mm |
| Application | Facing | Pocketing | Profiling | Ramping | Shouldering | Slotting |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 2 |
| Number of Inserts | 2 |
| Shank Type | Long Length |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutter Diameter (Inch):
5/8"
Cutter Diameter (Decimal Inch):
0.6299"
Cutter Diameter (mm):
16.00mm
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6299"
Shank Diameter (mm):
16.00mm
Toolholder Style:
MRX
Number of Cutter Inserts:
2
Maximum Depth of Cut (Inch):
5/32"
Maximum Depth of Cut (Decimal Inch):
0.1575"
Maximum Depth of Cut (mm):
4.00mm
