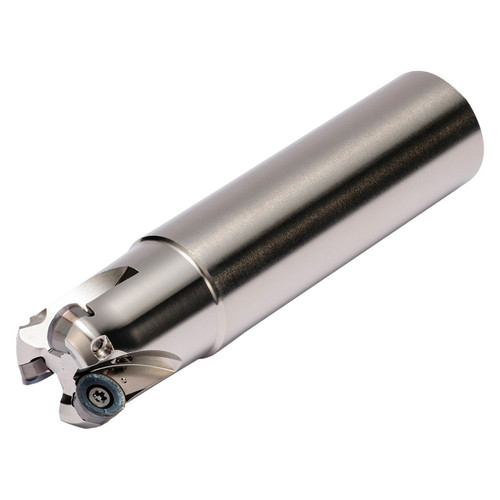

Kyocera Precision Tools THN07430 | MRX1250W125123T 1.2500" Diameter x 0.2362" Max Depth of Cut 3 Flute Steel Radius End Mill

$545.30 $452.60
(You save $92.70)
Brand:
Kyocera Precision Tools
Toolholder Style:
MRX
Number of Cutter Inserts:
3
Maximum Depth of Cut (Inch):
15/64"
Maximum Depth of Cut (Decimal Inch):
0.2362"
Maximum Depth of Cut (mm):
6.00mm
interval quantity:
1
SKU:
23233599
UPC:
Weight:
2.93 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Related Products

Features:

  • Economical positive round inserts with 6 usable cutting edges
  • Low cutting force with Kyocera's helical cutting edge design
  • CA6535 and PR1535 insert grades for difficult-to-cut material
  • R4, R5, R6 and R8 radius sizes
  • Flat lock structure to hold insert firmly in place

Product Specifications
EDP NumberTHN07430
Maximum Depth of Cut (Decimal Inch)0.2362"
Cutting Diameter (Decimal Inch)1.2500"
Cutting Diameter (mm)31.75mm
Cutting Diameter Minimum (Decimal Inch)1.2500"
Cutting Diameter Minimum (mm)31.75mm
Cutting Diameter Maximum (Decimal Inch)1.2500"
Cutting Diameter Maximum (mm)31.75mm
Connection Diameter (Decimal Inch)1.2500"
Connection Diameter (mm)31.75mm
ApplicationFacing | Pocketing | Profiling | Ramping | Shouldering | Slotting
Coolant Through (Yes/No)Yes
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes3
Number of Inserts3
Shank TypeStandard Length
Weldon FlatYes
