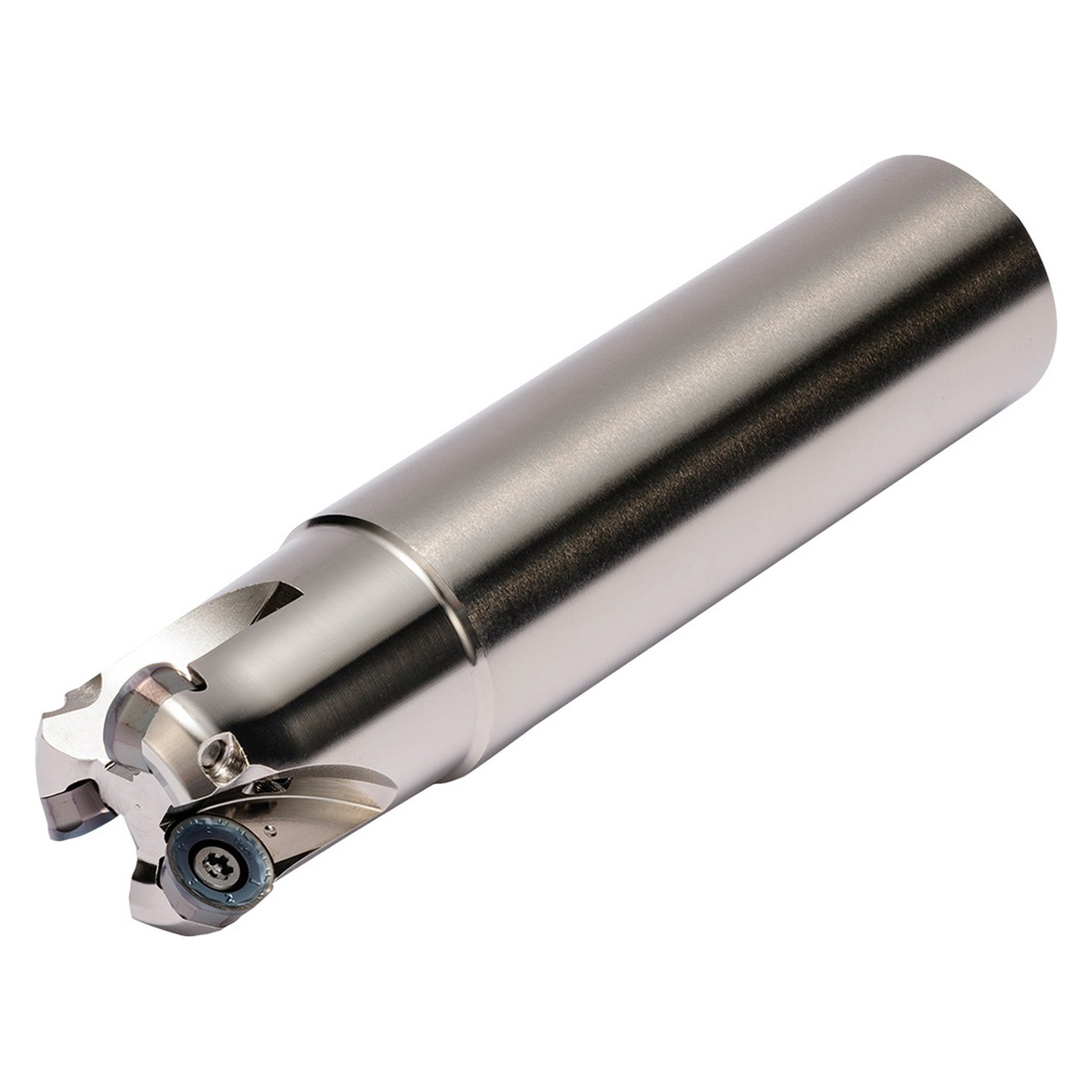

Kyocera Precision Tools THN07431 | MRX1500W125124T 1.500" Diameter x 0.236" Max Depth of Cut 4 Flute Steel Radius End Mill

SKU: 23233600 Weight: 2.24 LBS Minimum Purchase: 1 unit
UPC:
$749.78 $622.32
(You save $127.46)
Shipping: Free Shipping

About This Item

Features:

  • Economical positive round inserts with 6 usable cutting edges
  • Low cutting force with Kyocera's helical cutting edge design
  • CA6535 and PR1535 insert grades for difficult-to-cut material
  • R4, R5, R6 and R8 radius sizes
  • Flat lock structure to hold insert firmly in place

Product Specifications
EDP NumberTHN07431
Maximum Depth of Cut (Decimal Inch)0.2362"
Cutting Diameter (Decimal Inch)1.5000"
Cutting Diameter (mm)38.10mm
Cutting Diameter Minimum (Decimal Inch)1.5000"
Cutting Diameter Minimum (mm)38.10mm
Cutting Diameter Maximum (Decimal Inch)1.5000"
Cutting Diameter Maximum (mm)38.10mm
Connection Diameter (Decimal Inch)1.2500"
Connection Diameter (mm)31.75mm
ApplicationFacing | Pocketing | Profiling | Ramping | Shouldering | Slotting
Coolant Through (Yes/No)Yes
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes4
Number of Inserts4
Shank TypeStandard Length
Weldon FlatYes
