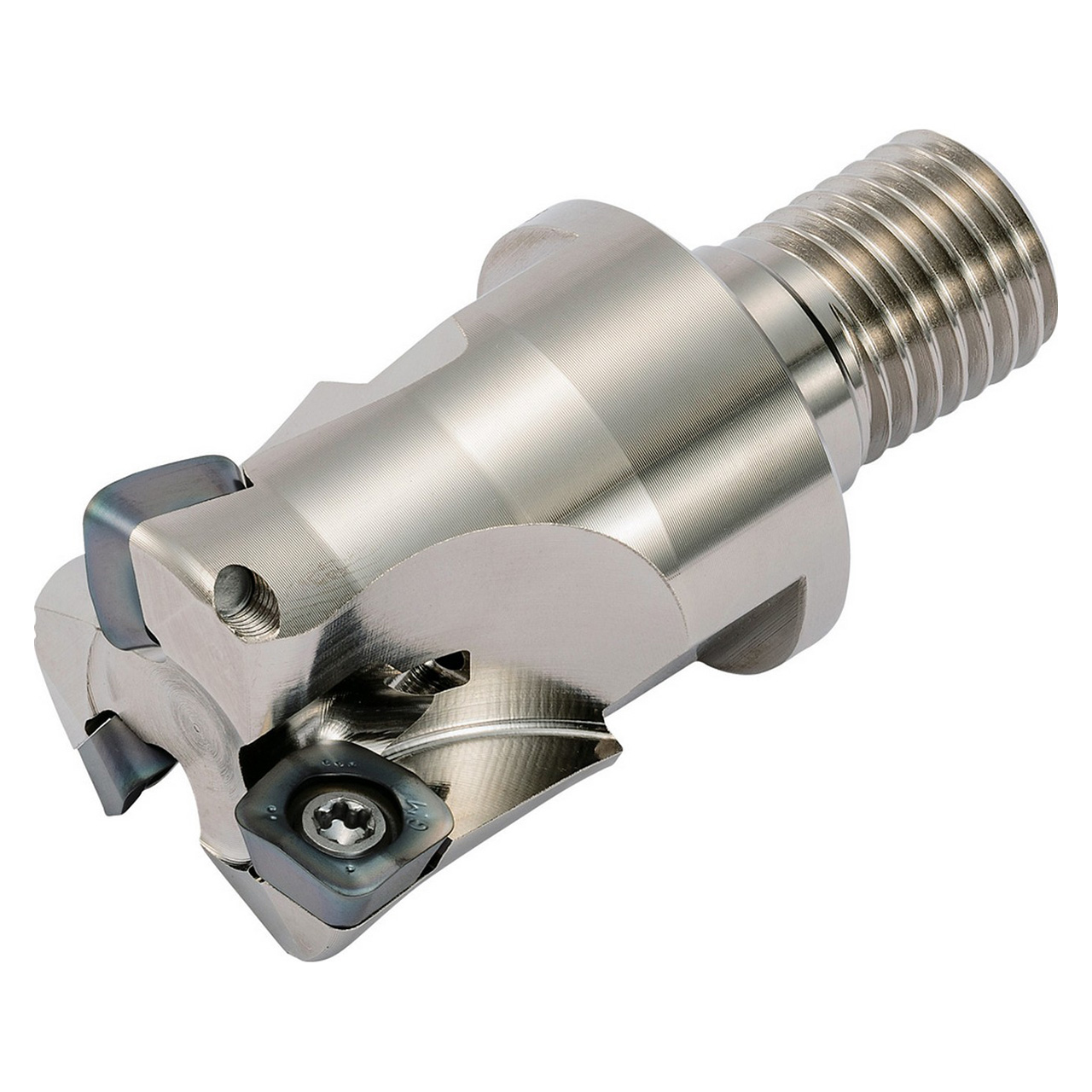

Features:
- Reduce cycle time during roughing applications
- Reduced chattering with convex cutting edge design
- 3 different insert designs for a variety of machining operations
- LD chipbreaker can be used for both large D.O.C. and high-feed machining
- Compatible with (3) SOMT10 style inserts
Product Specifications
| EDP Number | THN07555 |
| Maximum Depth of Cut (Decimal Inch) | 0.0591" |
| Cutting Diameter (Decimal Inch) | 0.7087 - 1.3780" |
| Cutting Diameter (mm) | 18.00 - 35.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 0.7087" |
| Cutting Diameter Minimum (mm) | 18.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 1.3780" |
| Cutting Diameter Maximum (mm) | 35.00mm |
| Connection Diameter (Decimal Inch) | 0.6693" |
| Connection Diameter (mm) | 17.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.1811" |
| Contact Surface Diameter Machine Side (mm) | 30.00mm |
| Shank Height (Decimal Inch) | 0.9449" |
| Shank Height (mm) | 24.00mm |
| Application | Facing | Helical Milling | High Feed | Plunging | Ramping | Shouldering | Slotting |
| Coolant Through (Yes/No) | Yes |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 3 |
| Number of Inserts | 3 |
| Shank Type | Modular Connection |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Series:
MFHR;Cutting Diameter (Inch)=1-3/8"""
Cutting Diameter (Decimal Inch):
1.3780"
Cutting Diameter (mm):
35.00mm
Insert Style:
MFH
Maximum Depth of Cut (Inch):
1/16"
Maximum Depth of Cut (Decimal Inch):
0.0591"
Maximum Depth of Cut (mm):
1.5mm
