Features:

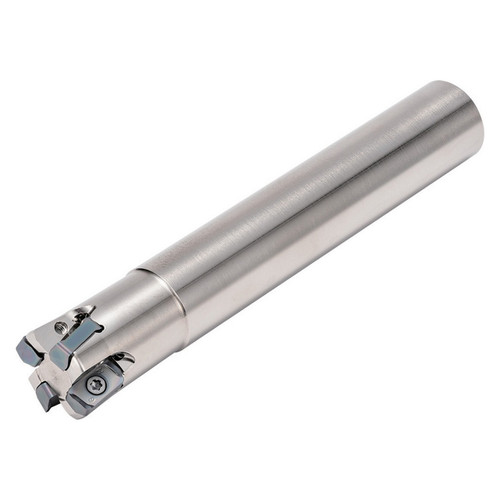

| EDP Number | THN07623 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394" |
| Cutting Diameter (Decimal Inch) | 0.4724 - 0.7874" |
| Cutting Diameter (mm) | 12.00 - 20.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 0.4724" |
| Cutting Diameter Minimum (mm) | 12.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 0.7874" |
| Cutting Diameter Maximum (mm) | 20.00mm |
| Connection Diameter (Decimal Inch) | 0.7874" |
| Connection Diameter (mm) | 20.00mm |
| Tool Entering Angle ( Degree) | 10 Degree |
| Application | Facing | Helical Milling | Plunging | Ramping | Shouldering | Slotting |
| Coolant Through (Yes/No) | Yes |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 3 |
| Number of Inserts | 3 |
| Shank Type | Standard Length |
| Weldon Flat | Yes |
