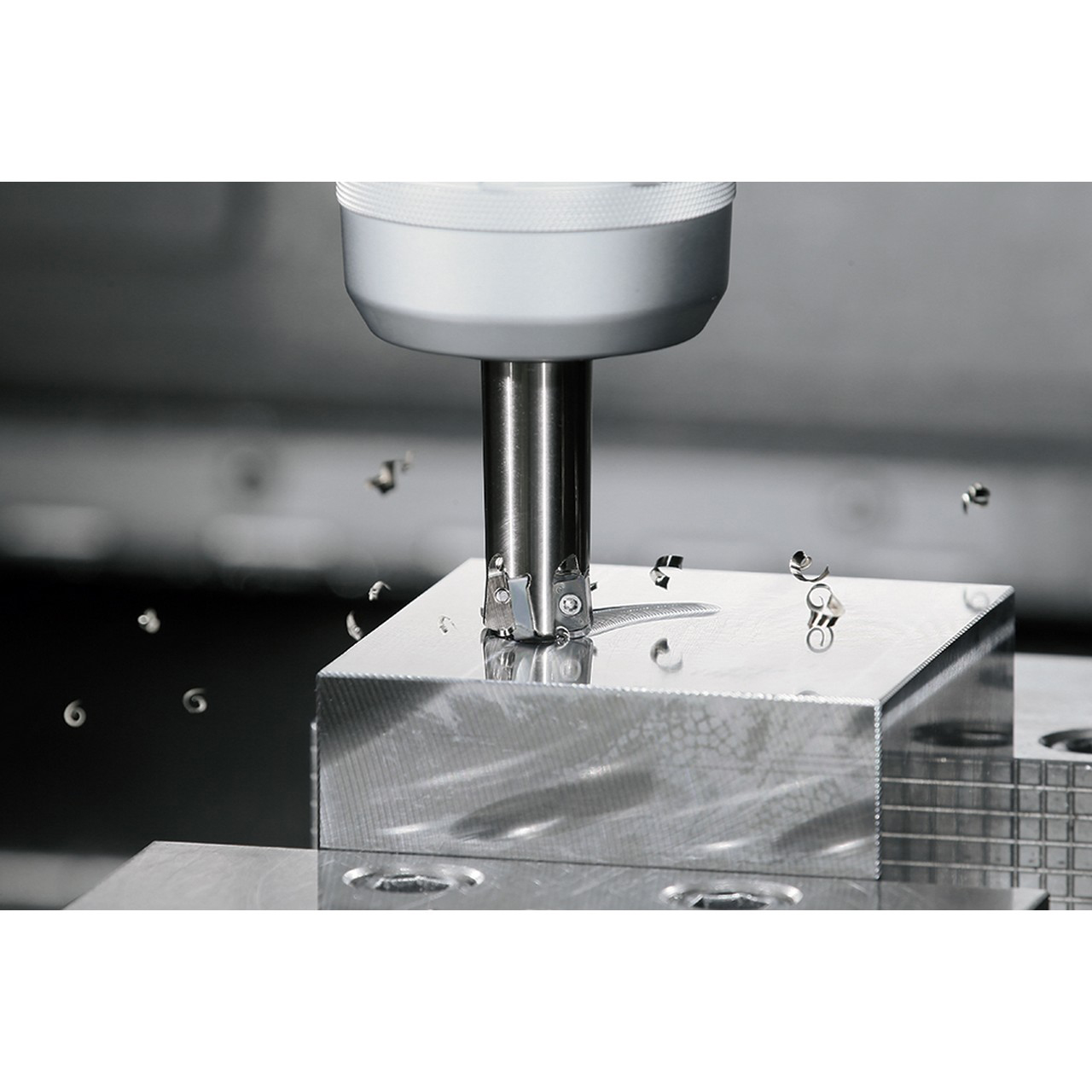

Kyocera Precision Tools THN07652 | MFH16S16032T150 0.3150-0.6299" Diameter 2 Flute Steel Indexable High-Feed End Mill

$425.76 $353.38
(You save $72.38)
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
5/8"
Cutting Diameter (Decimal Inch):
0.6299"
Cutting Diameter (mm):
16.00mm
Maximum Depth of Cut (Inch):
3/64"
Maximum Depth of Cut (Decimal Inch):
0.0394"
Maximum Depth of Cut (mm):
1mm
Shank Type:
Long Length
Shank Diameter (Decimal Inch):
0.6299"
Shank Diameter (mm):
16.00mm
Number of Cutter Inserts:
2
Toolholder Style:
MFH
interval quantity:
1
SKU:
23233681
UPC:
Weight:
0.60 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Related Products

Features:

  • Reduce cycle time during roughing applications
  • Economical inserts with 4 cutting edges
  • MFH-mini controls chip biting with convex cutting edge design
  • Fine pitch availability for efficient machining
  • Compatible with (2) LOGU03 style inserts

Product Specifications
EDP NumberTHN07652
Maximum Depth of Cut (Decimal Inch)0.0394"
Cutting Diameter (Decimal Inch)0.3150 - 0.6299"
Cutting Diameter (mm)8.00 - 16.00mm
Cutting Diameter Minimum (Decimal Inch)0.3150"
Cutting Diameter Minimum (mm)8.00mm
Cutting Diameter Maximum (Decimal Inch)0.6299"
Cutting Diameter Maximum (mm)16.00mm
Connection Diameter (Decimal Inch)0.6299"
Connection Diameter (mm)16.00mm
Tool Entering Angle ( Degree)10 Degree
ApplicationFacing | Helical Milling | Plunging | Ramping | Shouldering | Slotting
Coolant Through (Yes/No)Yes
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes2
Number of Inserts2
Shank TypeLong Length
