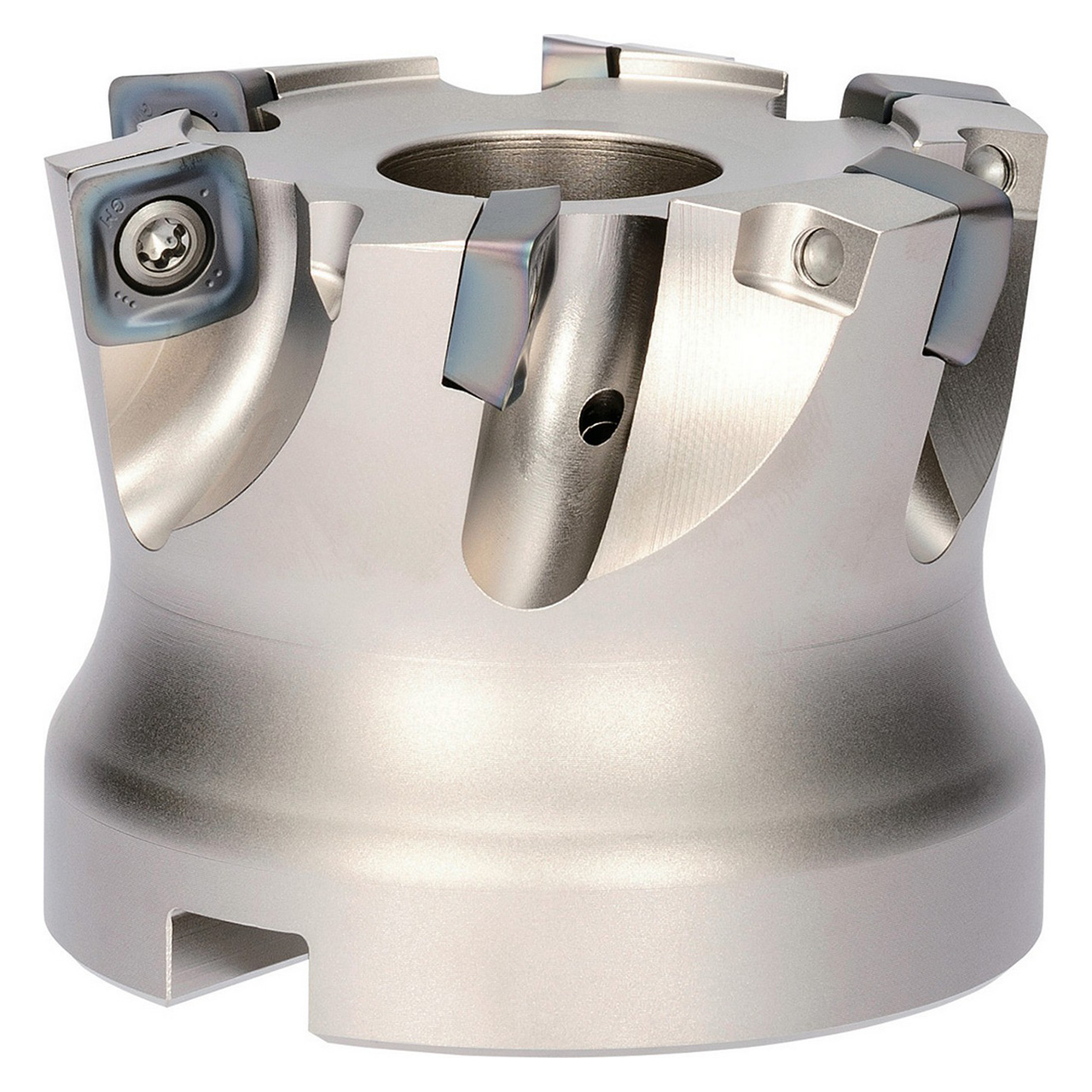

Features:
- 10 Degree Lead angle high feed face mill

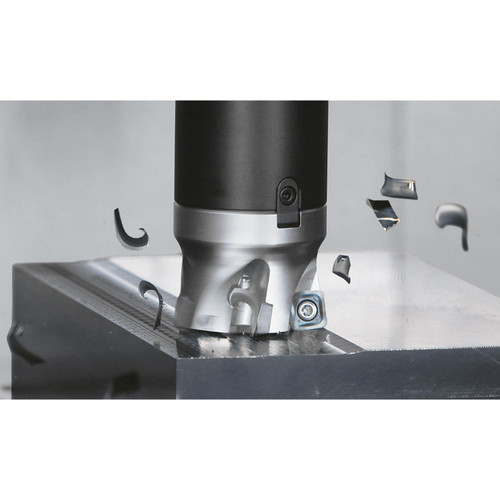

- Application: facing, shouldering, slotting, ramping, helical milling, plunging
- Clamp screw insert holding design
- Compatible with (7) SOMT10 inserts
- Reduced chattering with convex cutting edge design controls initial impact when entering the workpiece
Product Specifications
| EDP Number | THN07677 |
| Maximum Depth of Cut (Decimal Inch) | 0.0591" |
| Shank Width (Decimal Inch) | 0.9843" |
| Cutting Diameter (Decimal Inch) | 2.4803 - 3.1496" |
| Cutting Diameter (mm) | 63.00 - 80.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 2.4803" |
| Cutting Diameter Minimum (mm) | 63.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 3.1496" |
| Cutting Diameter Maximum (mm) | 80.00mm |
| Cutting Diameter Maximum (mm) | 1.2500" |
| Connection Bore Diameter (mm) | 31.75mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.9921" |
| Contact Surface Diameter Machine Side (mm) | 76.00mm |
| Tool Entering Angle ( Degree) | 10 Degree |
| Application | Facing | Helical Milling | Plunging | Ramping | Shouldering | Slotting |
| Coolant Through (Yes/No) | Yes |
| Cutter Pitch | Standard Pitch |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 7 |
| Number of Inserts | 7 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
3-5/32"
Cutting Diameter (Decimal Inch):
3.1496"
Cutting Diameter (mm):
80.00mm
Maximum Depth of Cut (Inch):
1/16"
Maximum Depth of Cut (Decimal Inch):
0.0591"
Maximum Depth of Cut (mm):
1.5mm
Arbor Hole Diameter (Inch):
1-1/4"
Arbor Hole Diameter (Decimal Inch):
1.2500"
Arbor Hole Diameter (mm):
31.75mm
Series:
MFHR;Cutter Style=MFH"
Number of Cutter Inserts:
7
