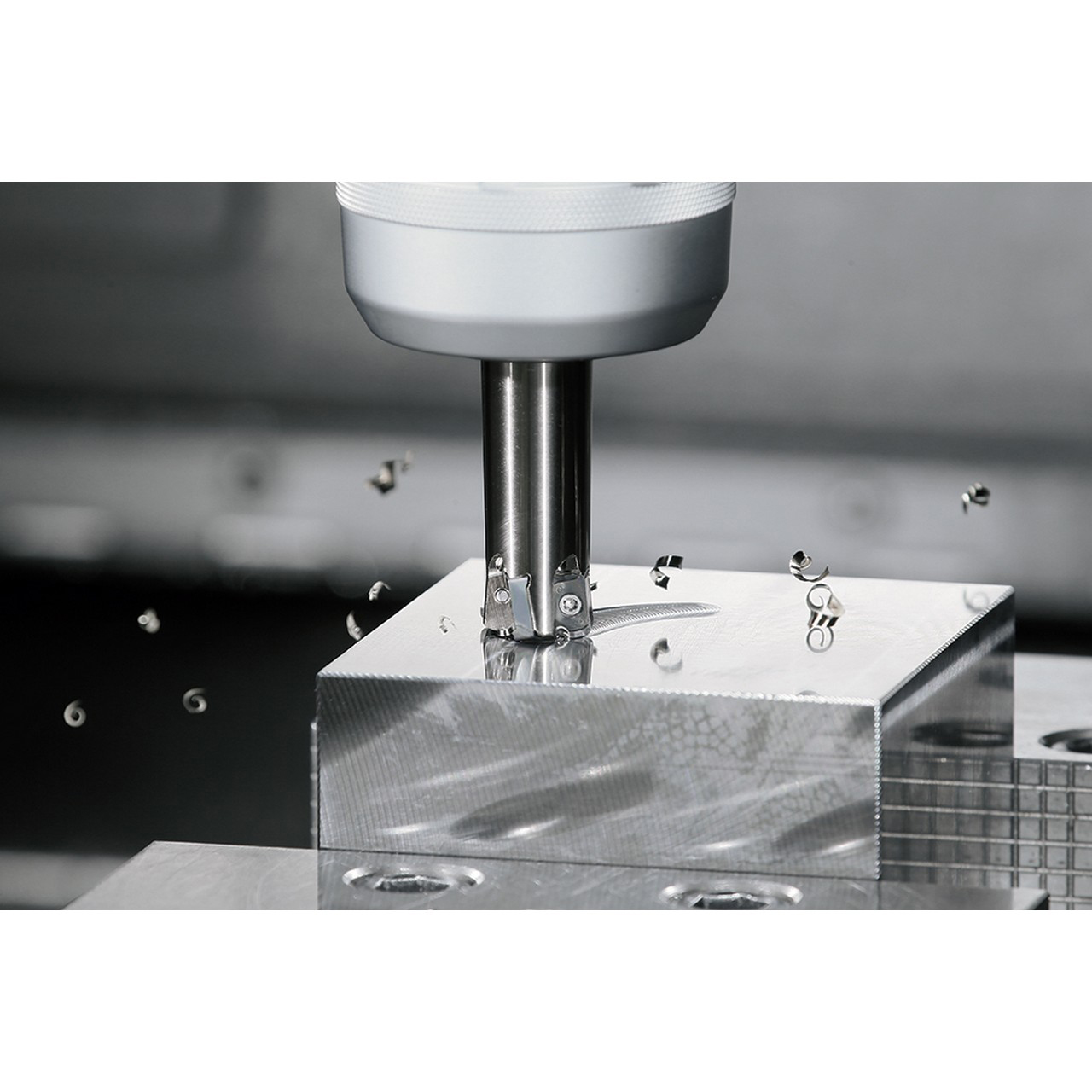

Kyocera Precision Tools THN07810 | MFH0625S625032T6 0.3098-0.6252" Diameter 2 Flute Steel Indexable High-Feed End Mill

$405.47 $336.54
(You save $68.93)
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
5/8"
Cutting Diameter (Decimal Inch):
0.6252"
Cutting Diameter (mm):
15.88mm
Maximum Depth of Cut (Inch):
3/64"
Maximum Depth of Cut (Decimal Inch):
0.0394"
Maximum Depth of Cut (mm):
1mm
Shank Type:
Long Length
Shank Diameter (Decimal Inch):
0.6252"
Shank Diameter (mm):
15.88mm
Number of Cutter Inserts:
2
Toolholder Style:
MFH
interval quantity:
1
SKU:
23045149
UPC:
Weight:
0.35 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Related Products

Features:

  • Reduce cycle time during roughing applications
  • Economical inserts with 4 cutting edges
  • MFH-mini controls chip biting with convex cutting edge design
  • Fine pitch availability for efficient machining
  • Compatible with (2) LOGU03 style inserts

Product Specifications
EDP NumberTHN07810
Maximum Depth of Cut (Decimal Inch)0.0394"
Maximum Depth of Cut (mm)12.50mm
Cutting Diameter (Decimal Inch)0.3098 - 0.6252"
Cutting Diameter (mm)7.87 - 15.88mm
Cutting Diameter Minimum (Decimal Inch)0.3098"
Cutting Diameter Minimum (mm)7.87mm
Cutting Diameter Maximum (Decimal Inch)0.6252"
Cutting Diameter Maximum (mm)15.88mm
Connection Diameter (Decimal Inch)0.6252"
Connection Diameter (mm)15.88mm
Tool Entering Angle ( Degree)10 Degree
ApplicationFacing | Helical Milling | Plunging | Ramping | Shouldering | Slotting
Coolant Through (Yes/No)Yes
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes2
Number of Inserts2
Shank TypeLong Length
