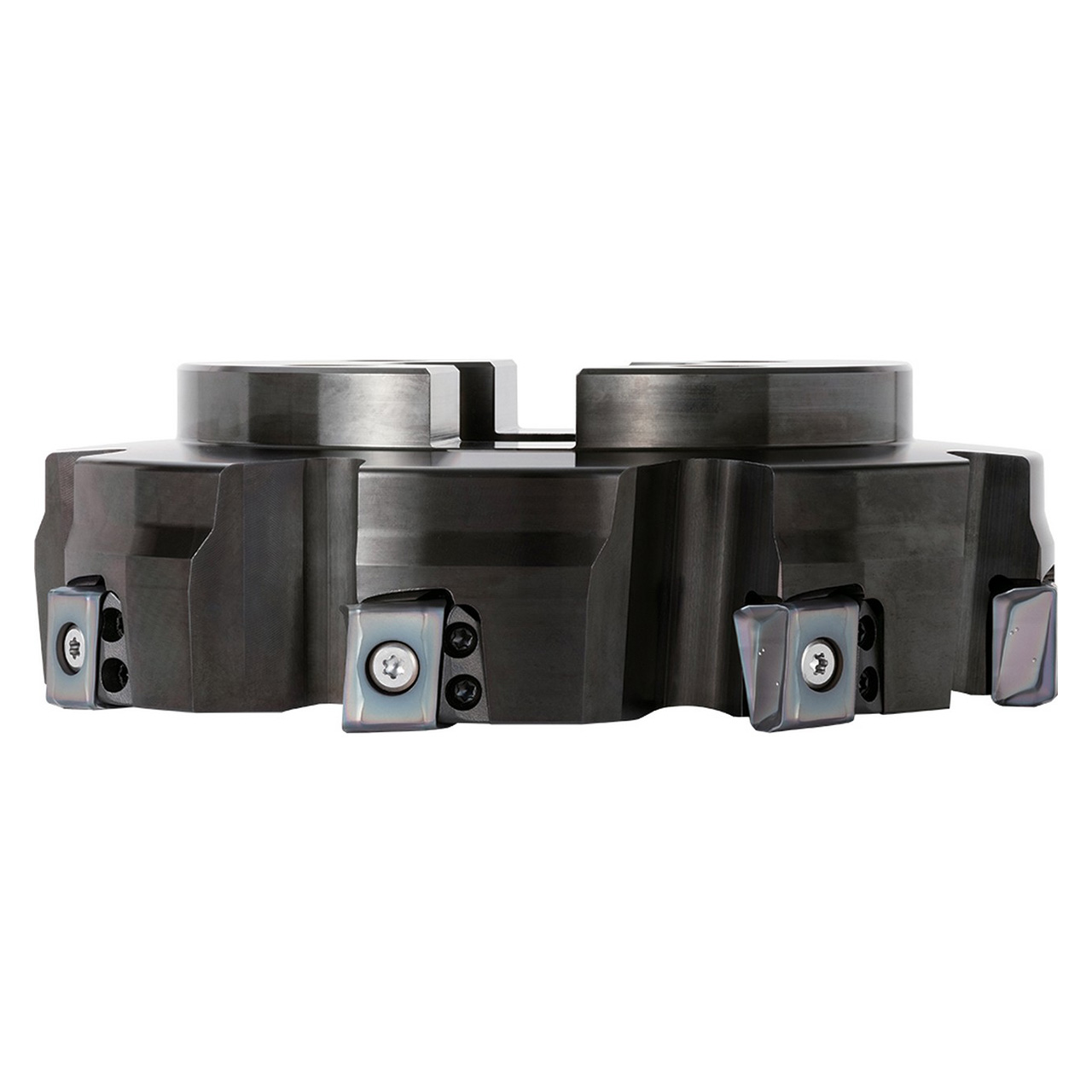

Kyocera Precision Tools THN08445 | MFLN90125R6TM 4.9213" Diameter x 90 Degree Angle 6 Flute Steel Indexable Face Mill

$1,191.69 $989.10
(You save $202.59)
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
4-59/64"
Cutting Diameter (Decimal Inch):
4.9213"
Cutting Diameter (mm):
125.00mm
Maximum Depth of Cut (Inch):
25/32"
Maximum Depth of Cut (Decimal Inch):
0.7874"
Maximum Depth of Cut (mm):
20mm
Arbor Hole Diameter (Inch):
1-37/64"
Arbor Hole Diameter (Decimal Inch):
1.5748"
Arbor Hole Diameter (mm):
40.00mm
Series:
MFLN;Cutter Style=MFLN"
Number of Cutter Inserts:
6
interval quantity:
1
SKU:
23233923
UPC:
Weight:
7.25 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

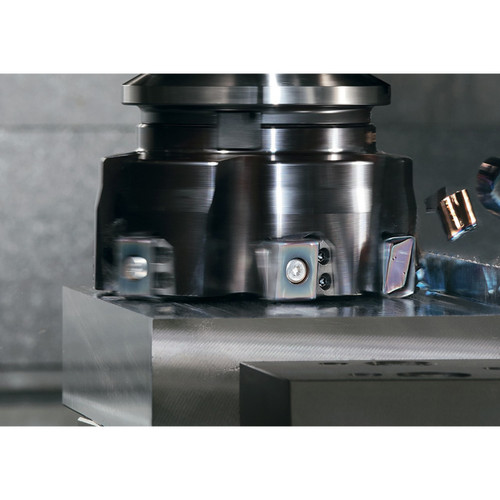

  • 90 Degree Lead angle face mill
  • Application: shouldering, facing
  • Rigid, heavy milling with tough 4-edge inserts for large depths of cut and high feed rates
  • Tangentially mounted inserts provide 2 cutting edges on both sides
  • 20mm long inserts offer increased rigidity

Product Specifications
EDP NumberTHN08445
Maximum Depth of Cut (Decimal Inch)0.7874"
Maximum Depth of Cut (mm)59.00mm
Cutting Diameter (Decimal Inch)4.9213"
Cutting Diameter (mm)125.00mm
Cutting Diameter Minimum (Decimal Inch)4.9213"
Cutting Diameter Minimum (mm)125.00mm
Cutting Diameter Maximum (Decimal Inch)4.9213"
Cutting Diameter Maximum (mm)125.00mm
Cutting Diameter Maximum (mm)1.5748"
Connection Bore Diameter (mm)40.00mm
Contact Surface Diameter Machine Side (Decimal Inch)3.5039"
Contact Surface Diameter Machine Side (mm)89.00mm
Tool Entering Angle ( Degree)90 Degree
ApplicationFacing, Shouldering
Coolant Through (Yes/No)Yes
Cutter PitchStandard Pitch
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes6
Number of Inserts6

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
