Features:

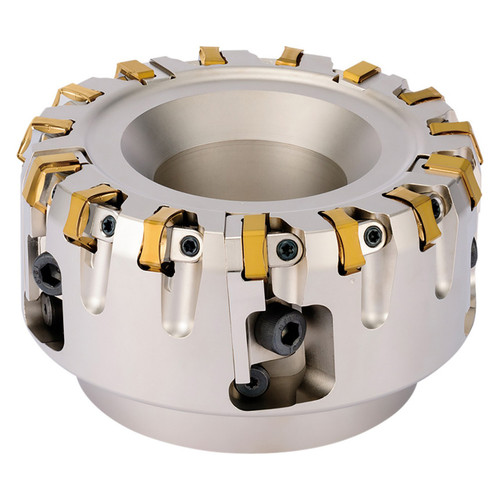

- 70 Degree Lead angle face mill
- Application: shouldering, facing, chamfering
- Rigid, heavy milling with tough 4-edge inserts for large depths of cut and high feed rates
- Tangentially mounted inserts provide 2 cutting edges on both sides
- 20mm long inserts offer increased rigidity
Product Specifications
| EDP Number | THN08451 |
| Maximum Depth of Cut (Decimal Inch) | 0.6693" |
| Maximum Depth of Cut (mm) | 37.00mm |
| Cutting Diameter (Decimal Inch) | 3.9370 - 4.4488" |
| Cutting Diameter (mm) | 100.00 - 113.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 3.9370" |
| Cutting Diameter Minimum (mm) | 100.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 4.4488" |
| Cutting Diameter Maximum (mm) | 113.00mm |
| Cutting Diameter Maximum (mm) | 1.2500" |
| Connection Bore Diameter (mm) | 31.75mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 3.0709" |
| Contact Surface Diameter Machine Side (mm) | 78.00mm |
| Tool Entering Angle ( Degree) | 70 Degree |
| Application | Chamfering, Facing, Shouldering |
| Coolant Through (Yes/No) | Yes |
| Cutter Pitch | Standard Pitch |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 4 |
| Number of Inserts | 4 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
4-29/64"
Cutting Diameter (Decimal Inch):
4.4488"
Cutting Diameter (mm):
113.00mm
Maximum Depth of Cut (Inch):
43/64"
Maximum Depth of Cut (Decimal Inch):
0.6693"
Maximum Depth of Cut (mm):
17mm
Arbor Hole Diameter (Inch):
1-1/4"
Arbor Hole Diameter (Decimal Inch):
1.2500"
Arbor Hole Diameter (mm):
31.75mm
Series:
MFLN;Cutter Style=MFLN"
Number of Cutter Inserts:
4
