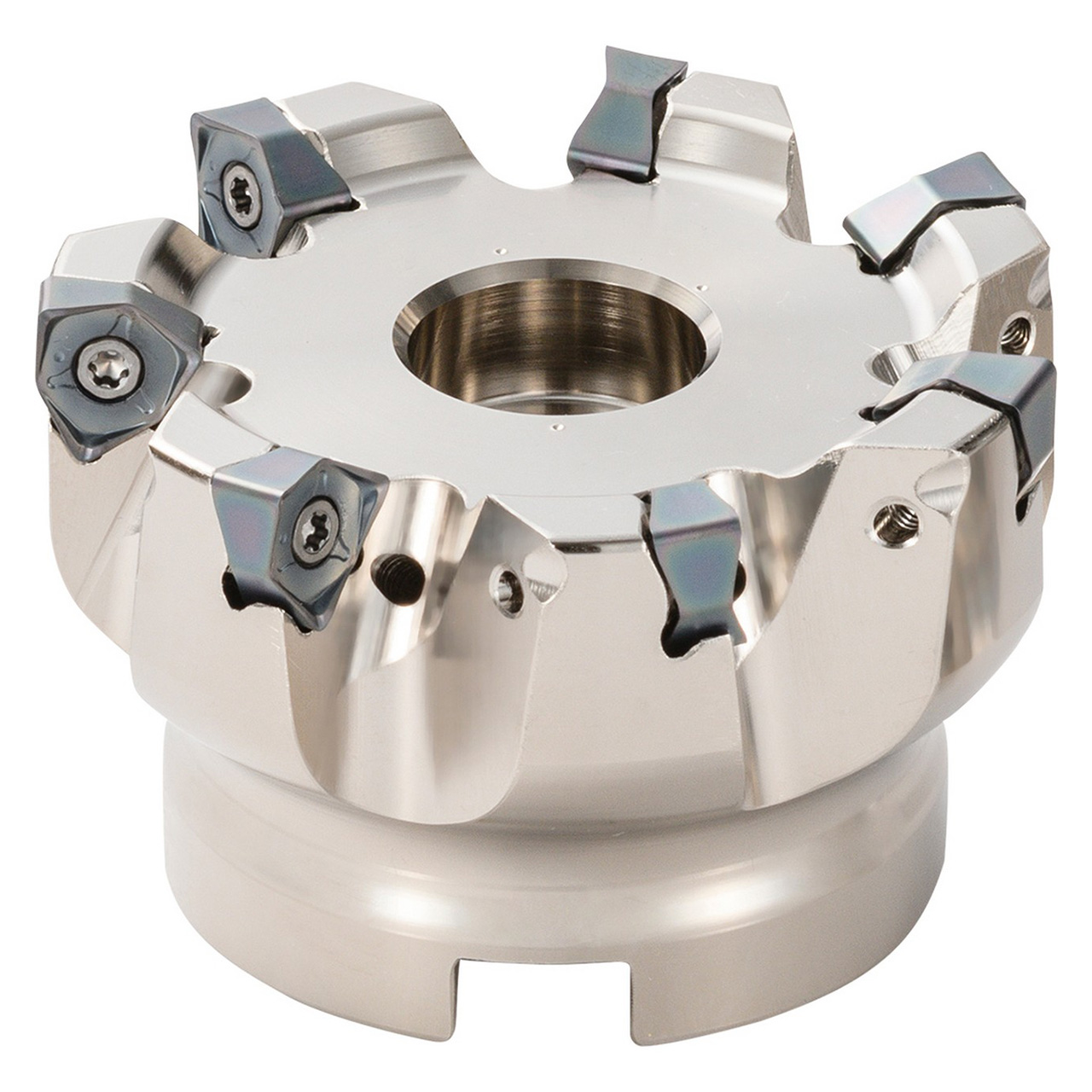

Features:
| EDP Number | THN08515 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969" |
| Maximum Depth of Cut (mm) | 6mm |
| Cutting Diameter (Decimal Inch) | 3.1496" |
| Cutting Diameter (mm) | 80.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 3.1496" |
| Cutting Diameter Minimum (mm) | 80.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 3.1496" |
| Cutting Diameter Maximum (mm) | 80.00mm |
| Cutting Diameter Maximum (mm) | 1.0000" |
| Connection Bore Diameter (mm) | 25.40mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.7559" |
| Contact Surface Diameter Machine Side (mm) | 70.00mm |
| Tool Entering Angle ( Degree) | 90 Degree |

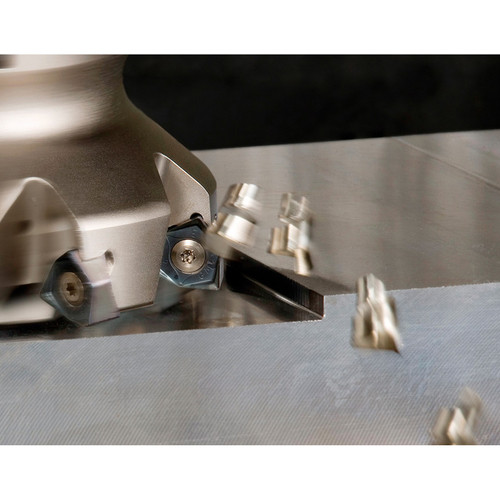

| Application | Facing, Plunging, Shouldering, Slotting |
| Coolant Through (Yes/No) | Yes |
| Cutter Pitch | Coarse Pitch |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 7 |
| Number of Inserts | 7 |
