Features:

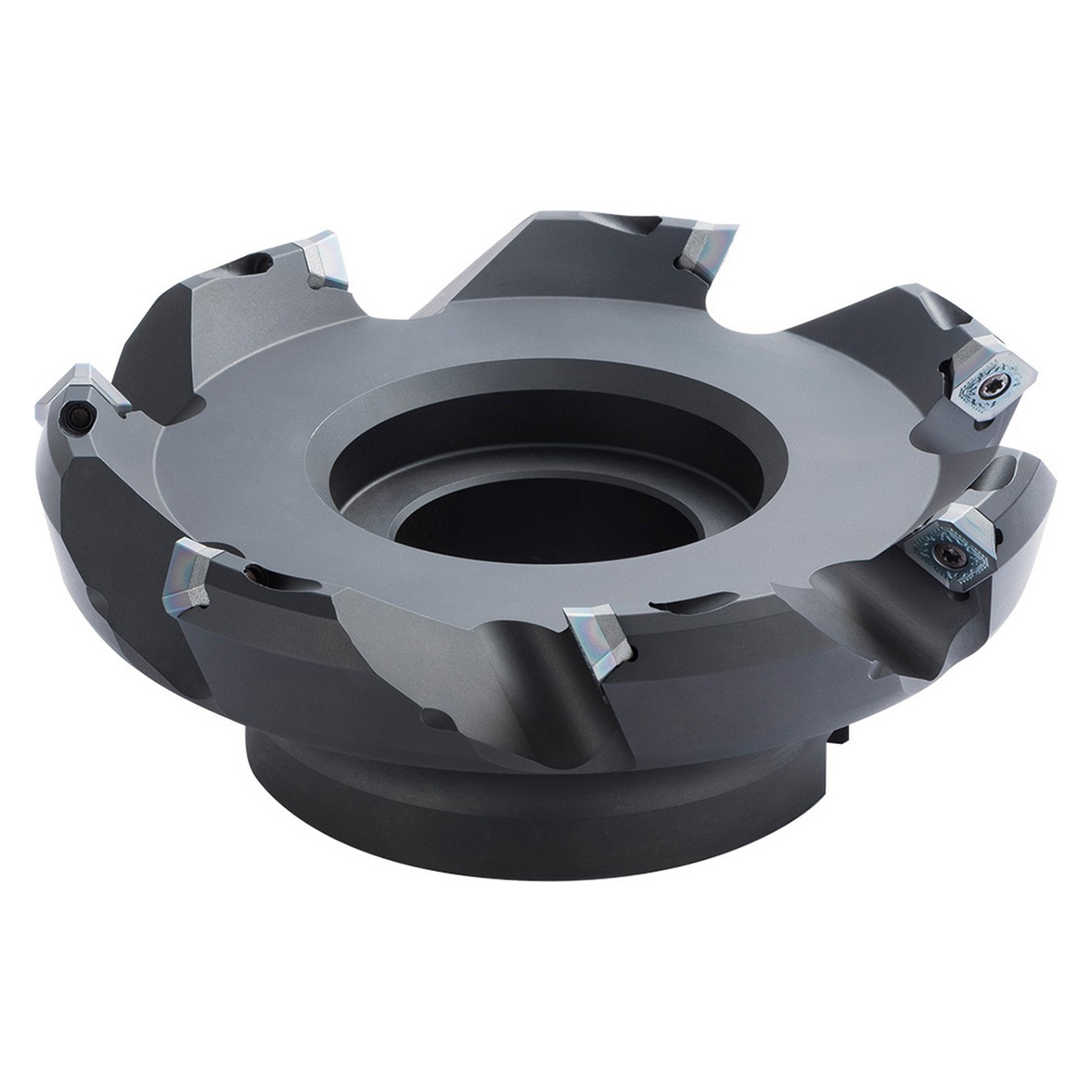

- 45 Degree Lead angle finishing face mill
- Longer tool life by reducing front edge runout
Product Specifications
| EDP Number | THN08590 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362" |
| Maximum Depth of Cut (mm) | 8.00mm |
| Cutting Diameter (Decimal Inch) | 7.8740 - 8.2165" |
| Cutting Diameter (mm) | 200.00 - 208.70mm |
| Cutting Diameter Minimum (Decimal Inch) | 7.8740" |
| Cutting Diameter Minimum (mm) | 200.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 8.2165" |
| Cutting Diameter Maximum (mm) | 208.70mm |
| Cutting Diameter Maximum (mm) | 1.8752" |
| Connection Bore Diameter (mm) | 47.63mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 5.5906" |
| Contact Surface Diameter Machine Side (mm) | 142.00mm |
| Tool Entering Angle ( Degree) | 45 Degree |
| Application | Chamfering, Facing |
| Cutter Pitch | Coarse Pitch |
| Hand | Left Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 8 |
| Number of Inserts | 8 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
8-7/32"
Cutting Diameter (Decimal Inch):
8.2165"
Cutting Diameter (mm):
208.70mm
Maximum Depth of Cut (Inch):
15/64"
Maximum Depth of Cut (Decimal Inch):
0.2362"
Maximum Depth of Cut (mm):
6mm
Arbor Hole Diameter (Inch):
1-7/8"
Arbor Hole Diameter (Decimal Inch):
1.8752"
Arbor Hole Diameter (mm):
47.63mm
Series:
MFSE;Cutter Style=MFSE"
Number of Cutter Inserts:
8
