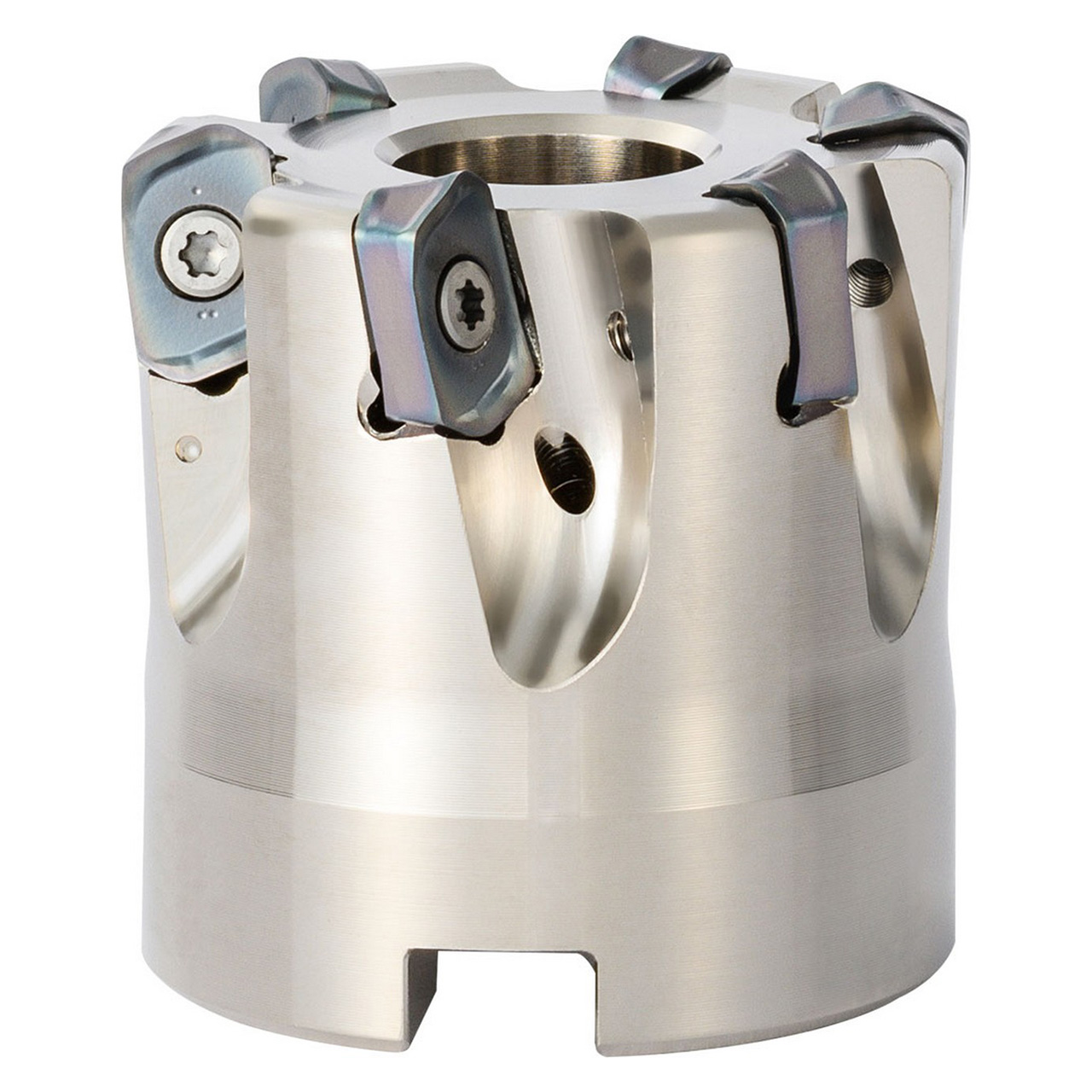

Kyocera Precision Tools THN08631 | MFH040R045TM 1.1417-1.5748" Diameter 5 Flute Steel Indexable High-Feed Face Mill

$479.33
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
1-37/64"
Cutting Diameter (Decimal Inch):
1.5748"
Cutting Diameter (mm):
40.00mm
Maximum Depth of Cut (Inch):
3/32"
Maximum Depth of Cut (Decimal Inch):
0.0984"
Maximum Depth of Cut (mm):
2.5mm
Arbor Hole Diameter (Inch):
5/8"
Arbor Hole Diameter (Decimal Inch):
0.6299"
Arbor Hole Diameter (mm):
16.00mm
Series:
MFHM;Cutter Style=MFH"
Number of Cutter Inserts:
5
SKU:
23234107
Weight:
0.95 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Large D.O.C. dramatically improves machining efficiency
  • Excellent performance in a wide range of applications, including automotive parts, difficult-to-cut materials, and molds
  • Achieves high efficiency machining in various shouldering, slotting, helical milling, and ramping applications
  • Convex cutting edge design reduces impact when entering workpiece

Product Specifications
EDP NumberTHN08631
Maximum Depth of Cut (Decimal Inch)0.0984"
Maximum Depth of Cut (mm)8.00mm
Cutting Diameter (Decimal Inch)1.1417 - 1.5748"
Cutting Diameter (mm)29.00 - 40.00mm
Cutting Diameter Minimum (Decimal Inch)1.1417"
Cutting Diameter Minimum (mm)29.00mm
Cutting Diameter Maximum (Decimal Inch)1.5748"
Cutting Diameter Maximum (mm)40.00mm
Cutting Diameter Maximum (mm)0.6299"
Connection Bore Diameter (mm)16.00mm
Contact Surface Diameter Machine Side (Decimal Inch)1.4961"
Contact Surface Diameter Machine Side (mm)38.00mm
Tool Entering Angle ( Degree)90 Degree
ApplicationHelical Milling | High Feed | Ramping | Shouldering
Coolant Through (Yes/No)Yes
Cutter PitchStandard Pitch
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes5
Number of Inserts5
