Features:
| EDP Number | THN08634 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984" |
| Maximum Depth of Cut (mm) | 8.00mm |
| Cutting Diameter (Decimal Inch) | 1.5354 - 1.9685" |
| Cutting Diameter (mm) | 39.00 - 50.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 1.5354" |
| Cutting Diameter Minimum (mm) | 39.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 1.9685" |
| Cutting Diameter Maximum (mm) | 50.00mm |
| Cutting Diameter Maximum (mm) | 0.8661" |
| Connection Bore Diameter (mm) | 22.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.8504" |
| Contact Surface Diameter Machine Side (mm) | 47.00mm |
| Tool Entering Angle ( Degree) | 90 Degree |

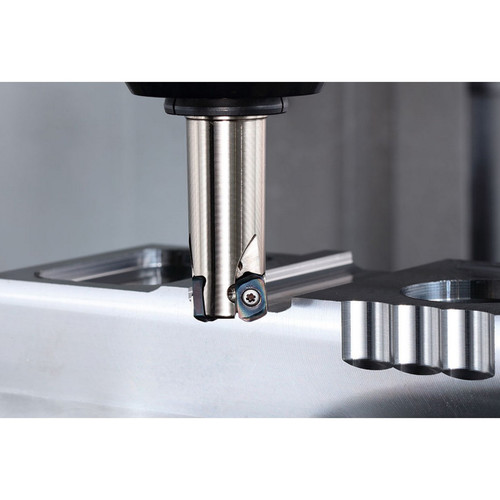

| Application | Helical Milling | High Feed | Ramping | Shouldering |
| Coolant Through (Yes/No) | Yes |
| Cutter Pitch | Standard Pitch |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 7 |
| Number of Inserts | 7 |
