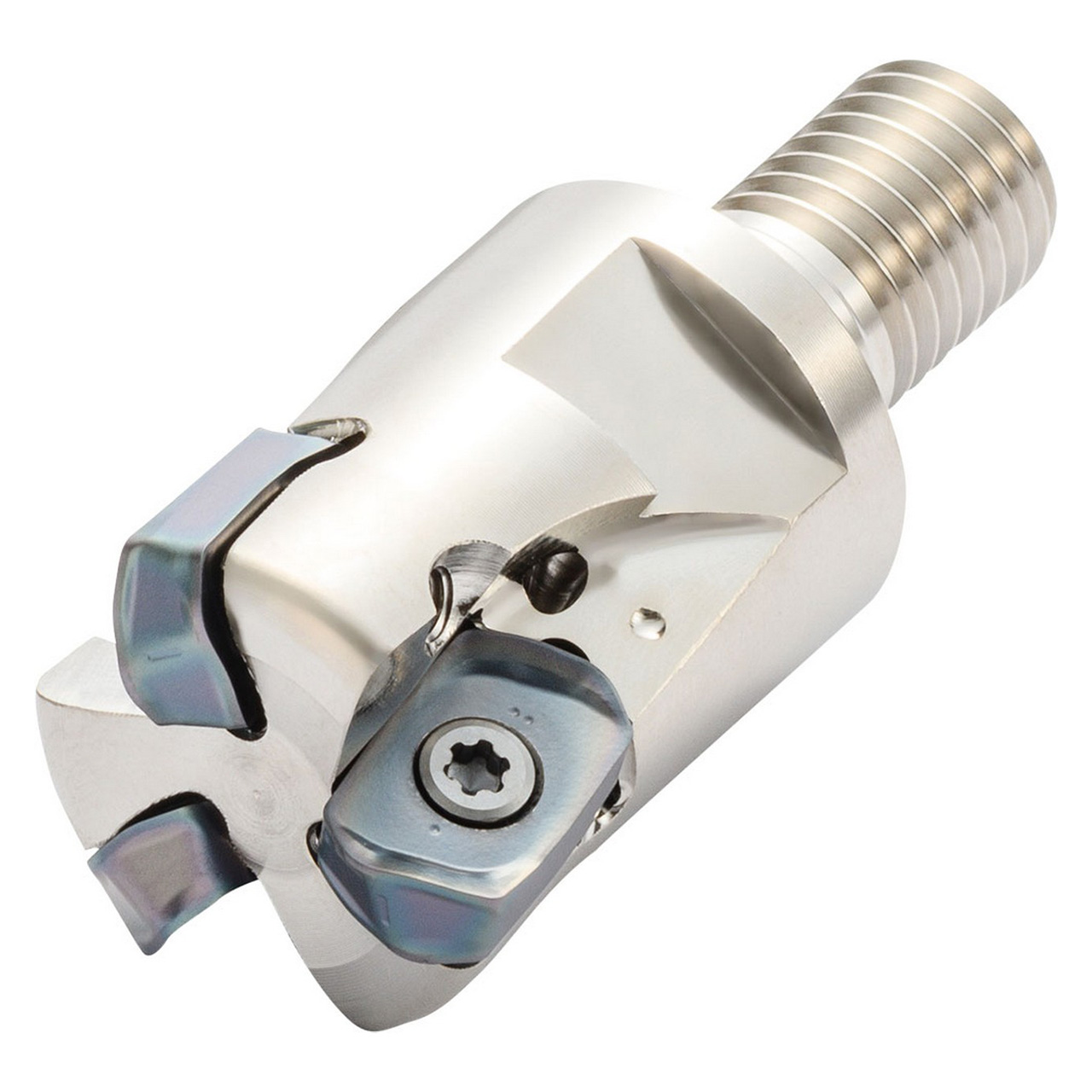

Kyocera Precision Tools THN08678 | MFH1000M12043T 0.567-1.000" Diameter x 0.748" Shank Height 3 Flute Steel High-Feed End Mill

SKU: 23234142 Weight: 0.46 LBS Minimum Purchase: 1 unit
UPC:
$512.67 $425.52
(You save $87.15)
Shipping: Free Shipping

About This Item

Features:

  • Large D.O.C. dramatically improves machining efficiency
  • Excellent performance in a wide range of applications, including automotive parts, difficult-to-cut materials, and molds
  • Achieves high efficiency machining in various shouldering, slotting, helical milling, and ramping applications
  • Convex cutting edge design reduces impact when entering workpiece

Product Specifications
EDP NumberTHN08678
Maximum Depth of Cut (Decimal Inch)0.0984"
Maximum Depth of Cut (mm)15.00mm
Cutting Diameter (Decimal Inch)0.5669 - 1.0000"
Cutting Diameter (mm)14.40 - 25.40mm
Cutting Diameter Minimum (Decimal Inch)0.5669"
Cutting Diameter Minimum (mm)14.40mm
Cutting Diameter Maximum (Decimal Inch)1.0000"
Cutting Diameter Maximum (mm)25.40mm
Connection Diameter (Decimal Inch)0.4921"
Connection Diameter (mm)12.50mm
Contact Surface Diameter Machine Side (Decimal Inch)0.9055"
Contact Surface Diameter Machine Side (mm)23.00mm
Shank Height (Decimal Inch)0.7480"
Shank Height (mm)19.00mm
Tool Entering Angle ( Degree)90 Degree
ApplicationHelical Milling | High Feed | Ramping | Shouldering | Slotting
Coolant Through (Yes/No)Yes
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes3
Number of Inserts3
Shank TypeModular Connection
