Features:

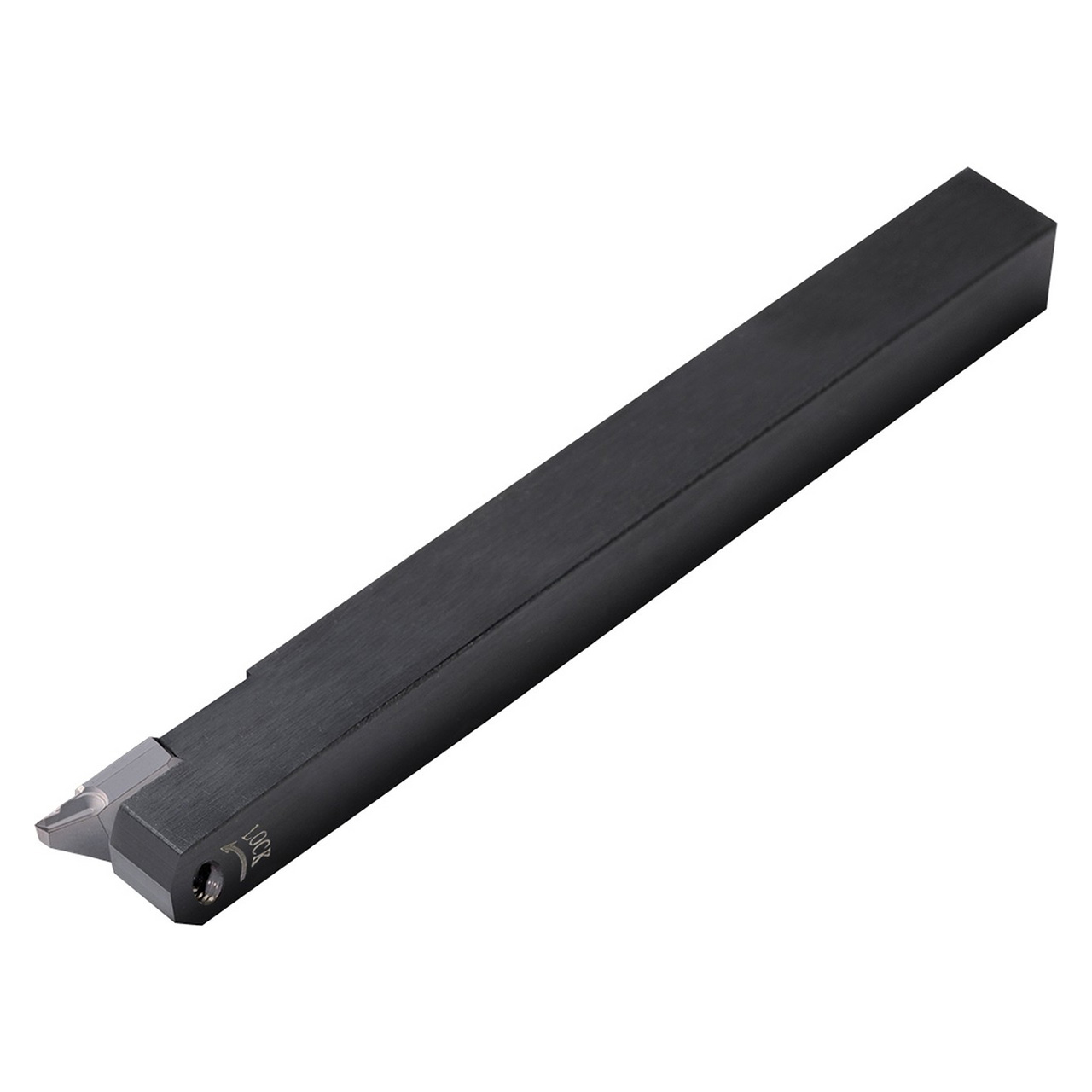

- Left-Hand KTKF toolholder for small parts machining
- Application : cut-off, turning, threading
- Clamp screw insert holding design
- Compatible with Left-Hand TKF16L inserts
Product Specifications
| EDP Number | THP01817 |
| Maximum Depth of Cut (mm) | 10.00mm |
| Shank Width (mm) | 12.00mm |
| Max Depth of Cut (Decimal Inch) | 0.3150" |
| Max Depth of Cut (mm) | 8.00mm |
| Maximum Cut-Off Diameter (Decimal Inch) | 0.6299" |
| Maximum Cut-Off Diameter (mm) | 16.00mm |
| Cutting Width (Decimal Inch) | 0.0591 - 0.0787" |
| Cutting Width (mm) | 1.50 - 2.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.0591" |
| Cutting Width Minimum (mm) | 1.50mm |
| Cutting Width Maximum (Decimal Inch) | 0.0787" |
| Cutting Width Maximum (mm) | 2.00mm |
| Shank Height (Decimal Inch) | 0.4724" |
| Shank Height (mm) | 12.00mm |
| Application | Back Turning | Cut-Off | External Threading | Small Parts Machining |
| Hand | Left Hand |
| Insert Holding Method | Screw |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Hand of Holder:
Left-Hand
Maximum Depth of Cut (Decimal Inch):
0.3150"
Maximum Depth of Cut (mm):
8.00mm
Maximum Workpiece Diameter (Decimal Inch):
0.6299"
Maximum Workpiece Diameter (mm):
16.00mm
Series:
KTKF;Toolholder Style=KTKF"
Shank Width/Diameter (Decimal Inch):
0.4724"
Shank Width/Diameter (mm):
12.00mm
Shank Height (Decimal Inch):
0.4724"
Shank Height (mm):
12.00mm
