Features:

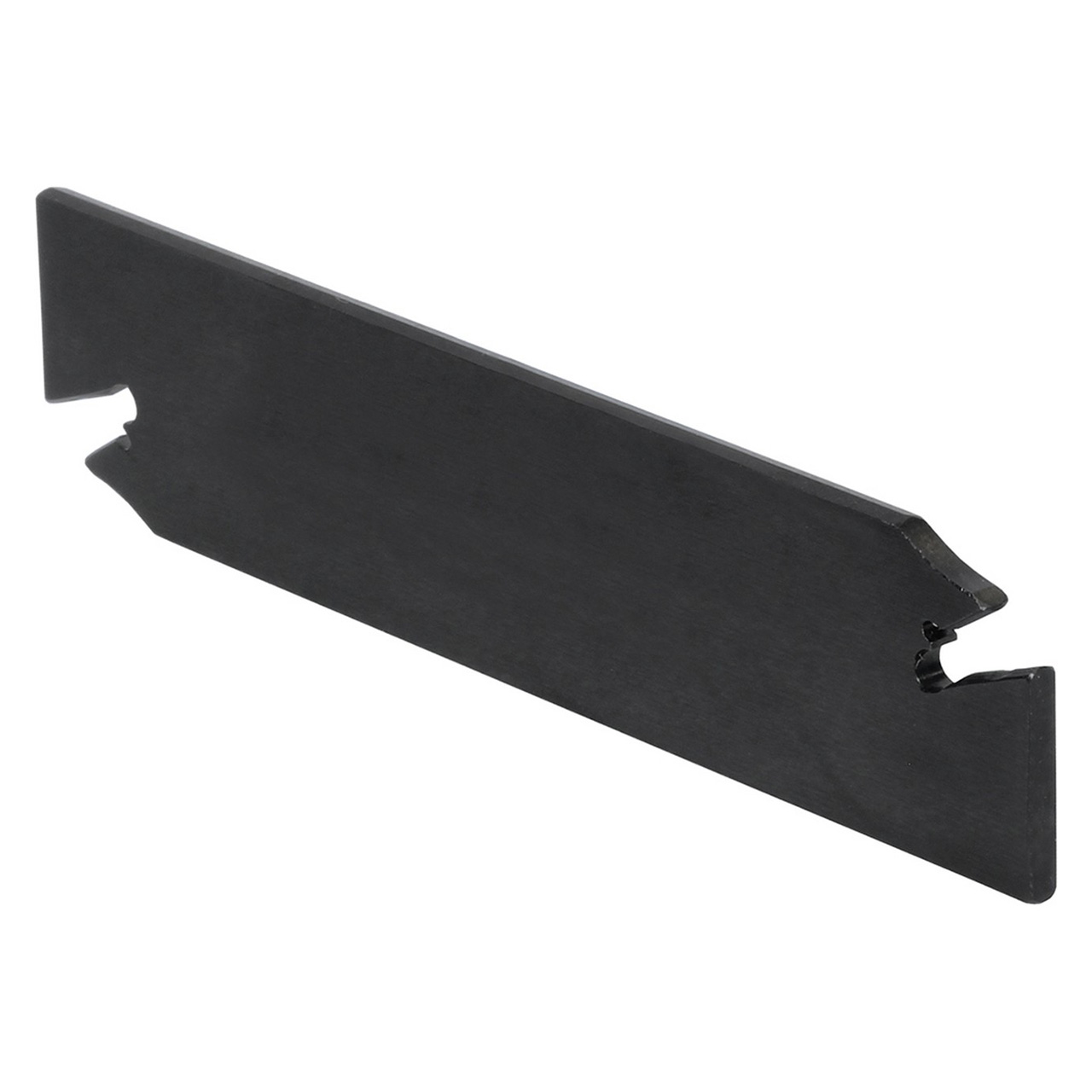

- Neutral KTKB series, cut-off blade
- Maximum cut-off diameter 40mm
- Compatible with KTKTB19 tool blocks and TKN2, TKN2.4, TKN2-P, TK2, TK2.4, TK2-P inserts
Product Specifications
| EDP Number | THP05110 |
| Maximum Depth of Cut (mm) | 10.00mm |
| Maximum Cut-Off Diameter (Decimal Inch) | 1.5748" |
| Maximum Cut-Off Diameter (mm) | 40.00mm |
| Cutting Width (Decimal Inch) | 0.0866 - 0.0945" |
| Cutting Width (mm) | 2.20 - 2.40mm |
| Cutting Width Minimum (Decimal Inch) | 0.0866" |
| Cutting Width Minimum (mm) | 2.20mm |
| Cutting Width Maximum (Decimal Inch) | 0.0945" |
| Cutting Width Maximum (mm) | 2.40mm |
| Application | Cut-Off |
| Hand | Neutral |
| Insert Holding Method | Self-Clamp |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Direction:
Neutral
Blade Style:
KTKB-S
