Features:

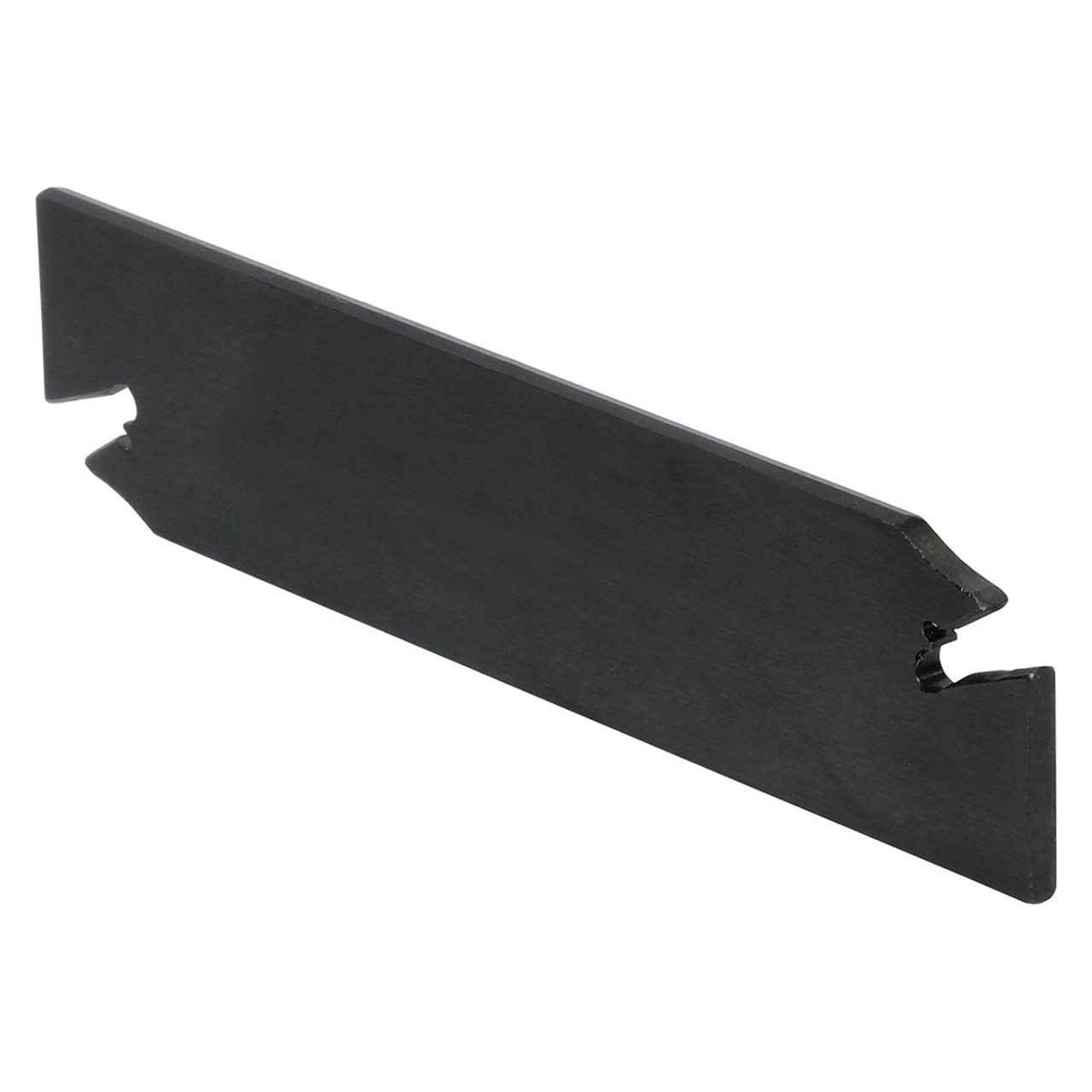

- Right-Hand KTKB series, cut-off blade
- Maximum cut-off diameter 120mm
- Compatible with KTKTB32 tool blocks and TKN9 inserts
Product Specifications
| EDP Number | THP05247 |
| Maximum Depth of Cut (mm) | 6.00mm |
| Maximum Cut-Off Diameter (Decimal Inch) | 4.7244" |
| Maximum Cut-Off Diameter (mm) | 120.00mm |
| Cutting Width (Decimal Inch) | 0.3780" |
| Cutting Width (mm) | 9.60mm |
| Cutting Width Minimum (Decimal Inch) | 0.3780" |
| Cutting Width Minimum (mm) | 9.60mm |
| Cutting Width Maximum (Decimal Inch) | 0.3780" |
| Cutting Width Maximum (mm) | 9.60mm |
| Application | Cut-Off |
| Hand | Right Hand |
| Insert Holding Method | Self-Clamp |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Direction:
Right-Hand
Blade Style:
KTKB-S
